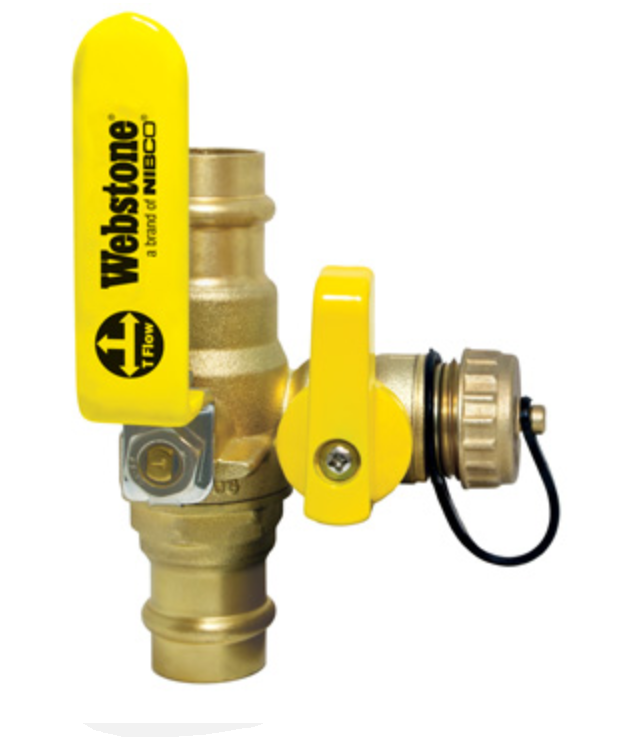

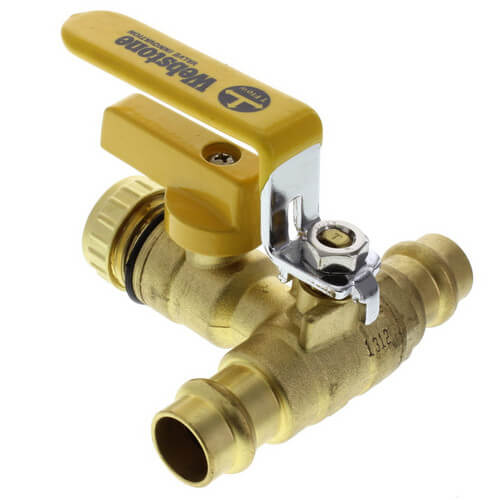

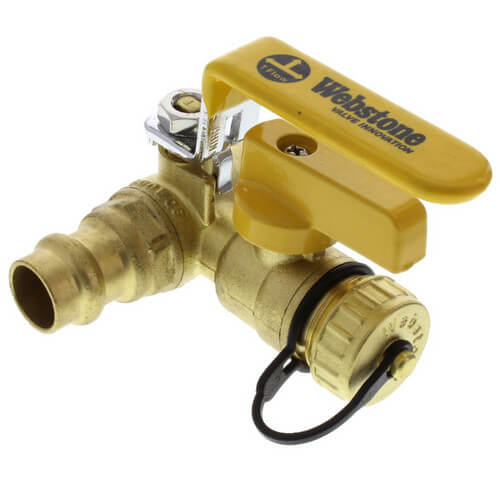

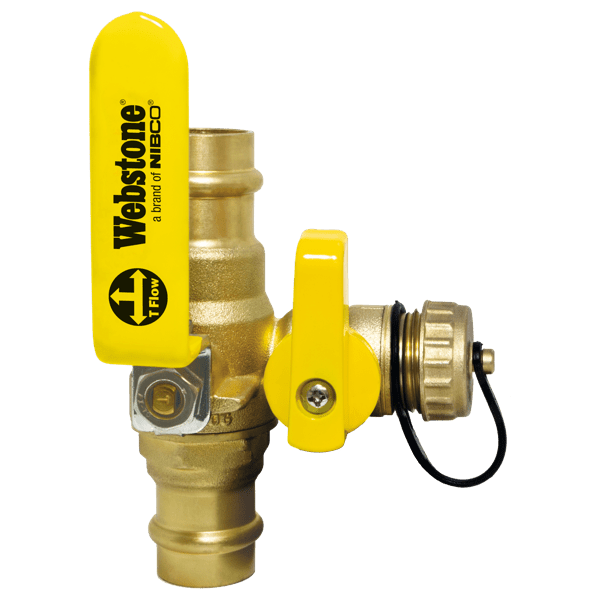

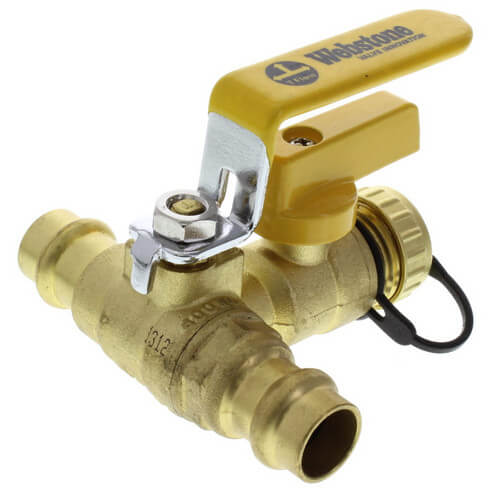

NIBCO H-80612W 1/2-in. Press Full Port Ball Valve with Drain and Reversible Handle

Product Description

The NIBCO H-80612W is a 1/2-inch full port ball valve made from lead-free forged brass. This valve is designed with press connections for easy installation. It features a reversible handle, allowing for versatile operation, and includes a hi-flow hose drain for effective isolation and draining of sections within your piping system.

• Constructed from lead-free forged brass.
• Features a hi-flow hose drain with cap and tether.
• Designed with adjustable packing glands and a blowout-proof stem.

Product Highlights

This valve is suitable for gas, oil, and water applications. It ensures reliable performance and compliance with NSF and ANSI certifications.

Product Information

Standard Information

• MPN: H-80612W
• Brand: NIBCO

Technical Specifications

• Valve Size: 1/2 in
• Connection Type: Press x Press
• Port Type: Full Port
• Material: Forged Brass
• Handle Style: Lever
• Maximum Temperature: 250°F
• WOG Pressure Rating: 250 PSIG
• Valve Stem: Blowout-proof
• Recommended Valve Application: Gas, Oil, Water
• Approximate Height: 2.19 inches
• Approximate Length: 2.0 inches
• Approximate Width: 3.75 inches
• Approximate Weight: 0.75 pounds
• Certifications: NSF ANSI
• Lead Free: Yes
