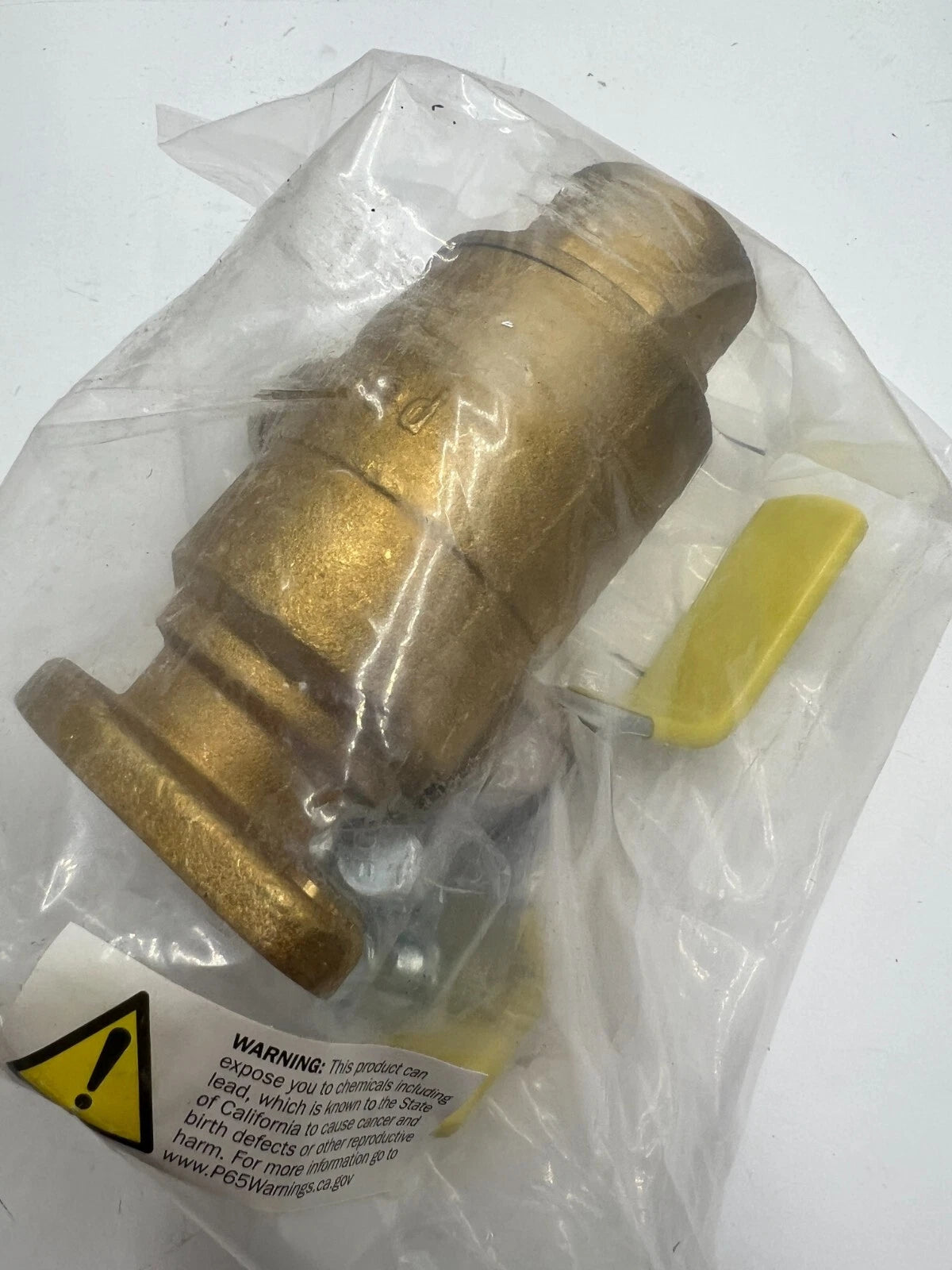

NIBCO H-50416 Isolator Uni-Flange Ball Valve

Product Description

The NIBCO H-50416 is an isolator uni-flange ball valve made for use with circulator pumps. This valve features a sweat x flanged connection and a T-handle operator. It is made of brass with a steel handle. The valve is built with a blowout-proof stem and has an adjustable packing gland. It can handle water or glycol mixtures for residential, commercial, or industrial applications.

• Features a sweat x flanged connection.
• Equipped with a T-handle operator.
• Built with a brass housing material.

Product Highlights

This valve is designed for sealing and controlling flow in various plumbing applications. Its robust construction allows for a reliable performance under pressure.

Product Information

Standard Information

• Brand: NIBCO
• UPC: 0018394594166

Technical Specifications

• MPN: H-50416
• Nominal Size: 1-1/2 inches
• Connection Type: Sweat x Flanged
• Opening Size: 1-1/2 inches
• Operator Type: T-Handle
• Pressure Rating: 600 lb/sq-in
• WOG Rating: 600 psi
• Temperature Rating: 100 degrees F
• Material: Brass
• Housing Material: Brass
• Handle Material: Steel
• Packing Material: Brass
• Seal Material: PTFE
• Seat Material: PTFE
• Stem Material: Brass
• Trim Material: Brass
• Dimensions: 5-13/16 inches L
