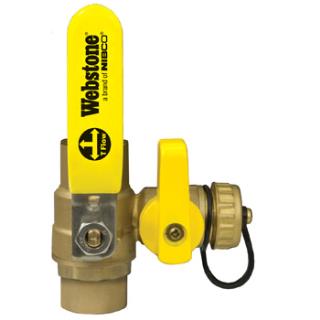

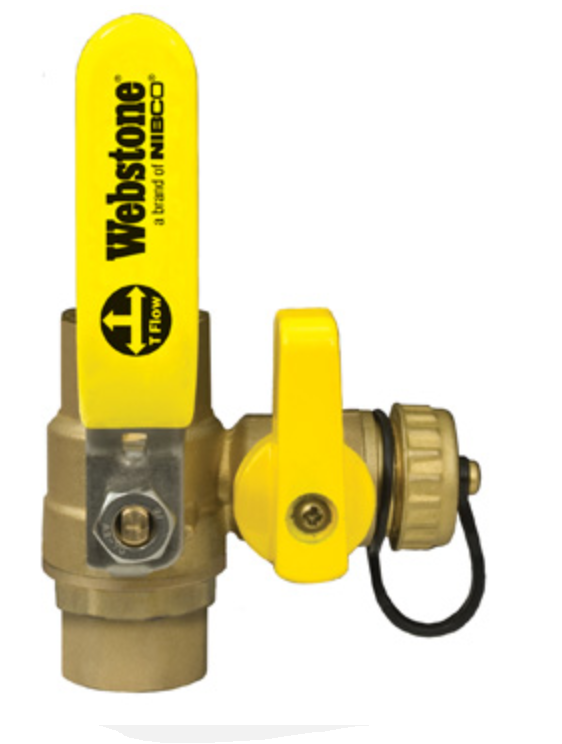

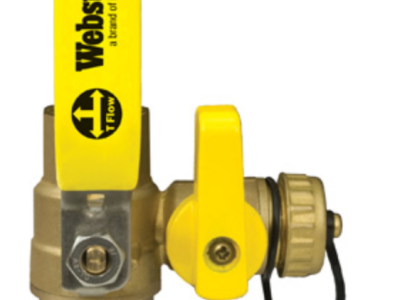

NIBCO H-40614 1-Inch Brass Ball Valve with Drain

Product Description

The NIBCO H-40614 is a one-inch brass ball valve designed for gas, oil, and water applications. This valve features a forged brass body and includes female pipe thread connections on both ends, allowing for easy installation. The product comes with a hose thread drain, complete with a cap and tether for convenience.

• Full port design for minimal flow restriction.
• Reversible handle for operational flexibility.
• High flow hose thread drain included.

Product Highlights

This valve is built to handle various fluids in non-potable systems thanks to its heavy-duty design and high pressure rating.

Product Information

Standard Information

• Brand: NIBCO
• MPN: H-40614

Technical Specifications

• Material: Forged Brass
• End Connection 1: FPT
• End Connection 2: FPT
• End Connection 3: MGHT
• Valve Size: 1 inch
• Bore: Full Port
• Pressure Rating: 600 PSIG
• Maximum Temperature: 350
• Valve Type: Ball Valve
• Valve Operator: Reversible Handle
• Valve Seat Material: PTFE
• Country of Origin: China
• Collection: H-x061 Series
• Approximate Weight: 1.10 pounds
