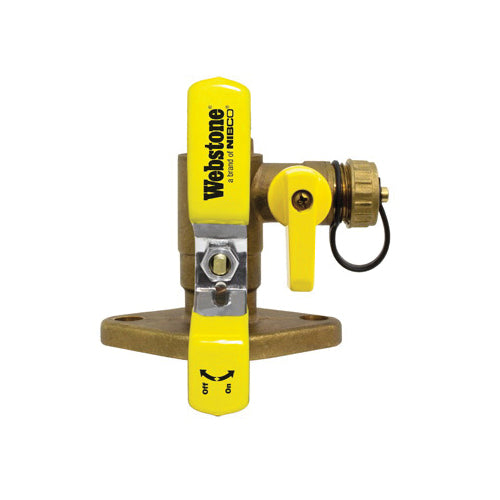

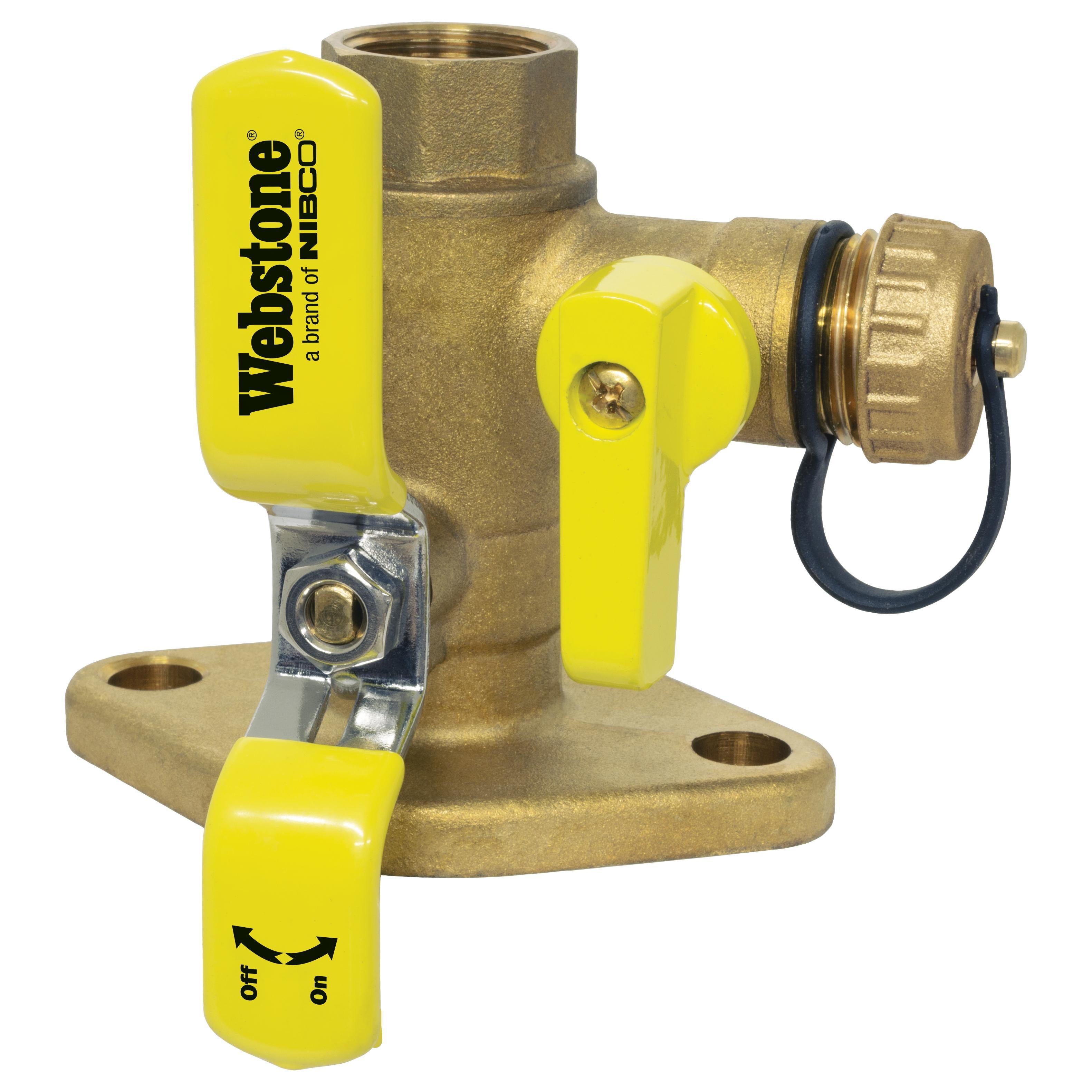

NIBCO H-40413 Uni-Flange Ball Valve

Product Description

The NIBCO H-40413 is a forged brass uni-flange ball valve suitable for residential, commercial, or industrial uses with water or glycol mixtures. This model features a blow-out proof stem, an adjustable packing gland, and a conical inlet that reduces turbulence.

• Forged brass body construction
• Compatible with water or glycol mixtures
• Blow-out proof stem for added safety

Product Highlights

This valve ensures a reliable flow control in various settings. It is built with a full port design that allows for maximum flow and efficiency.

Product Information

Standard Information

• MPN: H-40413
• Brand: NIBCO

Technical Specifications

• Series: 4041
• Nominal Size: 3/4 inch
• End Style: IPS x Flange
• Pressure Rating: 600 psi WOG
• Temperature Rating: 100°F
• Maximum Temperature: 350°F
• Body Material: Forged Brass
• Ball Material: HCP Brass
• Trim Material: Brass Stem and PTFE Seat
• Softgoods Material: PTFE
• Port Type: Full
• Actuator Type: Lever Operated
• Media: Water/Glycol Mixture
• Inlet to Outlet Length: 3-9/16 inches
• Top to Inlet Center: 2-1/4 inches
• NSF Certified: Yes
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• Domestic/Import: Import
