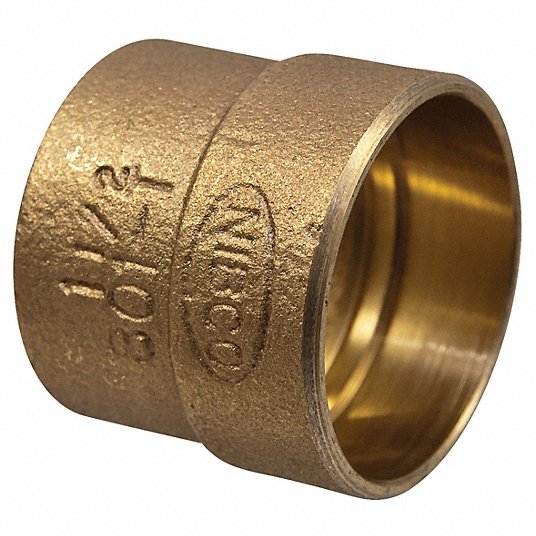

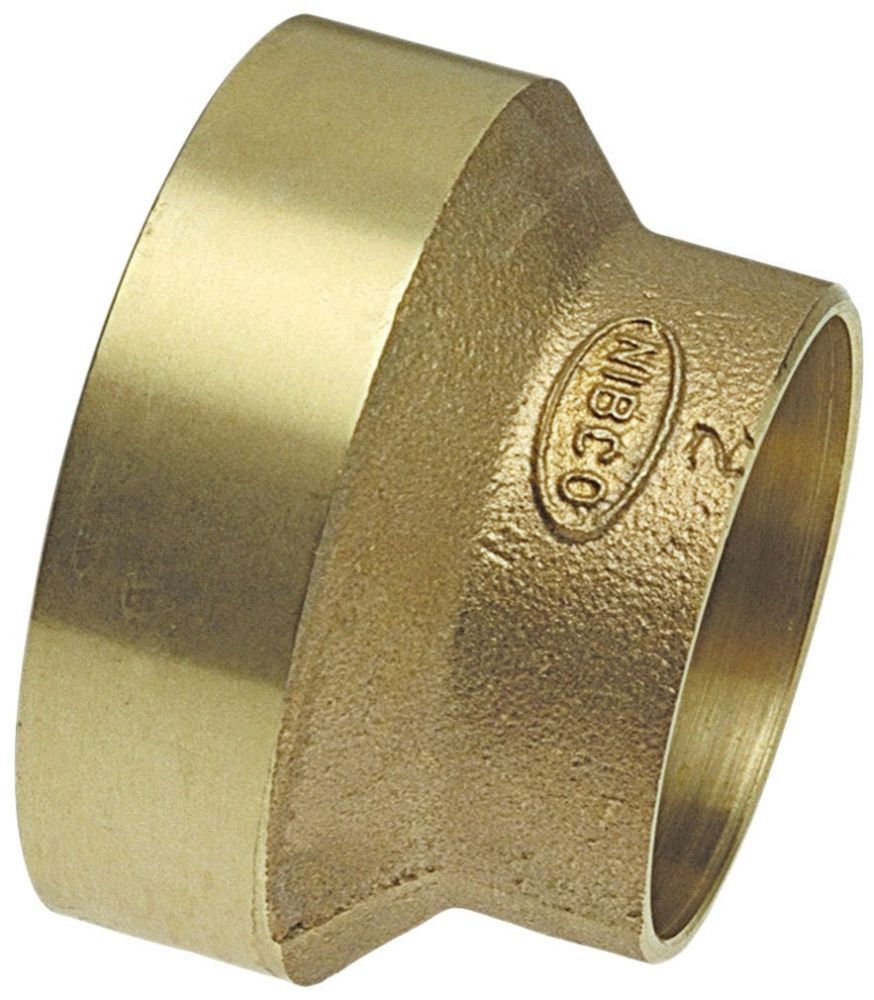

Nibco E009800 solder dwv reducing coupling 3 in x 2 in

Product Description

The NIBCO E009800 solder DWV reducing coupling connects larger size tubes to smaller size tubes. This bronze fitting is designed for drain, vent, and waste applications, as well as non-potable water systems. It features cup connections for copper tubes, ensuring a permanent, leaktight connection through heating or soldering.

• Constructed from durable bronze material.
• Ideal for drain, vent, and waste applications.
• Complies with ASME/ANSI B16.22, MSS SP-104, NSF/ANSI/CAN-61 standards.

Product Highlights

The NIBCO solder DWV reducing coupling is ideal for connecting different sized copper tubes in DWV systems, providing a reliable and code-compliant connection.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: E009800
• Country of Origin: United States

Technical Specifications

• Item: Solder DWV Couplings
• Application: Drain, Vent, Waste, Non-Potable Water
• For Tube OD: 3 3/8 in x 2 3/8 in
• Fitting Shape: Straight with Dimple Center Stop
• Stop and Shape: Straight Reducing Coupling
• Connection Type: Cup x Cup
• Copper Tube Size: 3 in x 2 in
• Fitting Material: Bronze
• End Connection Type: Cup
• Compatible Tube Material: Copper
• Fitting Copper Tube Size: 2 in
• For Tube Outside Diameter: 2 3/8 in, 3 3/8 in
• Fitting Side A Connection Type: Cup
• Fitting Side B Connection Type: Cup
• Fitting Side A Copper Tube Size: 3 in
• Fitting Side B Copper Tube Size: 2 in
• Fitting Side A Tube Outer Diameter: 3 3/8 in
• Fitting Side B Tube Outer Diameter: 2 3/8 in
• Country of Origin (subject to change): United States
• UPC Code: 039923478061
• All Type of Item: Fitting
• Description: 801R 3X2 CXC DWV COUP CAST
• Global Item Classification Code: 10004024, Valves/Fittings - Water
• Type of Coupling: Reducing Size
• Type: Coupling
• Weight: 0.7 lb
• Size: 3 x 2
• Nominal Size 1: 3
• Nominal Size 2: 2
• Temperature Range: -20 °F to 400 °F
• Side A Connection: Cup
• Side A Compatible Tube Outer Diameter: 3-3/8 in
• Side B Connection: FTG
• Side C Compatible Tube Outer Diameter: 2-3/8 in
• Line: Standards
• Standards: ASME/ANSI B16.22; MSS SP-104; NSF/ANSI/CAN-61
• Brand Name: Nibco
• Mfg Part#: E009800
• CPS SKU: 1811
• UPC: 039923478061
• Master UPC (14): 03992347806
• Vendor UPC (12): 039923478061
• Fitting Side 2 Connection Type: FTG
• Material Grade: C84400
• Fitting Features: Drain, Vent
• Operating Temperature - Maximum: 400 Degrees F
• Operating Temperature - Minimum: -20 Degrees F
• Connector Type: Coupling
• Includes Center Stop: Dimple Center Stop
• Fitting Side 1 Connection Type: Cup
• Height (cm): 5.33
• Length (cm): 8.33
• Width (cm): 8.33
• Country Of Origin: MX
• Weight (kg): 0.315
