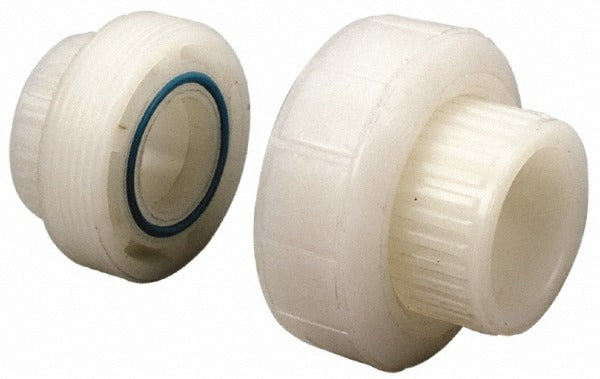

Nibco CE04150 Pvdf Socket Union 1-1/2 in Schedule 80

Product Description

The NIBCO CE04150 is a 1-1/2 inch PVDF plastic socket union rated for Schedule 80 service. It connects two sections of plastic pipe using a slip socket on one end and a slip-ring female iron pipe thread (SR FIPT) on the other, allowing the union to be broken and reconnected without cutting pipe. PVDF (polyvinylidene fluoride) offers strong resistance to a broad range of aggressive chemicals, UV exposure, and elevated temperatures, making it well suited for demanding industrial and process piping applications. Licensed plumbers and pipefitters are the primary installers of this fitting.

This union is intended for use in chemical process lines, high-purity water systems, and industrial fluid handling installations where metal fittings are not appropriate due to corrosion concerns. The Schedule 80 pressure rating makes it suitable for higher-pressure service runs. The SR FIPT end allows connection to a threaded counterpart or system stub without cementing, simplifying future maintenance access or component replacement in chemical feed, water treatment, and similar process systems.

Key Features

• PVDF construction provides excellent chemical and UV resistance for industrial piping service
• Schedule 80 pressure rating supports higher-pressure process applications
• Slip socket inlet for solvent-cement joining to Schedule 80 PVDF pipe
• SR FIPT outlet allows threaded connection and tool-free union breakout
• Union design enables disassembly and reassembly without cutting or re-cementing pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch Schedule 80 PVDF plastic piping systems using solvent-cement and threaded connections.

Installation Notes

Installation of Schedule 80 PVDF socket unions is typically performed by licensed plumbers or industrial pipefitters following applicable IPC and local mechanical code requirements. Shut off and depressurize the piping system completely before disassembling or installing any union. Use only PVDF-compatible solvent cement on the socket end and follow the cement manufacturer's cure time requirements before returning the line to service. Do not over-torque the threaded SR FIPT connection, as PVDF is sensitive to mechanical stress cracking under excessive fastening force.
