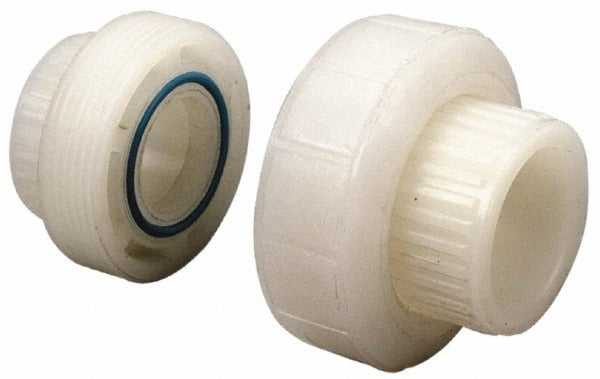

Nibco CE04050 Pvdf Socket Union 3/4 Inch Schedule 80

Product Description

The NIBCO CE04050 is a 3/4 inch Schedule 80 PVDF socket union designed for high-purity and corrosive-fluid piping systems. PVDF (polyvinylidene fluoride) is a chemically resistant thermoplastic widely specified in industrial, chemical processing, and plumbing applications where aggressive media or elevated temperatures rule out standard PVC or CPVC. This union features slip-by-SR FIPT end connections and is rated for operating temperatures from 73 degrees F up to 280 degrees F. It is installed by licensed plumbers, pipefitters, and industrial maintenance technicians requiring a reliable, removable joint in a plastic piping system.

This union is suited for residential and commercial chemical handling, water treatment, semiconductor manufacturing, and industrial fluid systems using Schedule 80 PVDF piping. It provides a removable, pressure-rated connection point that allows sections of pipe to be disconnected without cutting. Applications include chemical feed lines, deionized water systems, and corrosive drain or process lines where metal fittings are not compatible with the conveyed fluid.

Key Features

• PVDF construction provides excellent chemical and UV resistance for demanding service environments
• Schedule 80 wall thickness delivers higher pressure ratings than Schedule 40 fittings of the same size
• Slip x SR FIPT end connections allow solvent-cement socket joining on one side and threaded engagement on the other
• Rated for continuous service up to 280 degrees F, well above the limits of standard PVC and CPVC fittings
• Meets ASTM D3222 standards for unfilled PVDF plastic materials
• Union design allows the pipe assembly to be broken apart and reassembled without cutting into the line

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF piping systems using 3/4 inch nominal pipe size with socket and SR FIPT connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter familiar with thermoplastic piping systems. Isolate and depressurize the line and drain all fluid before disassembling or installing any union fitting. Use only solvent cements and primers approved for PVDF when making socket (slip) joints, and follow the cement manufacturer's cure time requirements before returning the line to service. Threaded connections should be made with PTFE tape or a thread sealant rated for PVDF and the intended service fluid.
