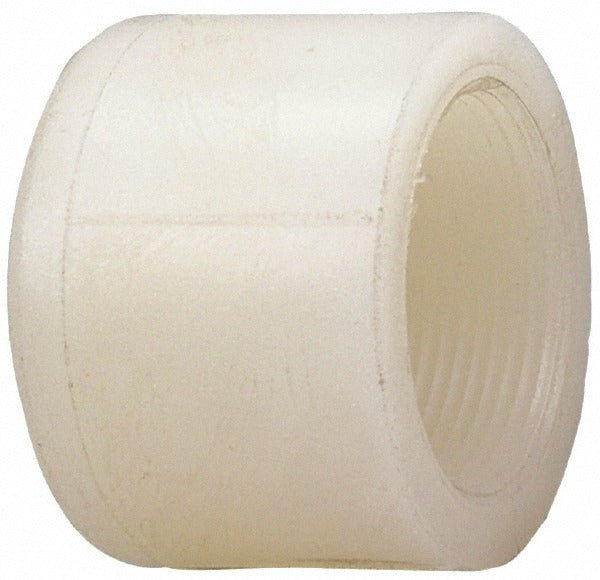

Nibco CE02950 Pvdf Pipe End Cap 2 in Schedule 80 Fipt

Product Description

The NIBCO CE02950 is a 2-inch Schedule 80 PVDF (polyvinylidene fluoride) pipe end cap designed to terminate and seal the open end of a pipe in demanding industrial and chemical process piping systems. Featuring female iron pipe thread (FIPT) end connections, the fitting threads securely onto the pipe end to create a leak-resistant closure. PVDF construction provides excellent resistance to a wide range of aggressive chemicals, high temperatures, and UV exposure, making it a dependable choice where standard PVC or CPVC materials are insufficient. It is installed by plumbers and pipefitters working in chemical processing, water treatment, and industrial facilities.

This end cap is suited for Schedule 80 PVDF piping systems in both commercial and industrial applications. Typical installations include capping branch lines, test ports, or service connections on chemical feed systems, ultrapure water lines, and corrosive fluid handling piping. The 2-inch FIPT connection allows the cap to thread onto a 2-inch male-threaded pipe or fitting without solvent cement, simplifying replacement or temporary closures where the line may need to be reopened.

Key Features

• PVDF construction resists aggressive chemicals, UV radiation, and elevated service temperatures
• Schedule 80 wall thickness provides added pressure capability over standard Schedule 40 fittings
• Female iron pipe thread (FIPT) connection for straightforward threaded installation
• Meets ASTM D3222 material standard for PVDF plastic pipe fittings
• Terminates 2-inch pipe runs cleanly in industrial and chemical process systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch Schedule 80 PVDF threaded piping systems in industrial, chemical process, and water treatment applications.

Installation Notes

This fitting is installed by licensed plumbers or qualified pipefitters. Isolate and depressurize the piping system completely before threading on the cap. Apply an appropriate thread sealant rated for use with PVDF and the specific media being conveyed. Do not use solvent cement on threaded PVDF fittings, and avoid overtightening, which can crack the fitting body.
