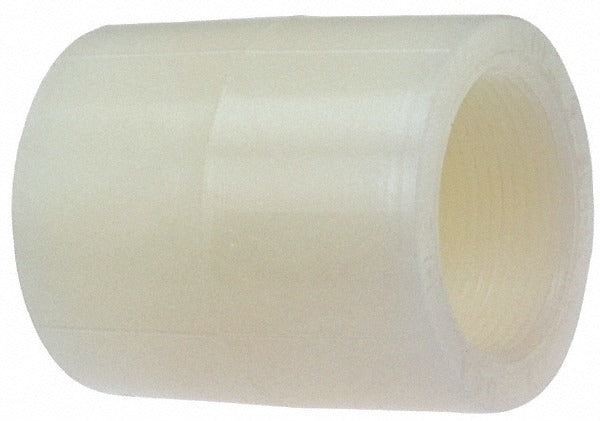

Nibco CE00300 Pvdf Pipe Coupling 3/4 in Sch 80 Fipt

Product Description

The NIBCO CE00300 is a Schedule 80 PVDF pipe coupling designed for joining 3/4-inch threaded pipe sections in demanding fluid-handling systems. PVDF (polyvinylidene fluoride) is a high-performance thermoplastic known for its resistance to a broad range of chemicals, UV exposure, and elevated service temperatures. The FIPT x FIPT end connections allow the coupling to thread directly onto male-threaded pipe or fittings on both ends. This fitting is typically installed by licensed plumbers or industrial piping contractors working on chemical process, high-purity water, or aggressive-media systems where standard PVC or metal fittings are not suitable.

This coupling is suited for Schedule 80 piping installations in residential, commercial, and light industrial settings where chemical resistance and pressure-rated performance are required. The 3/4-inch size fits common branch and main line sizes in chemical feed, deionized water, and similar specialty piping systems. Its FIPT x FIPT configuration makes it a straightforward threaded connection without the need for solvent cement or specialized tooling beyond a pipe wrench and appropriate thread sealant.

Key Features

• PVDF construction provides excellent chemical resistance and UV stability
• Schedule 80 wall thickness for higher pressure ratings compared to Schedule 40
• FIPT x FIPT end connections for direct assembly onto male-threaded pipe
• Meets ASTM D3222 standard for PVDF plastic materials
• 3/4-inch fitting size for common branch and main line piping applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF threaded piping systems using 3/4-inch pipe.

Installation Notes

Installation should be performed by a licensed plumber following applicable IPC or local plumbing code requirements. Shut off and depressurize the system completely before disassembling any existing piping. Use a compatible PTFE thread sealant tape or thread compound rated for PVDF and the specific media being conveyed — do not use sealants that may degrade the fitting material. Avoid overtightening, as PVDF threads can crack under excessive torque.
