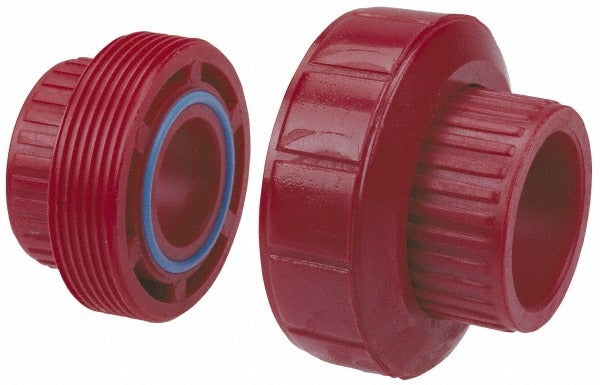

Nibco CD04200 Pvdf Socket Union 2 in Sch 80

Product Description

The NIBCO CD04200 is a 2-inch Schedule 80 PVDF socket union designed for joining and disconnecting sections of plastic piping systems without cutting the line. PVDF (polyvinylidene fluoride) offers outstanding chemical resistance and handles aggressive media that would degrade standard PVC or CPVC fittings. The union features a slip socket on one end and a slip-ring female iron pipe thread (SR FIPT) on the other, allowing a secure, leak-free connection that can be broken apart for maintenance or component replacement. This fitting is used by licensed plumbers and industrial pipefitters working on chemical process, high-purity fluid, and industrial fluid handling systems.

This union is suited for Schedule 80 thermoplastic piping installations in commercial, industrial, and chemical processing environments. The red color coding allows quick visual identification on the line. The SR FIPT end accepts a threaded male adapter, while the slip socket end is solvent-cemented to PVDF pipe. Typical applications include chemical feed lines, semiconductor fabrication water systems, and industrial process piping where corrosion resistance and system integrity are critical.

Key Features

• PVDF construction provides high chemical resistance to acids, bases, and solvents
• Schedule 80 pressure rating for demanding industrial service
• Slip x SR FIPT end connections allow solvent-cement and threaded assembly
• Red color coding for fast identification of PVDF fittings on the line
• Union design enables pipe section removal without cutting

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch Schedule 80 PVDF thermoplastic piping systems using slip socket and female iron pipe thread connections.

Installation Notes

Installation of PVDF Schedule 80 fittings should be performed by a licensed plumber or qualified pipefitter familiar with thermoplastic solvent-cement procedures. Depressurize and drain the line completely before disassembling or installing any union. Use only PVDF-compatible solvent cement on the slip socket end and do not over-torque the threaded SR FIPT connection, as excessive force can crack the fitting body. Local plumbing codes and ASTM standards for thermoplastic pressure piping should be followed throughout installation.
