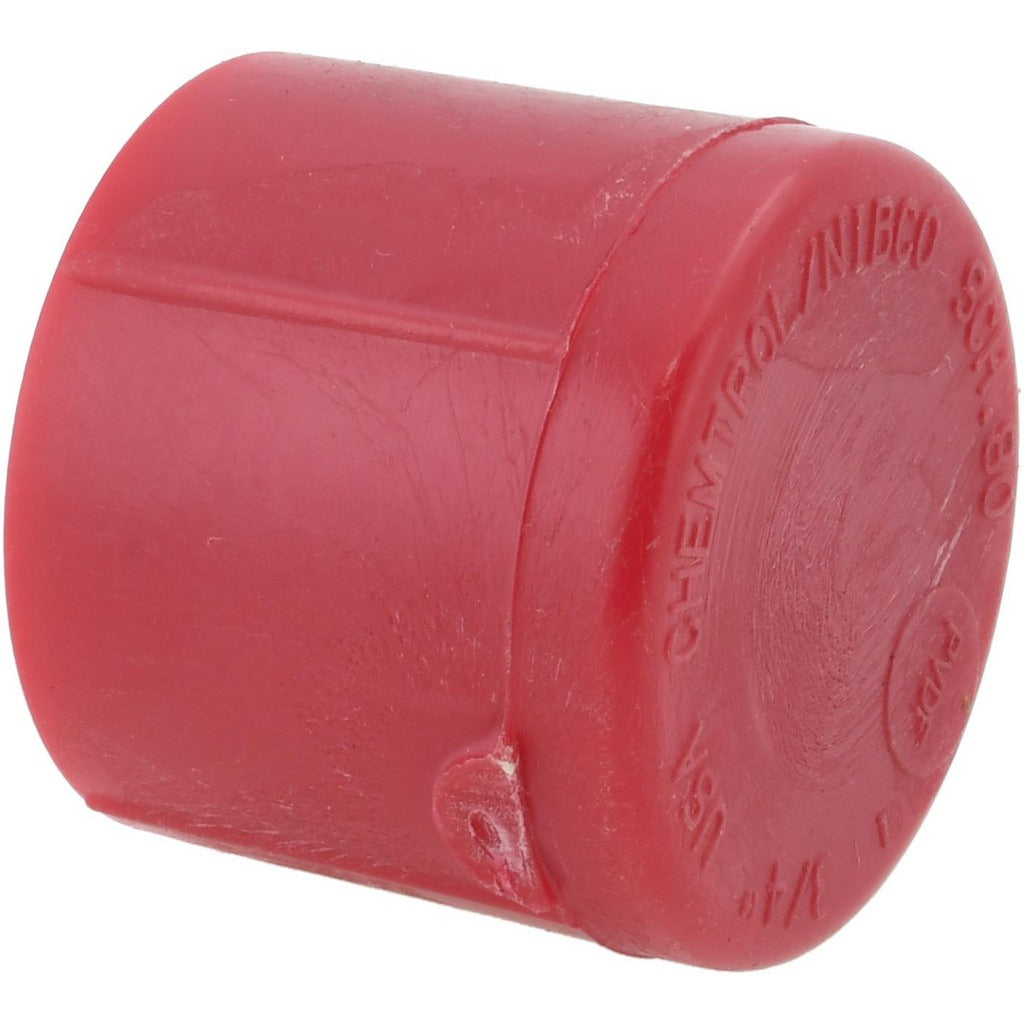

Nibco CD02800 Pvdf Pipe End Cap 3/4 in Schedule 80

Product Description

The NIBCO CD02800 is a Schedule 80 PVDF thermoplastic end cap designed to terminate 3/4-inch female iron pipe thread (FIPT) connections in industrial and chemical piping systems. PVDF (polyvinylidene fluoride) offers excellent resistance to aggressive chemicals, UV exposure, and high-purity fluid handling applications. The red color aids in visual identification of PVDF fittings in multi-material piping systems. This fitting is installed by licensed plumbers and pipefitters working on corrosive-service, high-purity, or chemical process lines where standard PVC or CPVC fittings are not suitable.

This end cap is suited for use in commercial and industrial piping applications where chemical resistance and Schedule 80 pressure ratings are required. Typical installations include chemical processing lines, semiconductor fabrication facilities, water treatment systems, and laboratory plumbing. The FIPT x FIPT end connection threads directly onto male-threaded pipe or fittings for a secure mechanical seal.

Key Features

• PVDF construction provides superior resistance to corrosive chemicals and solvents
• Schedule 80 wall thickness supports higher pressure ratings than Schedule 40
• FIPT end connection threads onto standard male iron pipe thread fittings
• Red color provides quick visual identification of PVDF material in the field
• 3/4-inch fitting size suits common industrial and commercial pipe runs

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF threaded piping systems using 3/4-inch FIPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with thermoplastic threaded fittings. Depressurize and drain the piping system fully before removing or installing any end cap. Use PTFE thread tape rated for chemical service when assembling PVDF threaded connections. Avoid over-tightening, as excessive torque can crack thermoplastic fittings.
