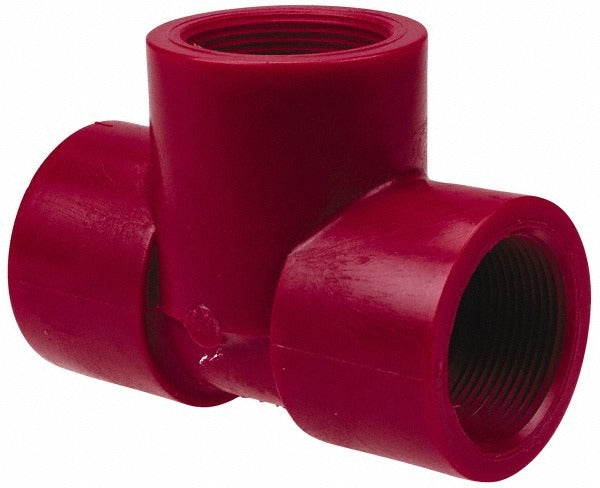

Nibco CD02000 Pvdf Tee Sch 80 1/2 Inch Fipt

Product Description

The NIBCO CD02000 is a Schedule 80 PVDF (polyvinylidene fluoride) pipe tee designed for demanding fluid-handling applications where chemical resistance and pressure integrity are critical. Sized at 1/2 inch with female iron pipe thread (FIPT) connections on all three ports, this tee allows branch connections in piping systems carrying corrosive chemicals, high-purity fluids, or aggressive process media. PVDF delivers superior resistance to a wide range of acids, bases, and solvents, making it a preferred material in industrial, laboratory, and chemical processing piping. Licensed plumbers and pipefitters handling chemical or high-purity systems are the typical installers.

This tee is suited for use in corrosive chemical distribution, semiconductor fabrication water systems, laboratory plumbing, and industrial process lines where metallic fittings are not appropriate. The Schedule 80 wall thickness provides elevated pressure ratings compared to Schedule 40, supporting higher-demand service conditions. The red color aids in quick visual identification of chemical or specialty piping lines in multi-system installations. All three ports accept standard 1/2 inch NPT male pipe threads for straightforward connection to Schedule 80 PVDF pipe and compatible threaded fittings.

Key Features

• PVDF construction provides excellent resistance to corrosive chemicals, acids, and solvents
• Schedule 80 wall thickness supports elevated operating pressures versus Schedule 40
• FIPT x FIPT x FIPT end connections on all three ports for threaded assembly
• 1/2 inch fitting size for standard small-diameter process and chemical piping
• Red color allows fast visual identification of specialty or chemical lines

Compatibility

Designed as an OEM-style replacement and standard-service fitting for Schedule 80 PVDF threaded piping systems using 1/2 inch NPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with thermoplastic threaded fittings and the chemical service requirements of the system. Shut off and depressurize the piping system fully before making any connections or modifications. Use PTFE thread tape or a compatible thread sealant rated for PVDF and the specific media being conveyed — avoid petroleum-based compounds that can degrade PVDF. Do not overtighten threaded connections, as excessive torque can crack PVDF fittings; hand-tight plus a controlled number of turns with a strap wrench is the standard practice for plastic threaded fittings.
