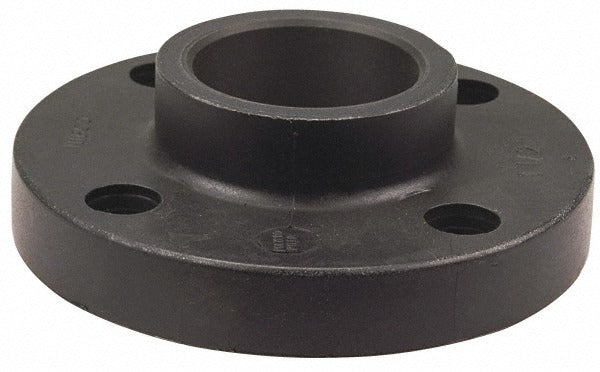

Nibco CC09200 Socket Pipe Flange 2 in Schedule 80

Product Description

The NIBCO CC09200 is a Schedule 80 polypropylene socket pipe flange designed for use in industrial and commercial piping systems where chemical resistance and durability are required. This flange accepts a 2-inch pipe and features a 6-inch outer diameter, providing a secure, leak-resistant connection point at pipe terminations, pump inlets, equipment connections, and valve assemblies. Constructed from black polypropylene, the CC09200 resists a wide range of corrosive chemicals and is well suited for aggressive fluid handling applications. Plumbers and pipefitters working in chemical processing, water treatment, or industrial plumbing installations will find this flange a reliable component for building out Schedule 80 thermoplastic piping systems.

The CC09200 is used in commercial and industrial piping applications that call for thermoplastic Schedule 80 components. Typical installations include chemical distribution lines, process water systems, and wastewater treatment facilities where standard metal flanges are not appropriate due to corrosive media. The socket-style connection is compatible with Schedule 80 polypropylene pipe, allowing solvent-cement or fusion joining depending on the installation method specified by the system designer. This flange is installed by licensed plumbers and pipefitters familiar with thermoplastic piping systems.

Key Features

• Schedule 80 wall rating for higher pressure and more demanding service conditions than Schedule 40
• Polypropylene construction provides resistance to a broad range of acids, bases, and chemicals
• Socket-style end accepts standard 2-inch Schedule 80 polypropylene pipe
• 6-inch outer diameter flange face for standard bolt-pattern mating
• Black color indicates Schedule 80 rating for easy visual identification in the field
• Lightweight at 0.68 pounds, reducing handling effort during installation

Compatibility

Designed as an OEM-style replacement and standard-fit component for 2-inch Schedule 80 polypropylene thermoplastic piping systems in industrial and commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and local plumbing codes for thermoplastic piping systems. Shut off and depressurize the piping system completely before removing any existing flange or beginning fitup. When using solvent-cement joining, follow the pipe and cement manufacturer instructions for cure time before returning the line to service. Do not over-torque flange bolts, as polypropylene is subject to stress cracking under excessive mechanical load.
