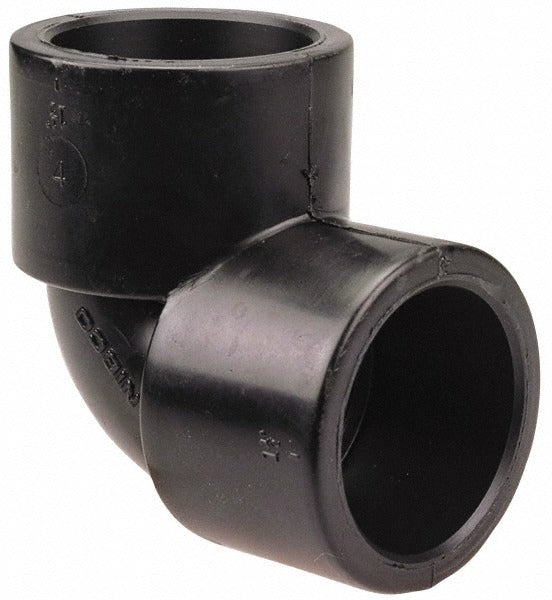

Nibco CC02050 Polypropylene 90 Elbow 1 Inch Sch 80

Product Description

The NIBCO CC02050 is a 1-inch Schedule 80 polypropylene 90-degree elbow designed for thermoplastic piping systems handling corrosive or high-purity fluids. Molded from black polypropylene, this fitting delivers a Slip x SR FIPT end connection configuration and is rated for service up to 180 degrees F. The Schedule 80 wall thickness provides added pressure capability compared to Schedule 40, making it a reliable choice for demanding process and chemical drain applications. Licensed plumbers and pipefitters install this type of fitting in both new construction and retrofit piping runs where chemical resistance and temperature tolerance are critical.

This elbow is suited for residential and commercial plumbing, industrial process lines, and chemical handling systems where standard metal fittings are not appropriate. The Slip socket inlet accepts pipe for solvent cementing, while the SR FIPT female iron pipe thread outlet allows threaded connections to metal or plastic male-threaded components. Typical install scenarios include lab drain systems, chemical feed lines, and corrosion-resistant vent and drain piping.

Key Features

• Schedule 80 wall thickness for increased pressure rating over standard Schedule 40
• Polypropylene construction resists a wide range of chemicals and corrosive fluids
• Rated to 180 degrees F maximum working temperature
• Slip x SR FIPT end connections for solvent-cement-to-threaded transitions
• Black color provides UV resistance for above-ground outdoor applications
• Conforms to ASTM D4101 material standards

Compatibility

Designed as an OEM-style replacement or standard component for Schedule 80 polypropylene piping systems using 1-inch nominal pipe size.

Installation Notes

Installation should be performed by a licensed plumber following applicable IPC or local plumbing code requirements. Shut off fluid flow and depressurize the line before cutting into any existing piping. The Slip socket end requires proper solvent cement formulated for polypropylene — do not use standard PVC cement. Verify thread sealant compatibility with the fluid media before applying to the SR FIPT connection.
