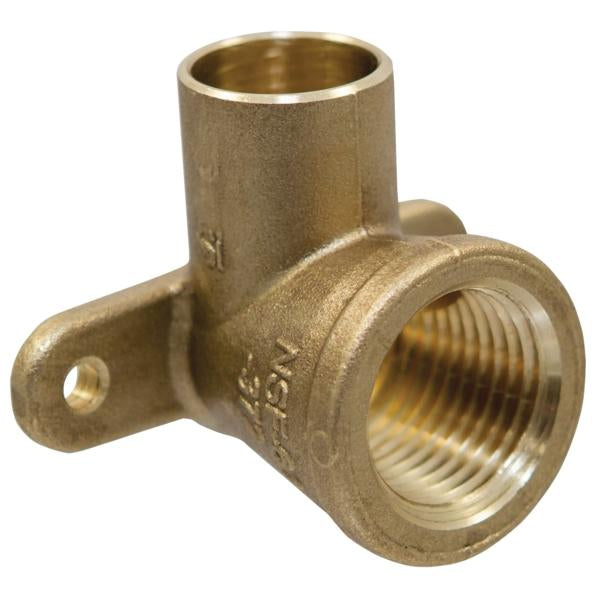

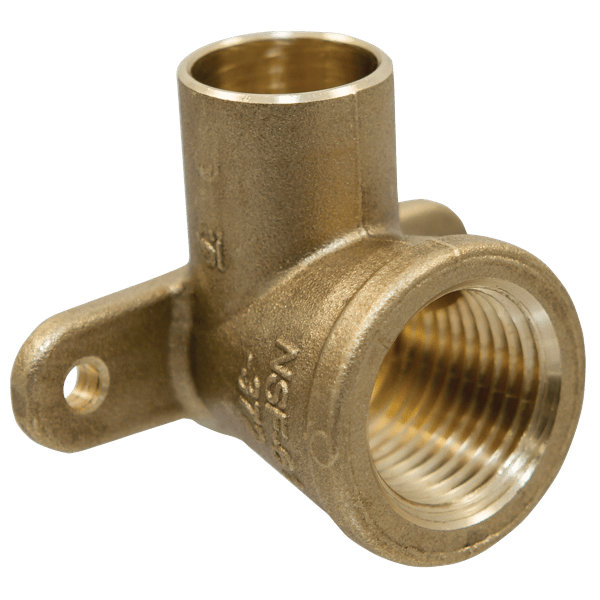

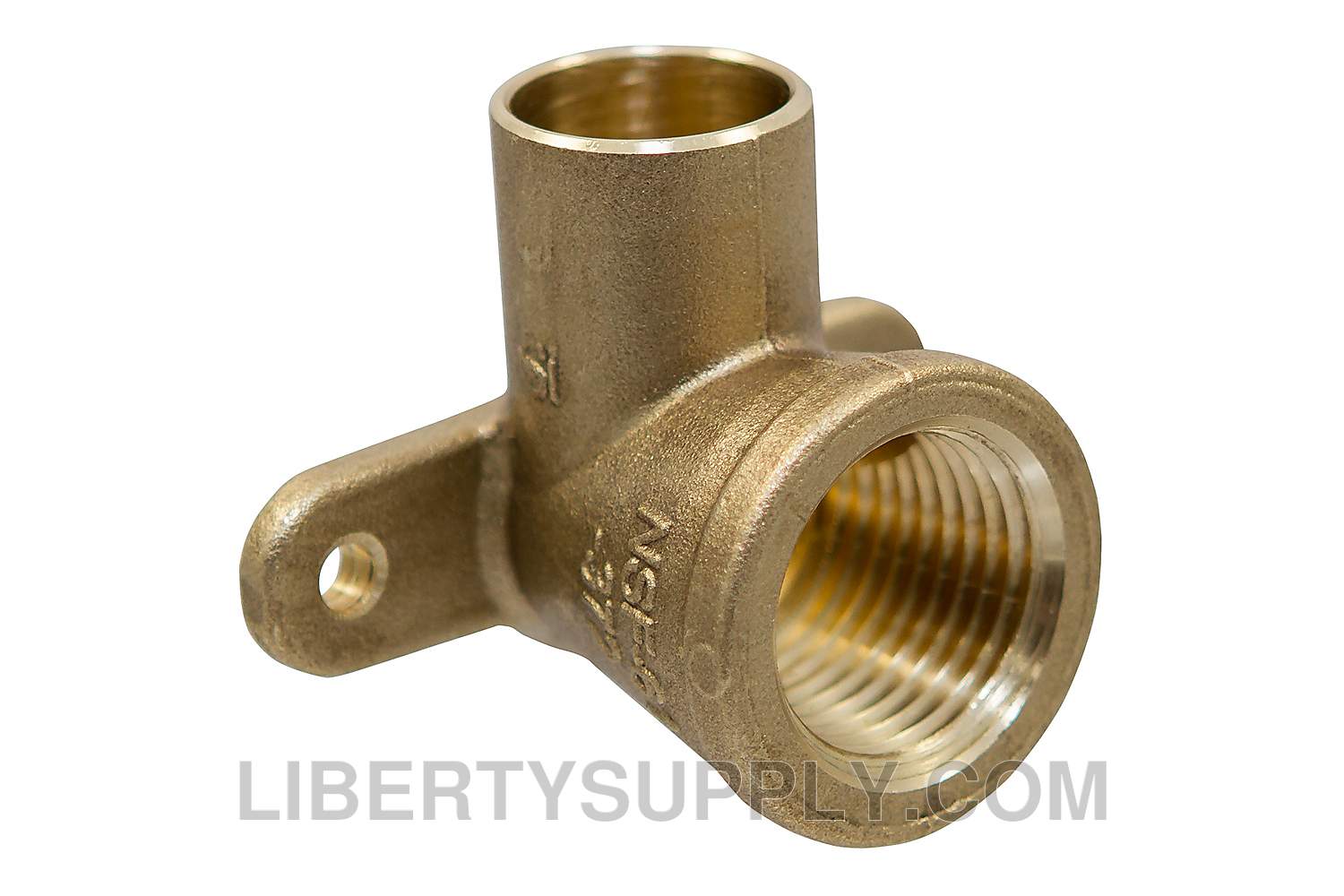

NIBCO BF6710L 90 Degree Drop Elbow 1 in. Female Solder x 1 in. FNPT

Product Description

The NIBCO BF6710L is a bronze solder pressure 90-degree drop elbow designed for plumbing systems. This fitting features a solder cup and female NPT threads, allowing a seamless connection in your plumbing installations. The elbow facilitates a 90-degree change in pipeline direction, essential for transitioning from solder to threaded connections. The design includes mounting ears for added support during installation.

• Designed to prevent dezincification.
• Composed of lead-free bronze material.
• Applicable for both residential and commercial plumbing.

Product Highlights

This fitting provides reliable performance and meets stringent plumbing standards.

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: BF6710L

Technical Specifications

• Model: 707-3-5-LF
• Fitting Type: 90 degree elbow
• Bend Angle: 90 degrees
• Nominal Pipe Size: 1 x 1
• Connection Size 1: 1 in
• Connection Size 2: 1 in
• Connection Type 1: Female solder
• Connection Type 2: FNPT
• Material: Lead-free bronze
• Length: 2.55 inches
• Width: 2.52 inches
• Height: 1.88 inches
• Application: Residential and commercial plumbing
• Standards: ASME B16.18, NSF/ANSI/CAN-61 and 372
• Potable Water Code: LL Compliant NSF/ANSI 372
