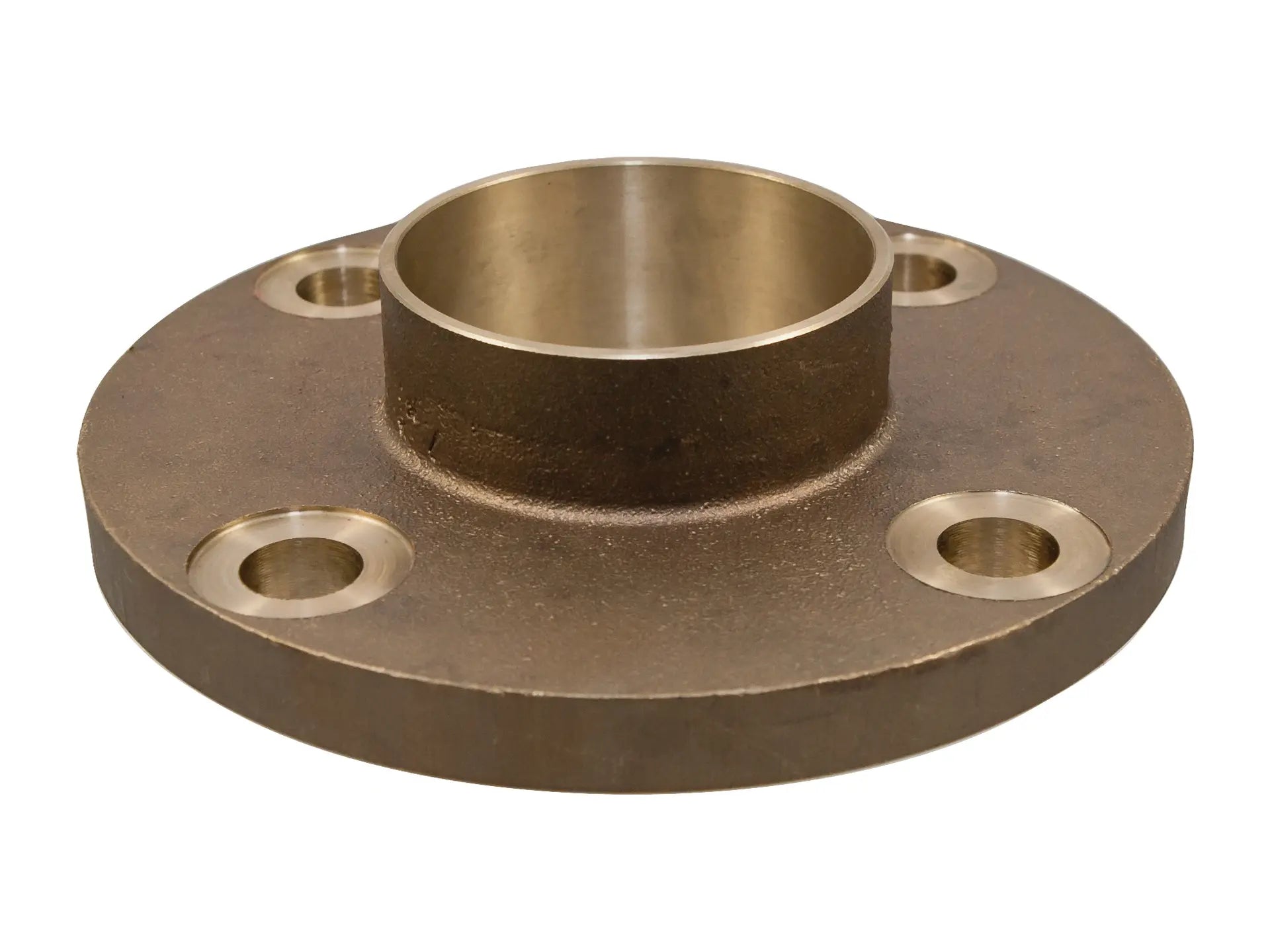

Nibco B49540L 771-LF Flange 2 inch

Product Description

The NIBCO B49540L 771-LF flange features a solder cup and flange face, providing a means for adapting a solder connection to a flange connection. This lead-free bronze solder pressure Class 150 companion flange is used in residential and commercial plumbing applications. NIBCO copper fittings are backed by a 50-year limited warranty.

• Lead-free
• Dezincification resistant
• Silicon Performance Bronze alloy
• ASME B16.18 design standards
• Third-party certified to NSF/ANSI 61 and 372

Product Highlights

The flange provides a transition between solder and flange connections in plumbing systems. It is made from lead-free bronze and is suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: B49540L
• Country of Origin: MX

Technical Specifications

• UPC Code: 039923317186
• All Type of Item: Fitting
• All Special Application: Lead-Free
• Description: 771-LF 2 C CLASS 150 FLANGE CAST
• Type: Flange
• Connection Type: C x Flange
• Size: 2"
• Material: Lead-Free Bronze
• Item: Flange
• Body Material: Lead Free Bronze
• Height: 1.46"
• Length: 6"
• Nominal Pipe Size: 2"
• Potable Water Code: Ll Compliant Nsf/Ansi 372
• Width: 6"
• Manufacturer: NIBCO
• Part Number: B49540L
• Model: 771-LF
