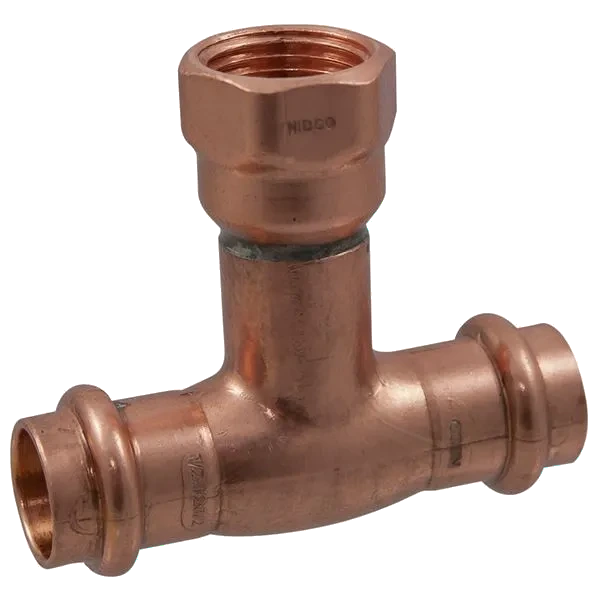

Nibco 9116506PC PC612 Tee Press x Press x Female (1 x 1 x 1/2 in)

Product Description

Nibco 9116506PC is a PC612 press reducing tee for copper tubing with press-fit x press-fit x female (FNPT) connections in a 1 x 1 x 1/2 inch configuration. The fitting is wrought copper with lead-free construction and an EPDM O-ring for a leaktight seal. It is rated to 200 psi and -20 to 250 F for potable, hot, chilled and process water in plumbing and HVAC systems and may be installed underground.

• Press x press x FNPT reducing tee, nominal size 1 in x 1 in x 1/2 in; PC612 model with visible "N" witness mark when properly crimped
• Wrought copper construction (C12200, ASTM B75), lead-free; maximum operating pressure 200 psi and temperature range -20 to 250 F; meets ASME B16/51, NSF/ANSI 372, UPC, CSA MSE 13 and PS-117
• EPDM O-ring seal; compatible with Type K, L, and M copper tubing; suitable for potable water and HVAC/plumbing systems and can be installed underground

Product Highlights

1 x 1 x 1/2 in press reducing tee (press x press x FNPT), lead-free wrought copper with EPDM O-ring, 200 psi, -20 to 250 F.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9116506PC
• Country of Origin: USA
