Nibco 9104705PC Press Tee 2 1/2 x 2 1/2 x 1 1/2

Product Description

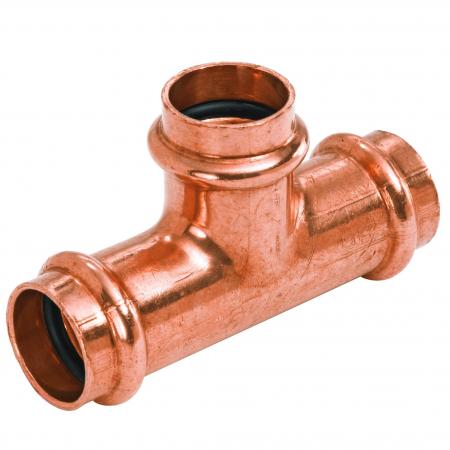

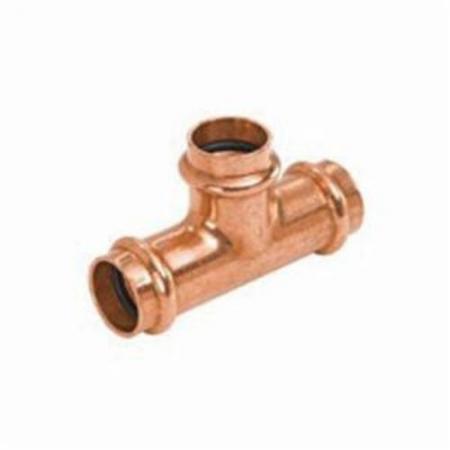

The Nibco 9104705PC is a press tee fitting made of wrot copper. With sizes of two and one-half inches by two and one-half inches by one and one-half inches, this fitting is designed for press connections. It provides a fast and effective way to connect copper tubing systems in residential and commercial plumbing and HVAC applications.

• Lead-free material for safety
• Dezincification resistant
• Suitable for hot and cold water applications

Product Highlights

This fitting is part of the Nibco press system, which uses an inboard bead and EPDM O-ring to create a secure, watertight seal without flame or solder. It features a pressure rating of two hundred psi and can handle temperatures ranging from negative twenty to two hundred fifty degrees Fahrenheit. This product is ideal for continuous pipelines and allows branching in different directions.

Product Information

Standard Information

• Brand: Nibco
• Model: PC611

Technical Specifications

• Connection Size: 2-1/2 x 2-1/2 x 1-1/2 inches
• Connection Type: Press
• Material: Wrot Copper
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Standards/Certifications: ASME B16/51, CSA MSE 13, PS-117, UPC listed
• Applications: For residential and commercial potable, hot, chilled and process water, plumbing, HVAC systems
