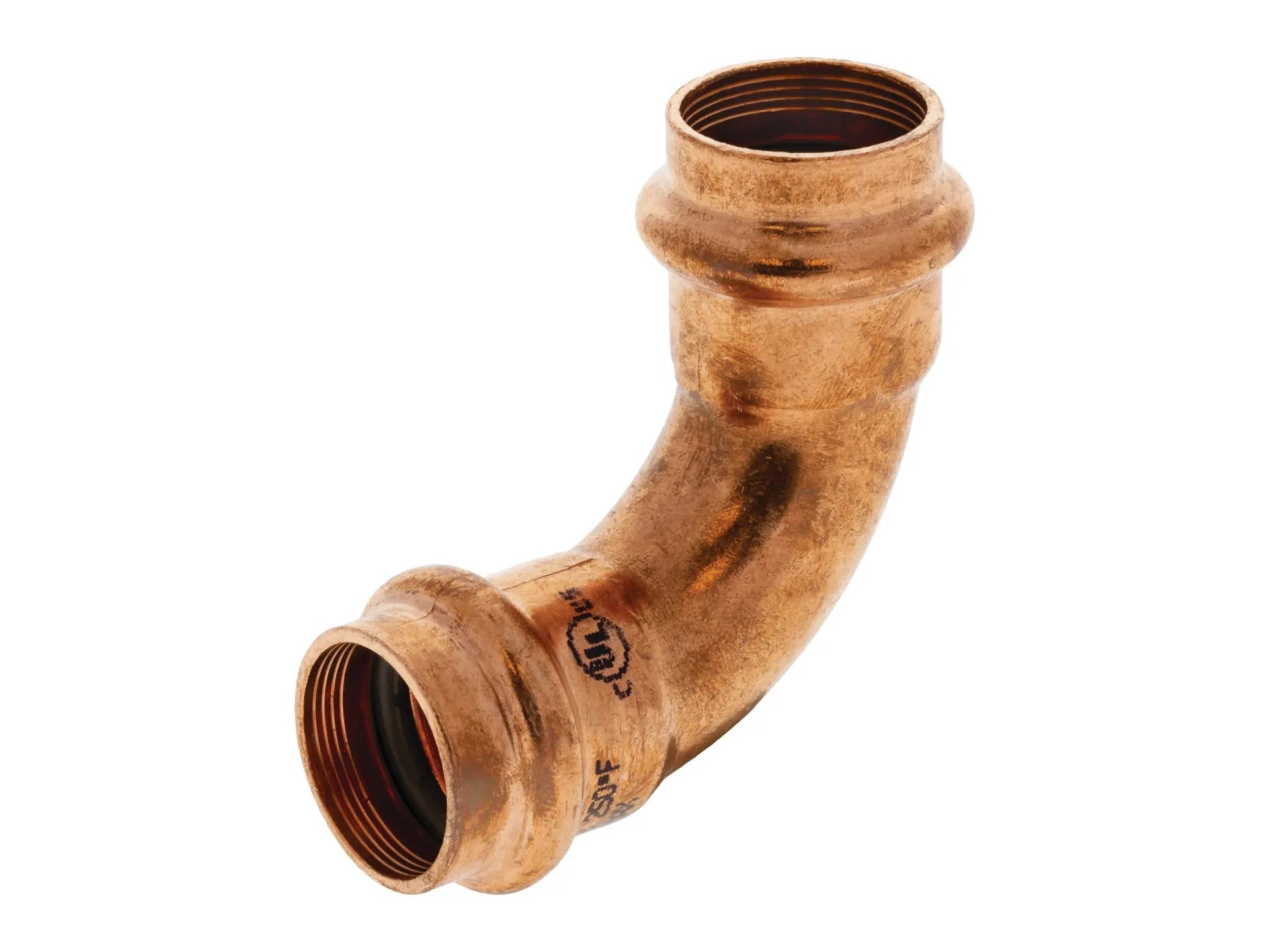

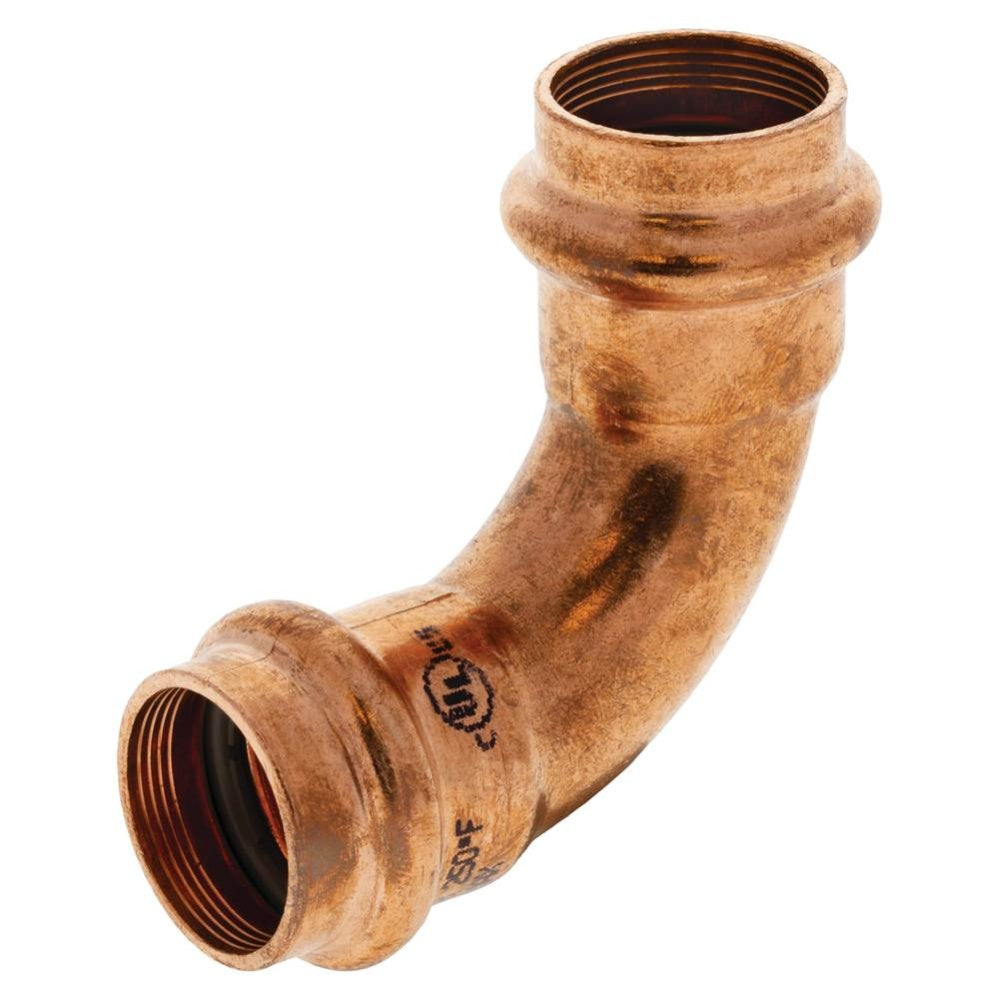

Nibco 907800RPC PressACR pc9607-lt Long Radius Elbow, 3/4 in, Press

Product Description

The NIBCO PressACR 907800RPC fittings are the fastest, easiest way to join copper tubing systems. Designed to join with seamless copper water tube in air conditioning and refrigeration applications systems. The press fittings can also be installed underground. User friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible.

• 500 mi vacuum
• Approved refrigerants - R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A and R434
• Approved oils - POE, PAG, MO, PAO, PVE and ABR456A

Product Highlights

NIBCO PressACR fittings apply the proven performance of press technology to NIBCO high pressure ACR fittings.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 907800RPC
• Country of Origin: Domestic

Technical Specifications

• End Style: Press
• Fitting/Connector Type: 90 deg Elbow
• Material: Wrot Copper
• Nominal Size: 3/4 in
• Pressure Rating: 700 psi
• Series: PC9607-LT
• Temperature Rating: -40 to 250 deg F
• Type: Long Radius
• Manufacturer: NIBCO
• Part Number: 907800RPC
• Model: PC9607-LT
• Type of Fitting: Elbow
• UPC Code: 039923413376
• Potable Water Code: LL Compliant NSF/ANSI 372
• Connection Type: Press
• Connection Size 1: 3/4 In
• Connection Size 2: 3/4 In
• Connection Type 1: Press
• Connection Type 2: Press
• Material Construction: Copper
• Operating pressure: 700 psi max
• Temperature range: -40A to 250A F
• Vacuum: 500mi
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
• UL 207 Recognized: to 700 PSI
• Complies with: ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration
• Item #: 907800RPC
• Vendor Item #: 907800RPC
• Plumbing Category: Plumbing Supplies
• Plumbing Subcategory: Fittings
• UOM: Each
• Manufactured By: Nibco
• SafetyList: LL Compliant NSF/ANSI 372
• Nominal Pipe Size: 3/4
