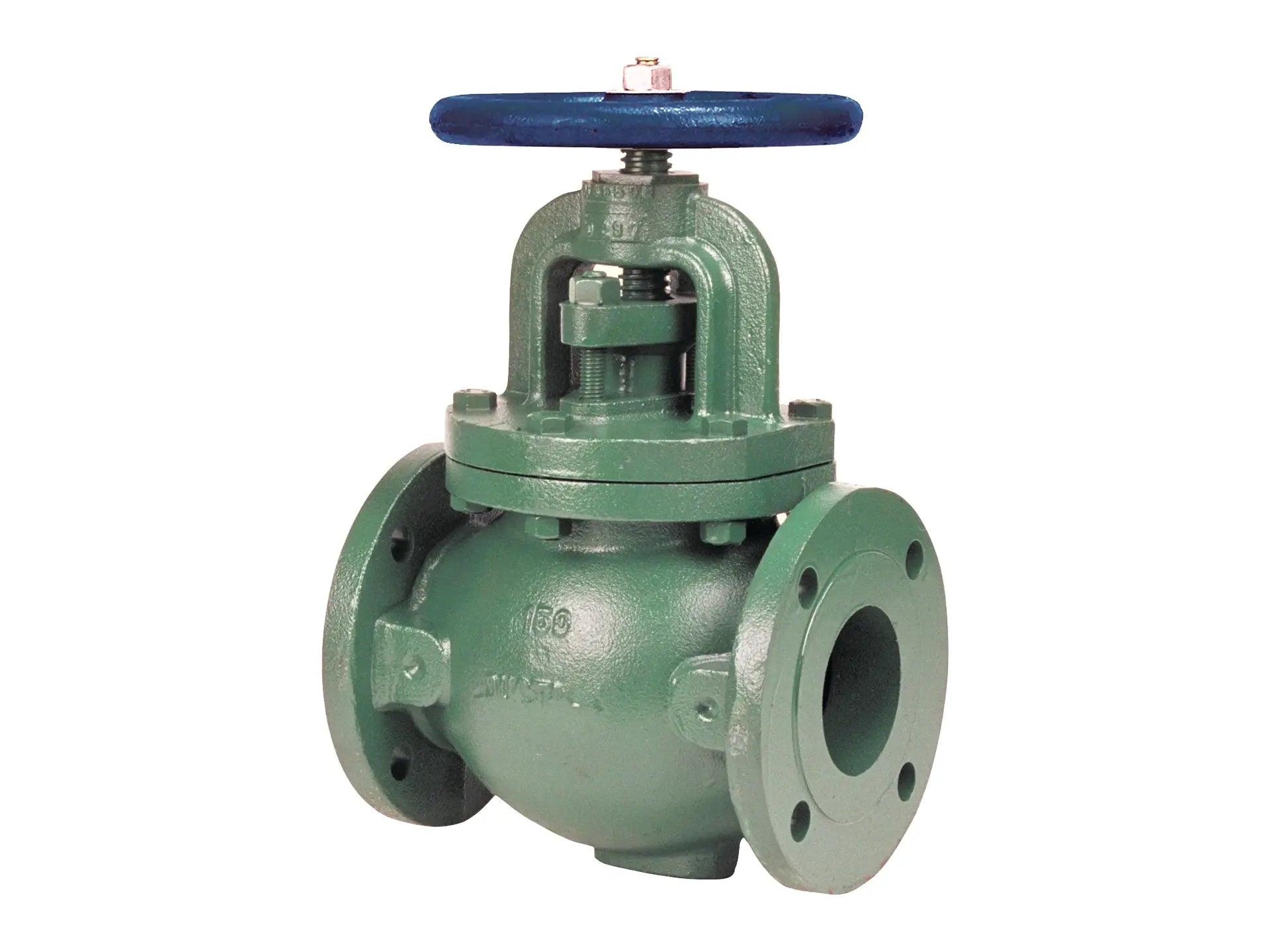

Nibco 39923701060 F-738-31 3 inches Flanged Ductile Iron Globe Valve

Product Description

The Nibco 39923701060 F-738-31 is a 3" flanged ductile iron globe valve rated to 150 psi/10.3 bar saturated steam to 366°F/185°C. It features an outside screw and yoke, bolted bonnet, renewable seat and disc, and Class 150 raised face flanged end connections. This globe valve conforms to MSS SP-85 and is designed for multi-turn operations.

• Rated to 150 psi/10.3 bar saturated steam up to 366°F/185°C
• Features outside screw and yoke with a bolted bonnet
• Equipped with renewable seat and disc

Product Highlights

The Nibco ductile iron globe valve is suitable for applications requiring shutoff, throttling, or regulating flow. It is not intended for potable water use.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923701060
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: 39923701060
• Model: F-738-31
• Valve Type: Globe Valve
• Connection: 3" Flanged
• Material: Ductile Iron
• Cold Working Pressure: 250 psi
• Maximum Temperature: 366°F
• Bonnet Style: Bolted
• Disc Style: Renewable
• Trim Material: Bronze
• Handle Style: Standard Handwheel
• Turns Operations: Multi-Turn
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 16.25"
• Width: 9.5"
• Height: 8"
