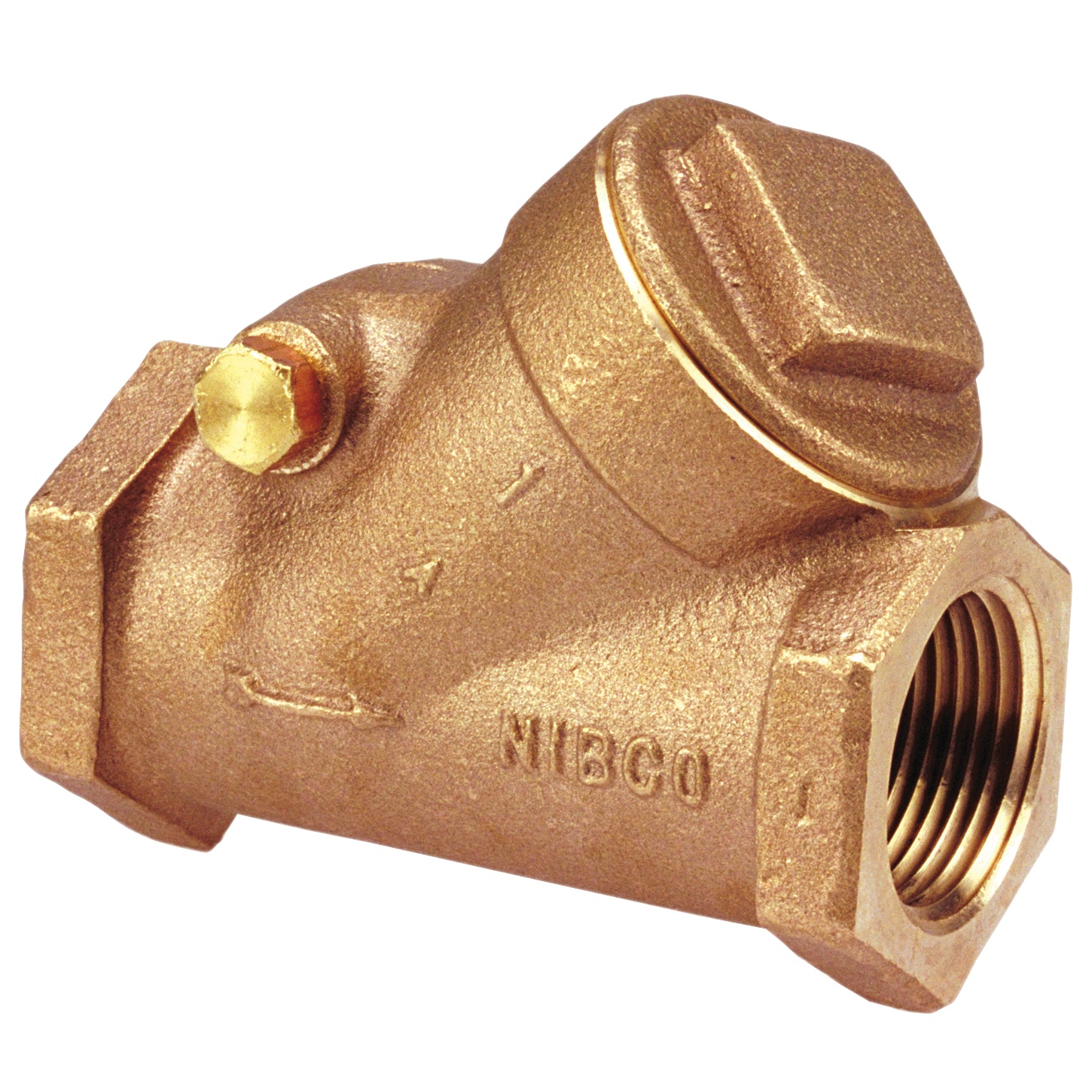

Nibco 39923637468 Y-Pattern Swing Check Valve (1 1/2 in) T-473-B

Product Description

Nibco 39923637468 is a bronze Y-pattern swing check valve with FNPT threaded end connections intended for commercial, mechanical, and industrial fluid systems. The valve may be installed horizontally or vertically with flow moving upward and uses an FKM seat disc with a regrindable seat. It is rated for saturated steam to 125 psi at 353°F and a cold working pressure of 200 psi, and it conforms to MSS SP-80.

• Connection: FNPT threaded end connections with Class 125 threaded ends; size 1 1/2 in.
• Pressure ratings: saturated steam 125 psi / 8.6 bar to 353°F / 178°C; cold working pressure 200 psi / 13.8 bar (non-shock).
• Construction and features: bronze body, FKM seat disc, regrindable seat; conforms to MSS SP-80.

Product Highlights

Bronze Y-pattern swing check valve with FNPT threaded connections, FKM seat, 1 1/2 in size, rated for steam and 200 psi cold working pressure.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923637468
• Country of Origin: USA

Technical Specifications

• Brand: Nibco
• MPN: 39923637468
• Manufacturer Model: T-473-B
• Product UID: T-473-B-1-1/2
• Product Type: Check Valve
• Name: BRZ Y-PATTERN SWING CHK
• Size: 1 1/2 in
• Body Material: Bronze
• Pattern: Y-pattern
• Connection Type: FNPT
• End Connections: Class 125 threaded end connections
• Seat Material: FKM seat disc
• Seat Feature: Regrindable seat
• Pressure Rating (saturated steam): 125 psi / 8.6 bar to 353°F / 178°C
• Cold Working Pressure: 200 psi / 13.8 bar (non-shock)
• Standards/Conformance: Conforms to MSS SP-80
• Country of Origin: Made in USA
• California Proposition 65 Warning: Yes
