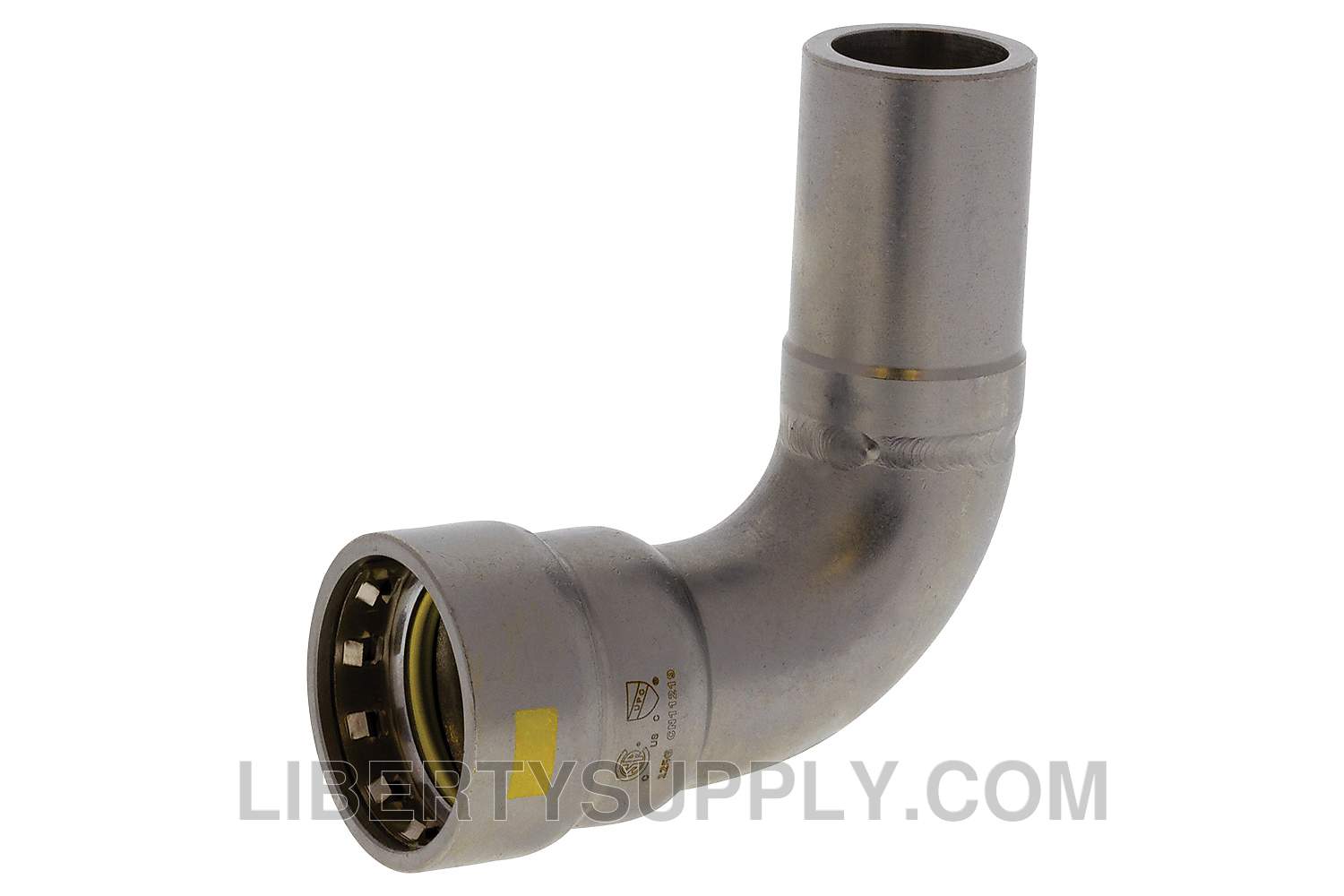

NIBCO 2059355HPC BenchPressG 90 Degree Elbow Fitting

Product Description

The NIBCO BenchPressG 2059355HPC is a carbon steel 90 degree elbow fitting designed for efficient pipeline direction changes. This product features a yellow HNBR O-ring and a stainless steel gripper ring to ensure a secure connection. It is primarily made for joining carbon steel pipes through a reliable press connection.

• 90 degree elbow fitting with fitting and press connections
• Constructed of durable carbon steel
• Ideal for natural gas, compressed air, and fuel systems

Product Highlights

This fitting is suitable for underground installations and can endure a maximum pressure of two hundred PSI. It operates effectively at temperatures ranging from negative twenty to two hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: 2059355HPC

Technical Specifications

• Model: PCH207-2
• Fitting Type: Elbow
• Elbow Type: Straight Size; Fitting/Street
• Fitting Bend Angle: 90 degrees (1/4 Bend)
• System Use: Natural Gas, Compressed Air, Diesel Fuel, Liquid Propane
• Material: Carbon Steel
• Nominal Pipe Size: 2 IN
• End Connection Type: Female and press
• Connection Type: Fitting X Press
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Dimensions: 5.08 x 4.80 IN Center To End
