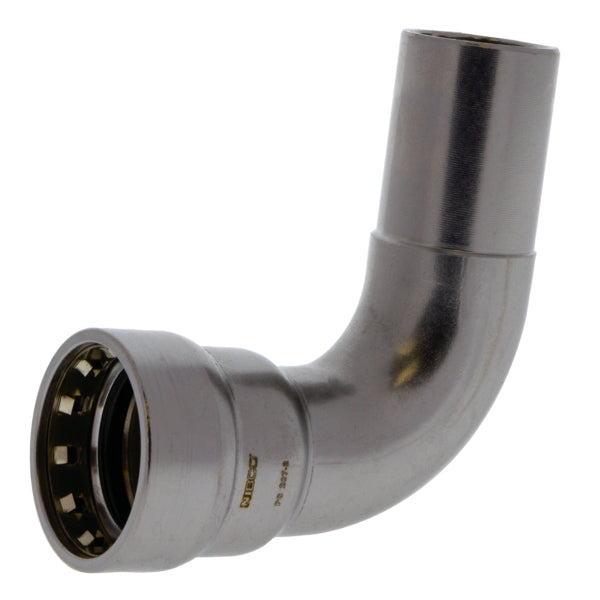

NIBCO 2059110EPC BenchPress 90 Degree Elbow Fitting

Product Description

The NIBCO BenchPress 2059110EPC is a 90-degree elbow fitting made from carbon steel. This fitting features a fitting end and press connection, allowing for a 90-degree turn in pipeline direction. It includes a black EPDM O-ring and a stainless steel gripper ring. Applying pressure with a pressing tool secures the O-ring onto the pipe to form a tight seal. This fitting is suitable for use in fire sprinkler, chilled water, and hydronic heating systems.

• Constructed from durable carbon steel
• Supports systems up to 200 PSI
• Ideal for various piping applications

Product Highlights

Reliable for creating secure connections in pipe systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 2059110EPC

Technical Specifications

• Model: PC207-2
• Item Name: 90 DEG Elbow
• Type: Elbow
• Nominal Size: 1/2 IN
• Connection Type: Fitting X Press
• Fitting Bend Angle: 90 degrees
• Material: Carbon Steel
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees F
• Length: 3.19 inches
• Width: 2.7 inches
• Height: 1.26 inches
• Industry Standards: ASME B31, UL Listed, FM Approved
• Country of Origin: CN
• UPC Code: 039923432384
