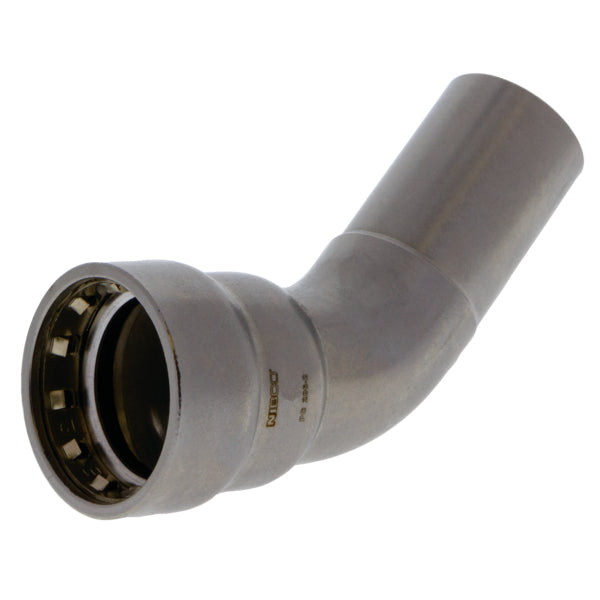

NIBCO 2046300EPC PC206-2 3/4 45 Degree (1/8 Bend) Press Elbow

Product Description

The NIBCO 2046300EPC is a carbon steel 45-degree fitting elbow designed for press connections. This fitting includes a black EPDM O-ring and a stainless steel gripper ring.

• Facilitates a 45-degree change in pipeline direction.
• Secure connection without threading using a pressing tool.
• Ideal for fire sprinkler, chilled water, and hydronic heating systems.

Product Highlights

This fitting is versatile for various applications and can be installed underground. It provides a reliable seal quickly and efficiently, streamlining the connection process.

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: 2046300EPC

Technical Specifications

• Model: PC206-2
• Type of Fitting: Elbow
• Type of Elbow: Straight Size
• Nominal Pipe Size: three-fourths x three-fourths
• Fitting Bend Angle: 45 degrees (1/8 Bend)
• Material: Carbon Steel
• Operating Pressure: Up to 200 psi cwp depending on the application
• Temperature Range: from minus twenty degrees Fahrenheit to two hundred fifty degrees Fahrenheit depending on the application
