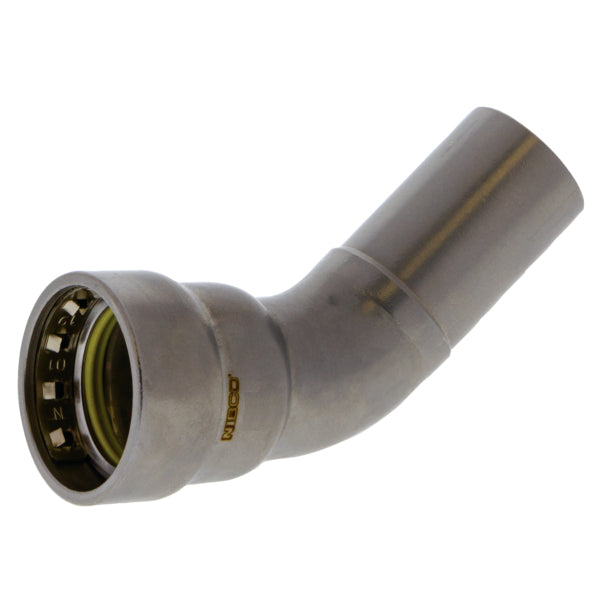

NIBCO 2046200HPC BenchPressG 45 Degree Elbow

Product Description

The NIBCO 2046200HPC BenchPressG 45 Degree Elbow is made for connecting black iron pipe systems. This fitting allows a 45-degree change in direction, constructed from durable carbon steel.

• Designed for black iron pipe systems.
• Uses press connections for secure sealing.
• Suitable for various gas and air applications.

Product Highlights

This elbow fitting is ideal for residential and commercial gas, air, and fuel systems. It can also be installed underground, providing flexibility in applications.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 2046200HPC

Technical Specifications

• Sub Brand: BenchPressG
• Item Name: 45 DEG Elbow
• Model: PCH206-2
• Nominal Size: 1/2 IN
• Connection Type: Fitting X Press
• Material: Carbon Steel
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 - 250 DEG F
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Fitting Bend Angle: 45° (1/8 Bend)
• Length: 3.42 inches
• Width: 2.31 inches
• Height: 1.26 inches
