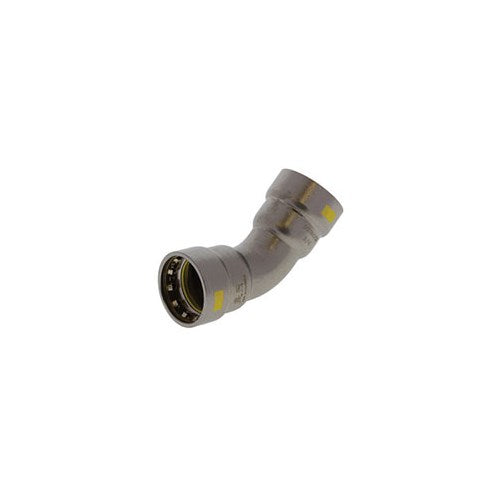

NIBCO 2043100HPC BenchPressG 45 Degree Elbow 1-1/4 Inch

Product Description

The NIBCO 2043100HPC is a forty-five degree elbow fitting designed for press connections. Constructed from carbon steel, this fitting is suitable for use in black iron pipe systems and effectively changes the direction of pipelines by forty-five degrees. The elbow includes a yellow HNBR O-ring and a stainless steel gripper ring that ensure a secure connection. When pressure is applied using a pressing tool, the O-ring forms a tight seal around the pipe.

• Press connections offer quick and reliable seals.
• Durable carbon steel construction.
• Ideal for gas, compressed air, and fuel systems.

Product Highlights

This fitting is engineered for efficiency and safety in a range of applications.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 2043100HPC

Technical Specifications

• Series: BenchPressG
• Item Name: 45 Degree Elbow
• Model: PCH206
• Nominal Size: 1-1/4 Inch
• Connection Type: Press
• Material: Carbon Steel
• Fitting Bend Angle: 45 degrees
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees F
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Length: 5.62 inches
• Width: 3.88 inches
• Height: 2.2 inches
