Nexhome DH-X67S Basic 7-inch Linux Indoor Monitor

Product Description

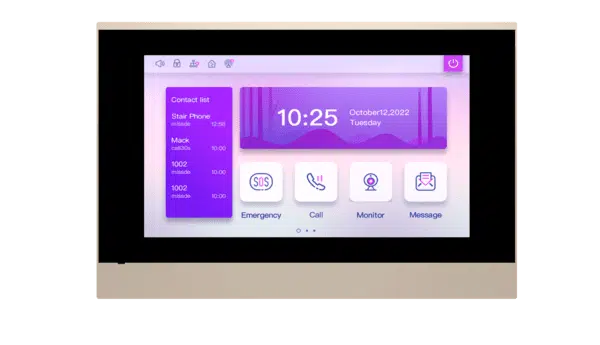

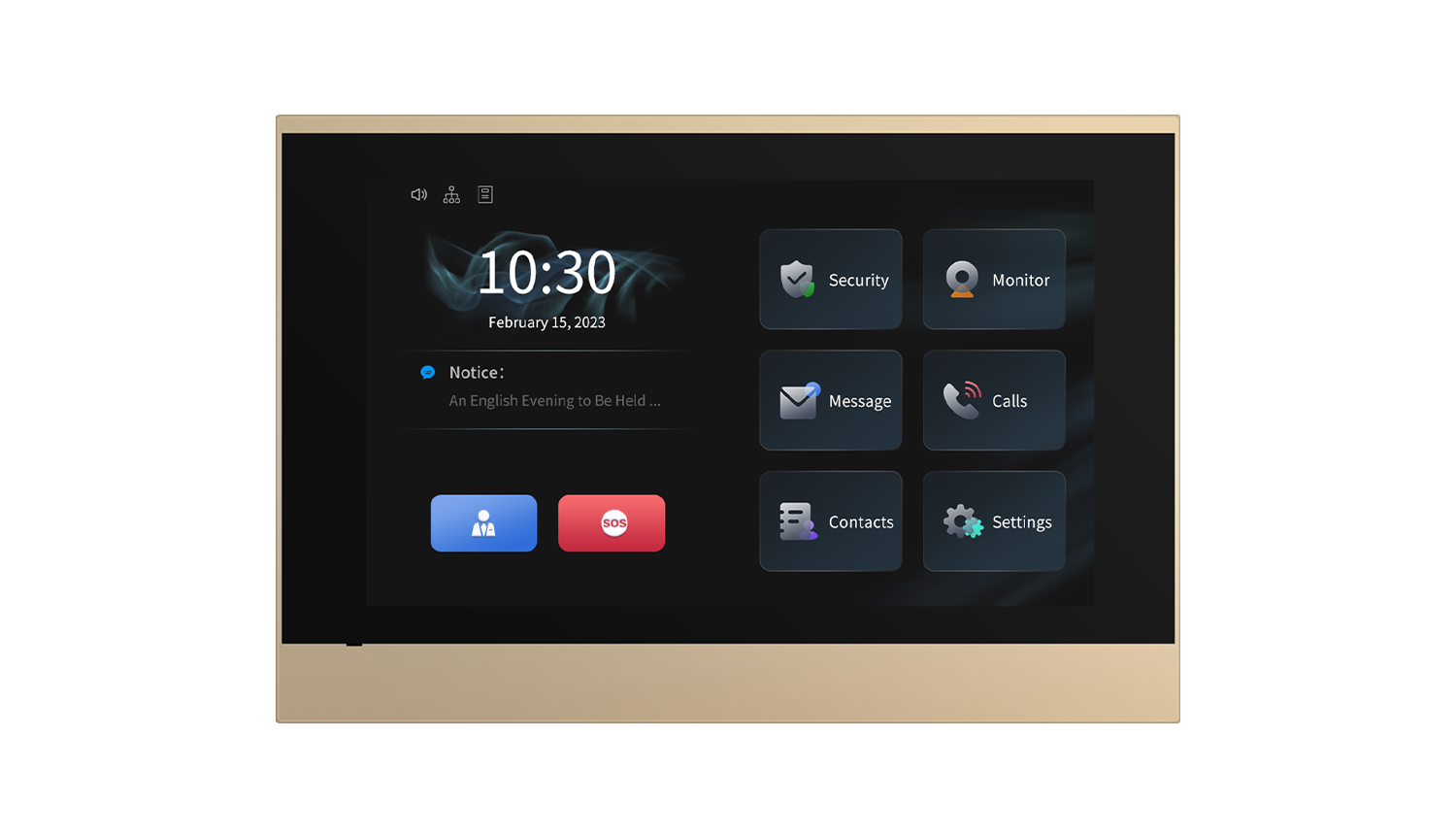

The NEXHOME DH-X67S is a 7" Linux indoor unit with a slim design suitable for limited spaces. It offers a variety of features and stable performance, making it ideal for apartment building projects. It features a capacitive touch screen and hands-free intercom.

• 7-inch IP video indoor unit built with Linux system
• Touchscreen and hands-free intercom
• Connect up to 8 security sensors

Product Highlights

This indoor monitor supports PoE, can call elevators, monitor security cameras, and call with managers and tenants.

Product Information

Standard Information

• Brand: NEXHOME
• Manufacturer Part Number: DH-X67S

Technical Specifications

• System: Linux
• RAM: 64MB
• ROM: 128MB
• Front Panel: Plastic
• Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
• Power Supply: PoE (802.3af) or DC12V/2A
• Installation: Wall Mounting
• Working Temperature: -10 C ~ +55 C
• Working Humidity: 95%RH
• Display: 7-inch TFT LCD
• Screen: 7-inch touch screen
• Resolution: 1024 x 600
• Audio Codec: G.711a, G.711 , G.729 (Narrowband); G.722(Broadband)
• Video Codec: H.264
• Protocol: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
• Ethernet: 1 x RJ45, 10/100 Mbps adaptive
• RS485: 1
• Power Output: 1 (12V/100mA)
• Doorbell Input: 1
• Alarm Input: 8
• Monitor Zones: Up to 8 monitor zones
• Functions: Hands-free video intercom, surveillance, remote unlock, notification functions
• Port: RS485 port for smart home connection
• Extendable Functions: Doorbell, Elevator calling and IP camera function extendable
• PoE: Standard PoE supported
