Newport Brass 2940-5103-24 Taft 17 3/8 Inch Pull-Down Kitchen Faucet (17 3/8 Inch)

Product Description

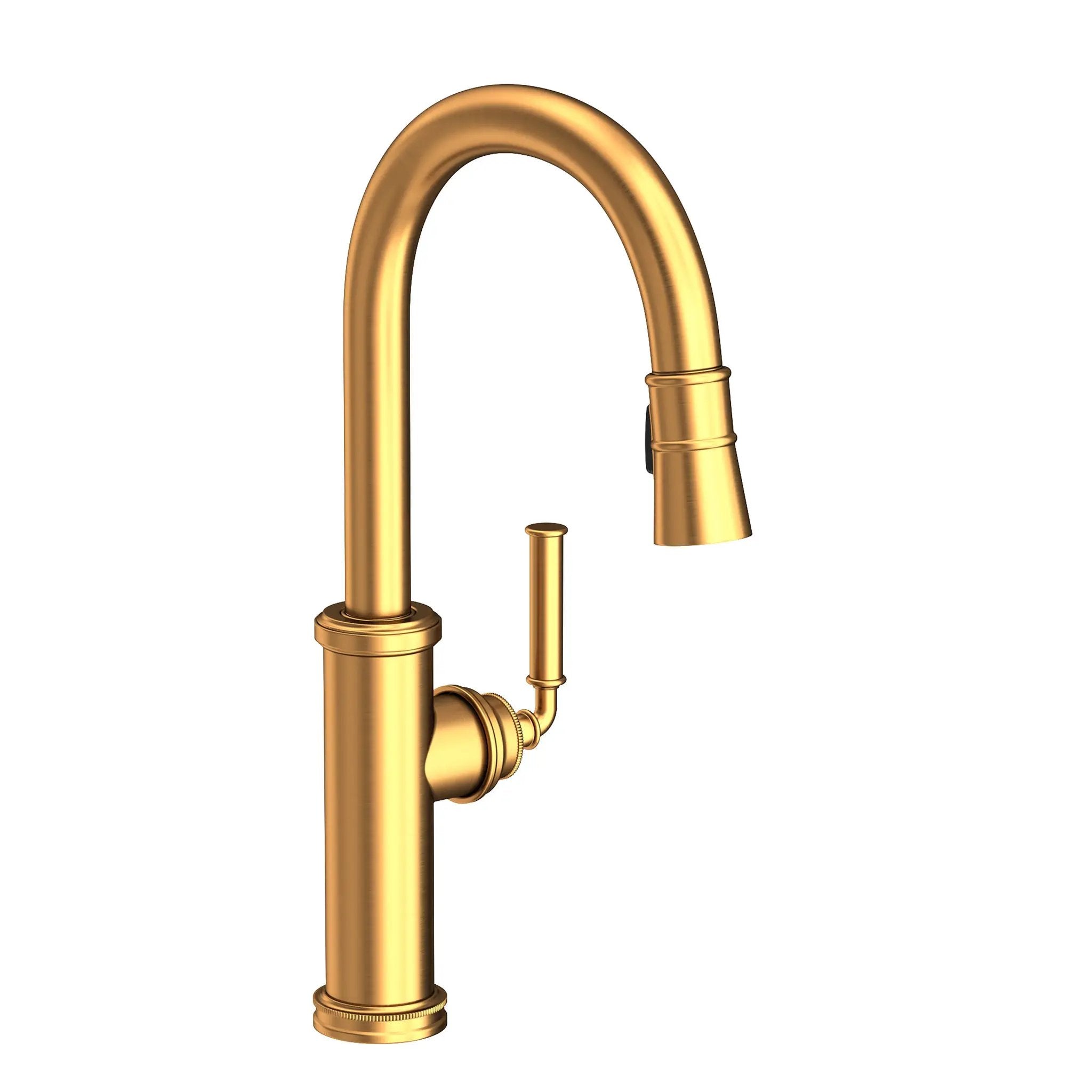

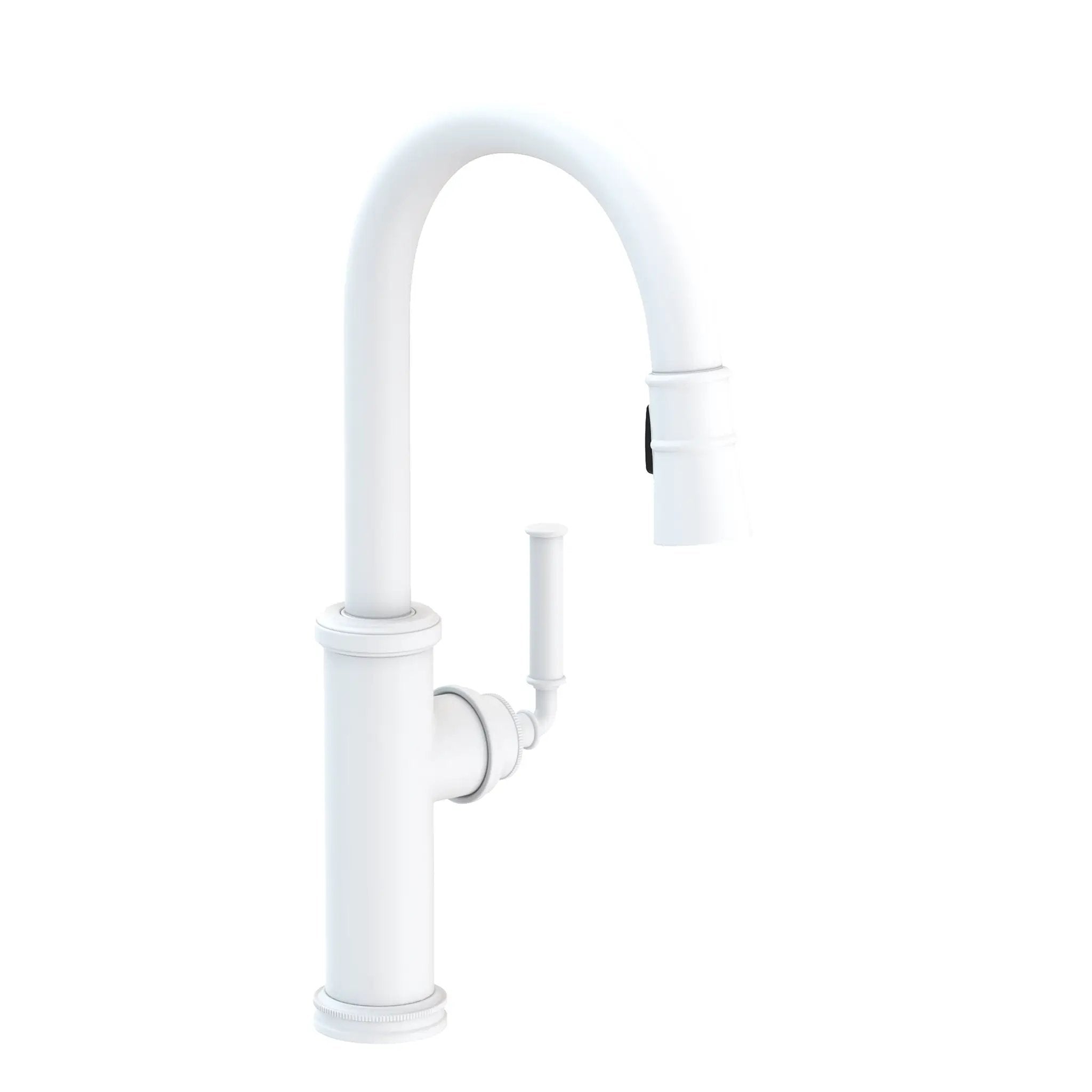

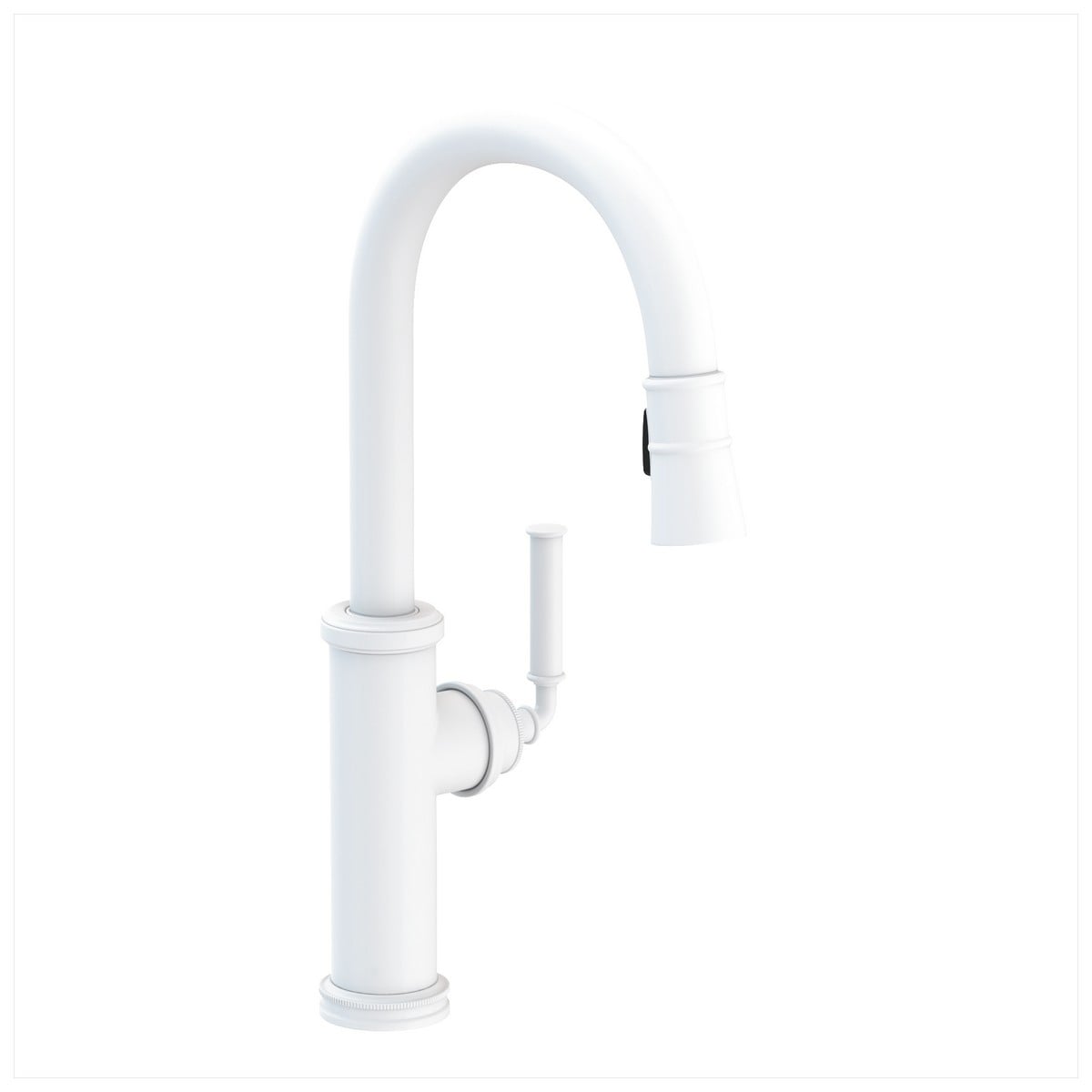

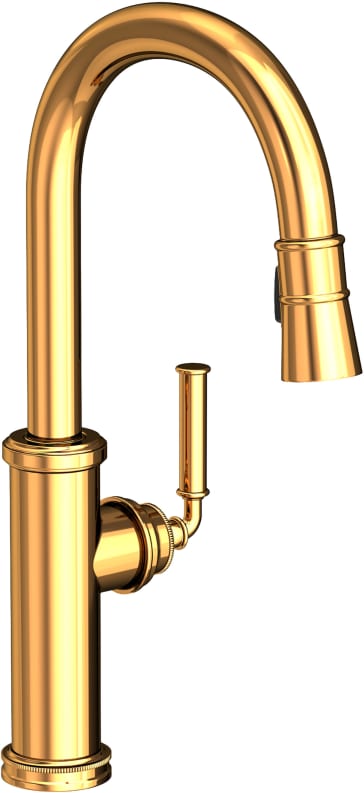

Newport Brass 2940-5103-24 is a Taft collection pull-down kitchen faucet with a solid brass body and a single-lever handle designed for single-hole deck installation. It uses a Euro-motion 35 mm ceramic disc valve cartridge and a two-function toggle-control spray engine with a solid brass housing and magnetic docking. The faucet has a 1.8 GPM flow rate, a 17.38-inch overall height, 10.25-inch spout height, and an 8.63-inch spout reach.

• Solid brass construction with single-hole deck-mounted configuration and single lever handle
• Euro-motion 35 mm ceramic disc valve cartridge; two-function toggle-control spray engine with magnetic docking
• Flow rate 1.8 GPM; overall height 17.38 in; spout height 10.25 in; spout reach 8.63 in

Product Highlights

Deck-mounted pull-down faucet; solid brass body; 35 mm ceramic disc cartridge; magnetic docked spray engine; 1.8 GPM flow rate.

Product Information

Standard Information

• Brand: NEWPORT BRASS
• Manufacturer Part Number: 2940-5103-24
• Country of Origin: United States

Technical Specifications

• Brand: Newport Brass
• Manufacturer Part Number: 2940-5103-24
• Model: 2940-5103 Taft
• Collection: Taft
• Construction / Material: Solid brass
• Finish: Multiple finishes available (example: Polished Gold PVD)
• Faucet Type: Pull-down kitchen faucet
• Installation: Deck-mounted / Single hole
• Number of Faucet Holes: 1
• Number of Handles: 1
• Handle Style: Lever
• Handle Position: Side
• Handle Material: Metal / Brass
• Valve Cartridge: Euro-motion ceramic disc 35 mm
• Spray Engine: Two-function toggle-control spray engine with solid brass housing
• Docking System: Magnetic docking system for spray head
• Spray Engine Inlet: Pivoting-ball inlet fitting for enhanced directional control
• Flow Rate: 1.8 GPM
• Overall Height: 17.38 inches
• Spout Height: 10.25 inches
• Spout Reach: 8.63 inches
• Spout Projection: 10-9/16 inches
• Hose Length: 63 inches
• Weight: 9.7 lbs
• Maximum Deck Thickness: 3.38 in
• Installation Hole Diameter: 1.38 in
• Handle Length: 3 in
• Drain Included: No
• ADA Compliance: ADA compliant (handles only)
• Certifications and Listings: California Prop 65; CalGreen Certified; CEC Certified; ASME A112.18.1; CSA B125.1
• Country of Origin: United States
• UPC: 709180089859
• Application: Commercial / Residential
