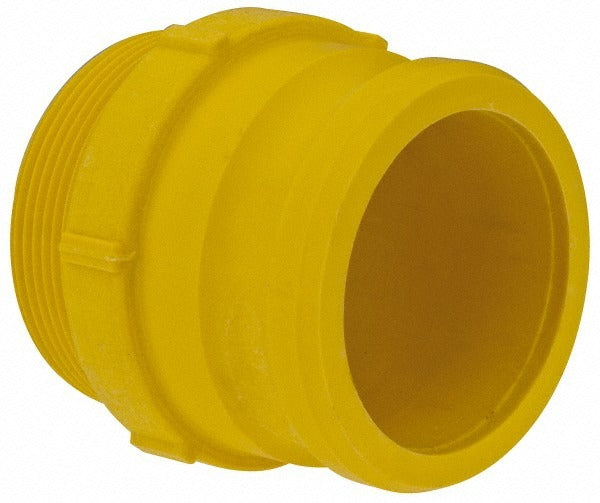

Newage Industries 5602121 Cam Groove Coupling 3 in Part F

Product Description

The NEWAGE INDUSTRIES 5602121 is a Part F cam and groove coupling designed for fast, tool-free hose and pipe connections in fluid transfer applications. Manufactured from nylon, this male adapter features a 3-inch MNPT threaded end that mates with standard cam and groove receivers. It is rated to a maximum working pressure of 125 psi, making it well-suited for moderate-pressure liquid handling lines. Plumbers, industrial pipefitters, and fluid system technicians install this style of coupling where quick disconnects are required without sacrificing leak integrity at the joint.

Part F cam and groove couplings are used in agricultural irrigation, chemical transfer, petroleum distribution, water handling, and general industrial piping. The male adapter end threads into a female NPT port on a pump, tank, or manifold, while the cam groove end accepts a standard female coupler. This coupling is appropriate for both temporary and semi-permanent connections in residential, commercial, and light industrial settings where 3-inch pipe or hose lines are present.

Key Features

• Part F configuration: male adapter with MNPT thread on one end and cam groove on the other
• 3-inch thread size for compatibility with standard 3-inch NPT fittings and ports
• 125 psi maximum working pressure rating for moderate-pressure fluid transfer
• Nylon construction offers resistance to corrosion and many common chemicals
• Tool-free cam and groove connection enables fast coupling and decoupling in the field

Compatibility

Designed as an OEM-style replacement or direct addition for systems using standard cam and groove (camlock) couplings at 3-inch MNPT connections conforming to MIL-C-27487 and ANSI/ASME B1.20.1 thread standards.

Installation Notes

Installation should be performed by a qualified plumber or pipefitter familiar with NPT threaded fittings and camlock coupling systems. Depressurize and drain the line completely before removing or installing any coupling. Apply appropriate thread sealant or PTFE tape to the MNPT threads prior to installation and tighten to hand-tight plus a firm wrench turn without over-torquing nylon fittings. Verify that the mating female cam groove coupler arms are fully engaged and locked before returning the line to service.
