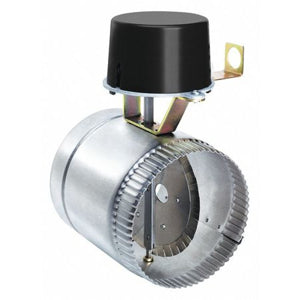

New Yorker 102284-03 Vent Damper 6 Inch Gas Boiler

Product Description

The NEW YORKER 102284-03 is a vent damper designed for use with CG50D and CG60D series gas boilers. The damper controls flue gas flow through the vent system, closing when the boiler is off to reduce standby heat loss and improve overall system efficiency. At 6 inches in diameter, it is sized to match the venting configuration of the compatible boiler models. Installation is performed by a licensed HVAC technician or plumber during routine boiler service or system commissioning.

This vent damper is intended for residential gas boiler applications where the CG50D or CG60D boiler requires a properly sized automatic vent damper. It mounts in the flue vent line between the boiler and the chimney or B-vent system. The damper operates in conjunction with the boiler control circuit, opening on a call for heat and closing when the burner shuts down to limit off-cycle heat and draft losses.

Key Features

• 6-inch diameter sizing matches CG50D and CG60D boiler vent outlet dimensions
• Reduces standby heat loss by closing the flue when the burner is not firing
• OEM-specified replacement part for compatible New Yorker gas boiler models
• Designed for integration with the boiler low-voltage control circuit

Compatibility

Designed for use with the NEW YORKER CG50D and CG60D gas boiler models.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber. Shut down the boiler and allow the flue system to cool completely before beginning work. The damper must be wired into the boiler control circuit per the manufacturer wiring diagram and local code requirements. Verify proper damper operation — confirmed open position before burner ignition — before returning the system to service.

Technical Specifications

• Diameter: 6 inches
• Compatible Equipment: CG50D and CG60D Gas Boiler

Standard Information

• Brand: NEW YORKER
• Manufacturer Part Number: 102284-03
