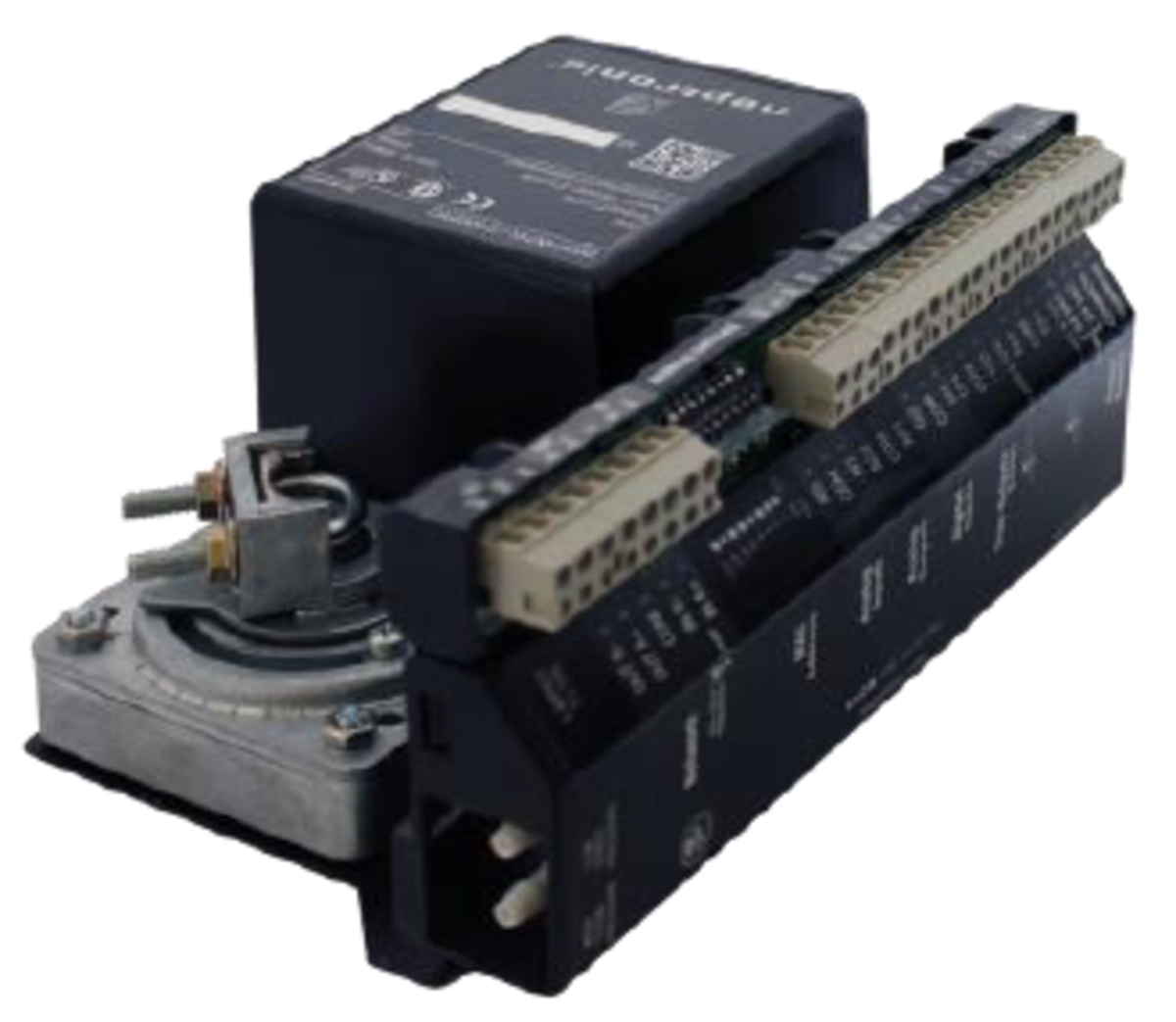

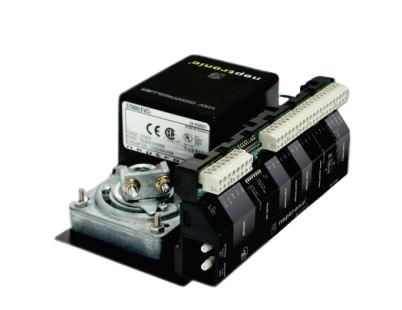

Neptronic EVCB14NIT4S Networkable VAV Unit Controller 24 VAC REPLACEMENT EVCBF14WIT4S

Product Description

The Neptronic EVCB14NIT4S is a networkable VAV unit controller that operates on twenty-four volts alternating current (VAC). This controller is designed specifically for fan-powered boxes and offers several advanced features. It includes two analog and two digital inputs, as well as two analog and four TRIAC outputs. The device allows for pressure-independent control and can communicate via BACnet MS/TP or Modbus protocols.

• Networkable VAV unit controller
• Built-in actuator with seventy inch-pounds (8 Nm) torque
• Supports BACnet MS/TP or Modbus communication

Product Highlights

The Neptronic EVCB14NIT4S provides versatility and efficient control in fan-powered box applications.

Product Information

Standard Information

• Part #: EVCB14NIT4S
• Category: Controls & Indicators
• Subcategory: Temperature/Process Control

Technical Specifications

• Inputs: 2 analog, 2 digital
• Outputs: 2 analog, 4 TRIAC
• Torque: 70 in-lb (8 Nm)
• Operating Voltage: 24 VAC
• Communication Protocols: BACnet MS/TP, Modbus
