Nds FWBP24 Flo-Well Bottom 24 in Diameter

Product Description

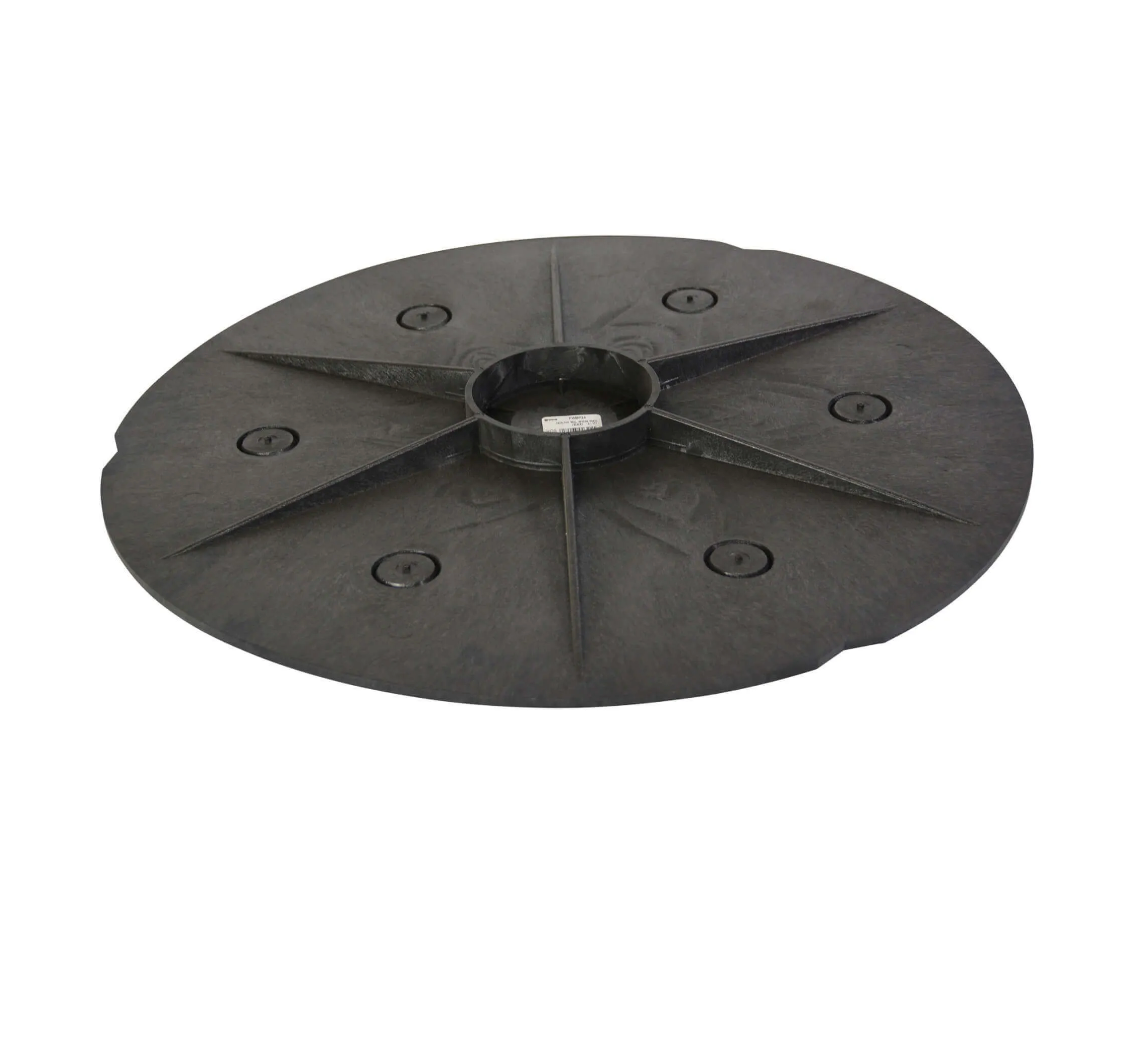

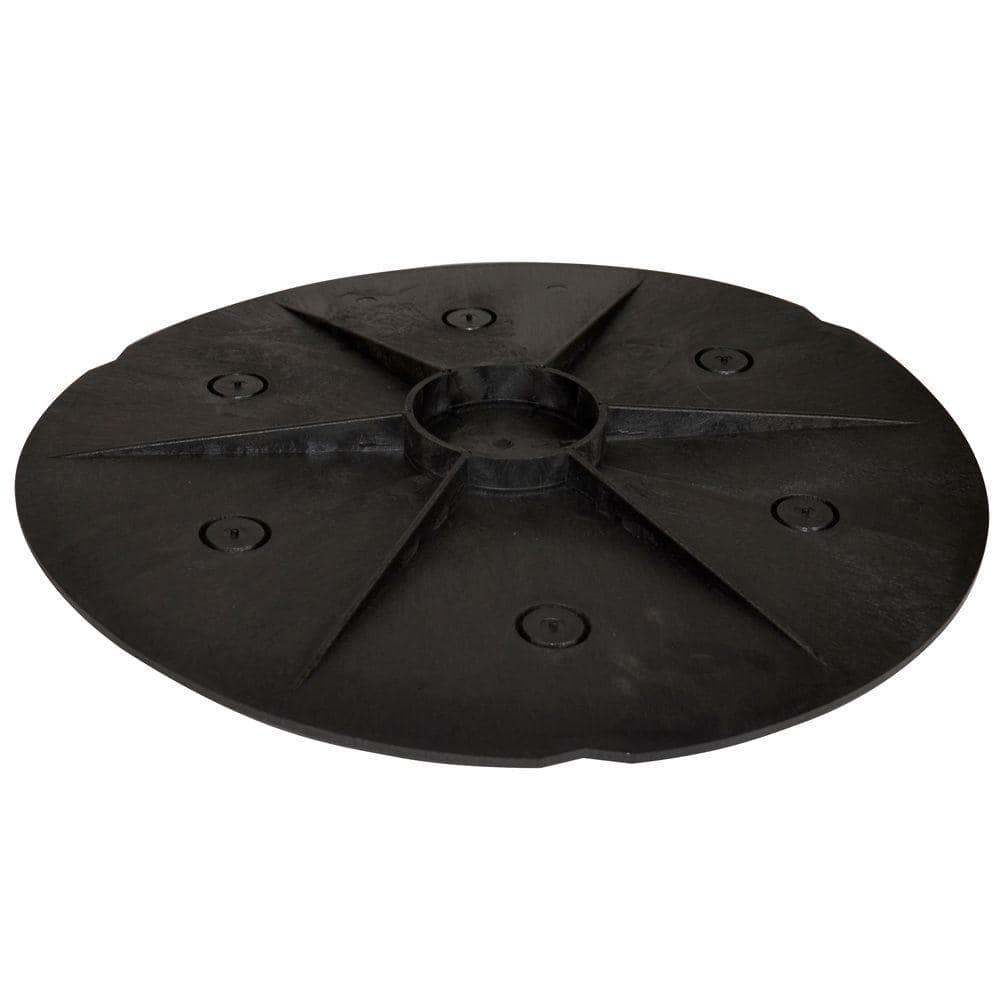

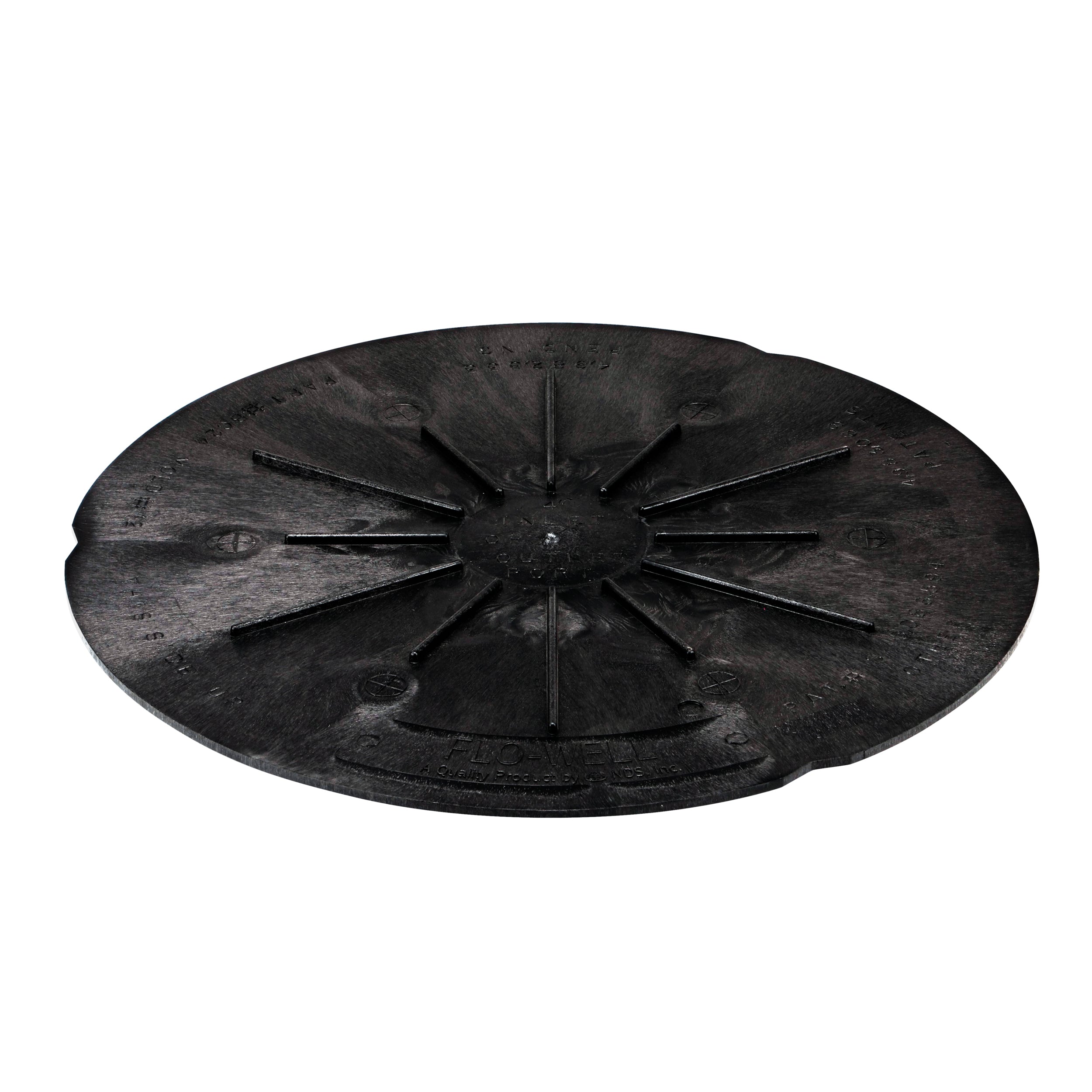

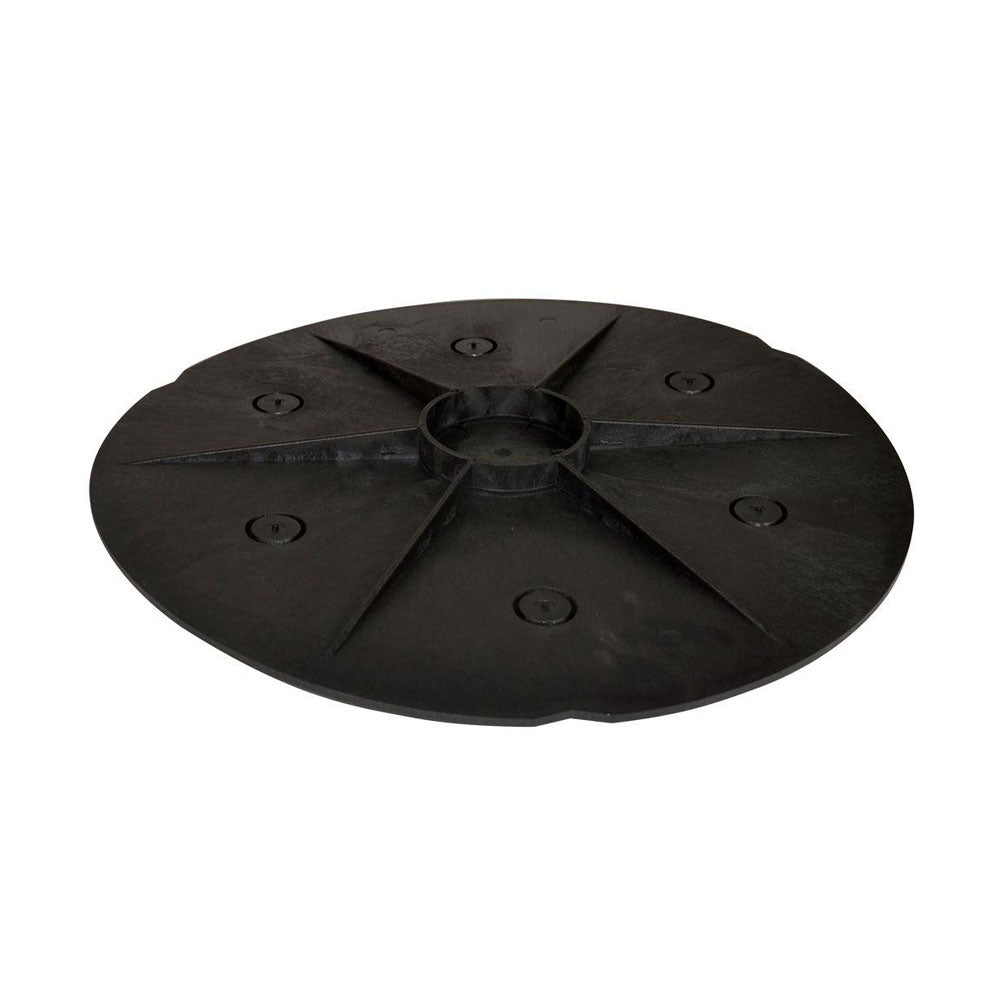

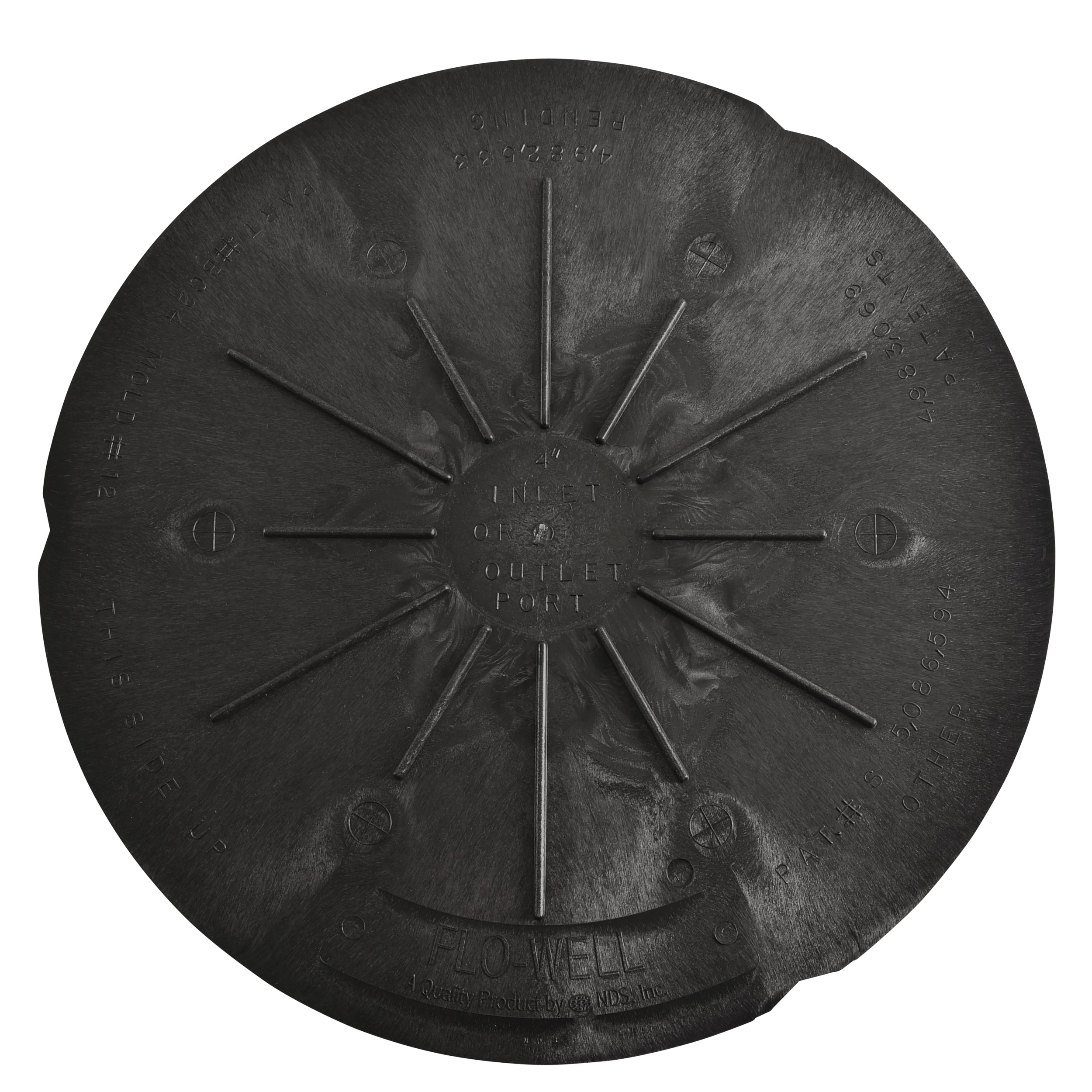

The NDS FWBP24 is a 24 in Flo-Well bottom panel designed to serve as the base for NDS Flo-Well dry well systems. The polyethylene panel prevents soil erosion under the tank, creates a stable base for pumps, and contributes to a gravel-free interior that increases holding capacity compared to gravel wells. It fits 24 in Flo-Well assemblies and includes features for controlled infiltration and pump installation.

• Constructed of polyethylene to prevent soil erosion and provide a stable pump base
• Gravel-free interior design provides approximately 2.5x the holding capacity of comparable gravel dry wells
• Includes six 1.5 in leaching ports and a 4.5 in center knockout for strut coupling or central support

Product Highlights

24 in polyethylene bottom panel for NDS Flo-Well systems; gravel-free interior, six leaching ports, 4.5 in center knockout; supports pump installation and on-site stormwater infiltration.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: FWBP24

Technical Specifications

• Brand: NDS
• MPN: FWBP24
• Product Name: Flo-Well bottom panel
• Material: Polyethylene
• Dimensions: 24 in W x 24 in L x 2 in H
• Fits: 24 in Flo-Well systems (compatible with FWAS24 kits)
• Leaching Ports: Six 1.5 in leaching ports
• Center Knockout: 4.5 in center knockout for strut coupling or central support
• Flow Capacity: 25 GPM
• Interior Capacity Advantage: Approximately 2.5x holding capacity versus comparable gravel dry wells
• Intended Use: Prevents soil erosion, provides stable base for pumps, creates a reservoir for pump recirculation
• Application: Stormwater collection, temporary storage and subsoil discharge; modular dry well systems
• Manufactured From Recycled Materials: Manufactured from 100% recycled materials
• Compliance: Complies with stormwater regulations
• California Proposition 65: This product contains chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm
• Installation Note: Assembles with grooves at base of Flo-Well side panels
