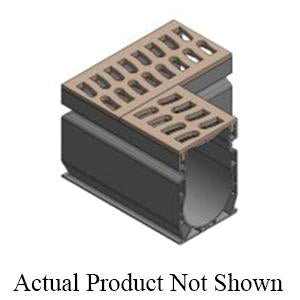

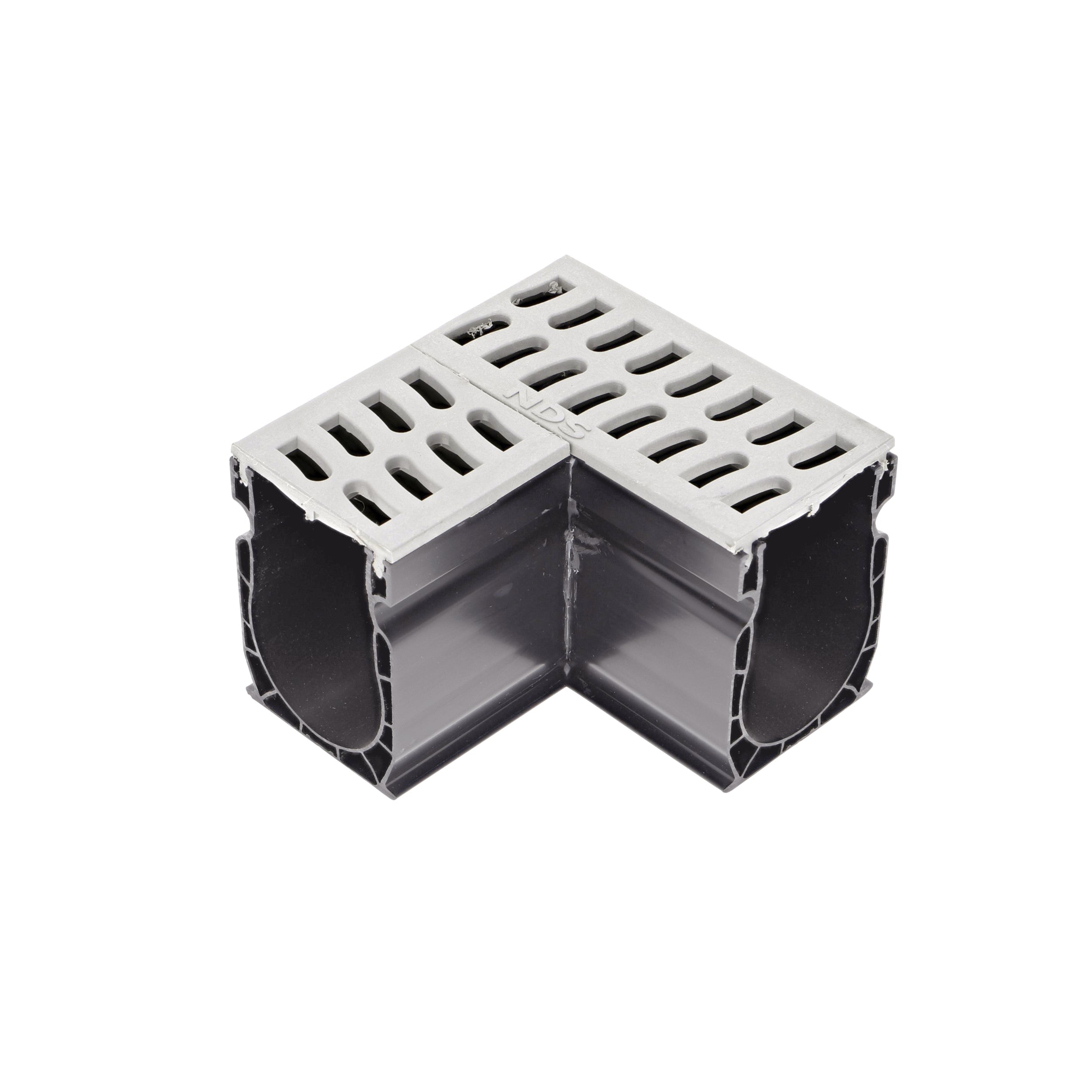

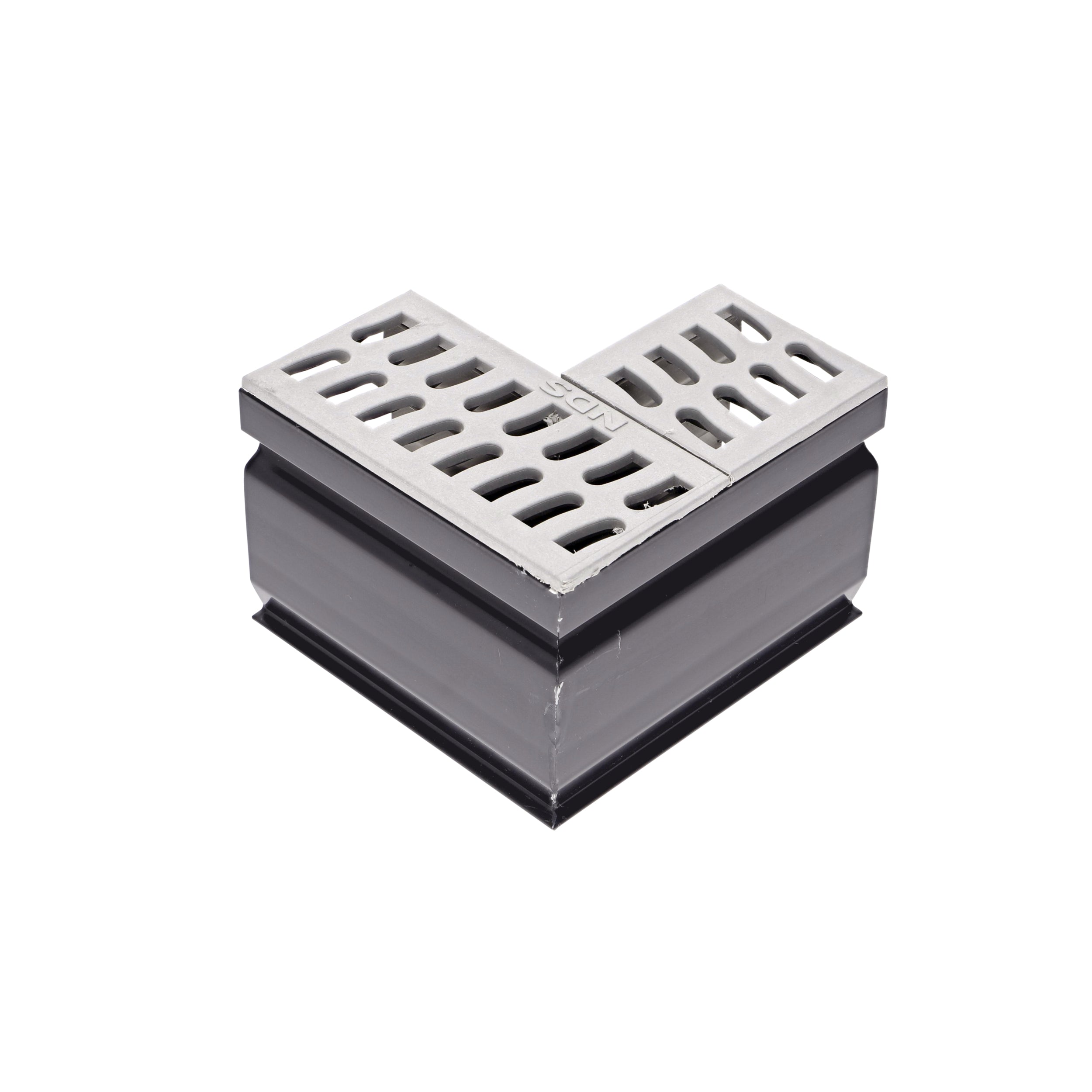

Nds 9383 Slim Channel Fabricated 90 Gray

Product Description

The NDS 9383 slim channel fabricated 90-degree angle fitting is designed for efficient water drainage in landscaping and hardscaping applications. This component integrates with NDS Slim Channel systems, providing a solution for managing surface water runoff. Channel drains prevent mildew growth and concrete staining.

• Channel drain and grate have a 90 0 bend to make turns to left or right to customize layout
• ADA Compliant
• Class A Load Rating (1-60 PSI)

Product Highlights

The NDS Slim Channel series interfaces with Schedule 40 PVC pipe fittings. It is chemically resistant and rustproof.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 9383

Technical Specifications

• Grate Width: 2.25" for NDS Slim Channel
• Grate Thickness: 0.25" with T-Top
• Grate Material / Color / Finish: Plastic/HDPE - Gray
• Manufacturer: NDS
• System: Slim Channel
• Grate Load Class: Class A
• Grate Pattern: SLOTTED
• Grate Pattern Style: SLOTTED
• Channel Material: Plastic - (PP, HDPE, PE)
• Channel Frame / Edging: Frame - None and Edging - None
• Application: Residential
• Use With: NDS Slim Channel products and accessories
• ADA Compliant: Yes
• Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)
• Angle: 90 deg
• Color: Gray
• Overall Height: 3-1/8 in
• Overall Length: 4-1/2 in
• Overall Width: 4-1/2 in
• Special Order Item: N
• Suitable For Use With: NDS Slim Channel Systems
• Compatible with: NDS Slim Channel drainage system
• Load class: Suitable for pedestrian and light vehicle traffic
• UV resistant: Yes
• Chemical resistant: Yes
• Freeze-thaw cycle resistant: Yes
• Additional Information: Flat-Style, Low Capacity
