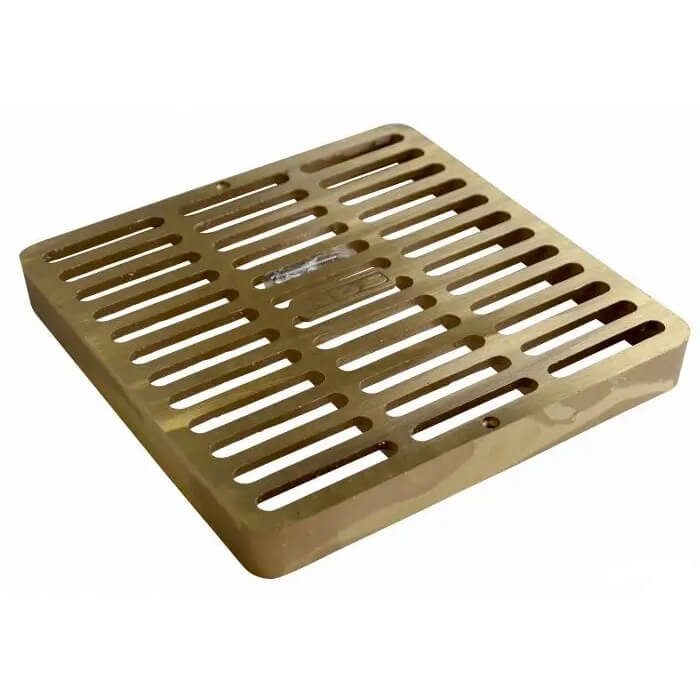

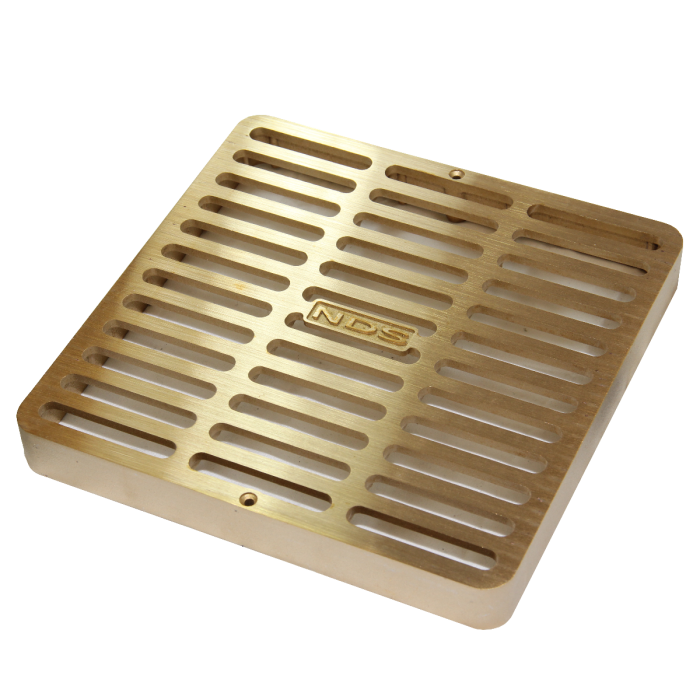

Nds 930B Square Grate 9 inch

Product Description

The NDS 930B grate is a proven alternative to traditional concrete drains. UV inhibitors prevent fading and cracking from the sun. It is chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. This grate helps collect and remove excess water from driveways and patios. Designed for maximum durability to handle light foot traffic.

• UV inhibitors prevent fading and cracking from the sun
• Chemical-resistant and rustproof
• Lightweight and easy to install

Product Highlights

The NDS 930B square grate is ideal for managing excess water in outdoor areas. Its durable construction and easy installation make it a practical drainage solution.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 930B

Technical Specifications

• Product Type: Grate
• Material: Brass
• Length: 8.88"
• Width: 8.88"
• Height: 1.13"
• Shape: Square
• Size: 9"
• Actual dimension: 8 7/8" x 8 7/8" x 1 1/8"
• Open surface area: 39.5 square inches
• ADA Compliant: Yes
• Recommended for: Medium-duty pneumatic tire traffic, autos and light trucks less than 20 mph with proper installation
• Load rating: Based on encasing product in concrete
• Fits: 9" Catch Basin Series part numbers 900, 900-4, 916, 930,931,932
• Brand: NDS
• Part Number: 930B
• Grate Opening: 7/16"
• Open Surface Area: 34 Sq. Inches
• Gallons Per Minute: 147 GPM
