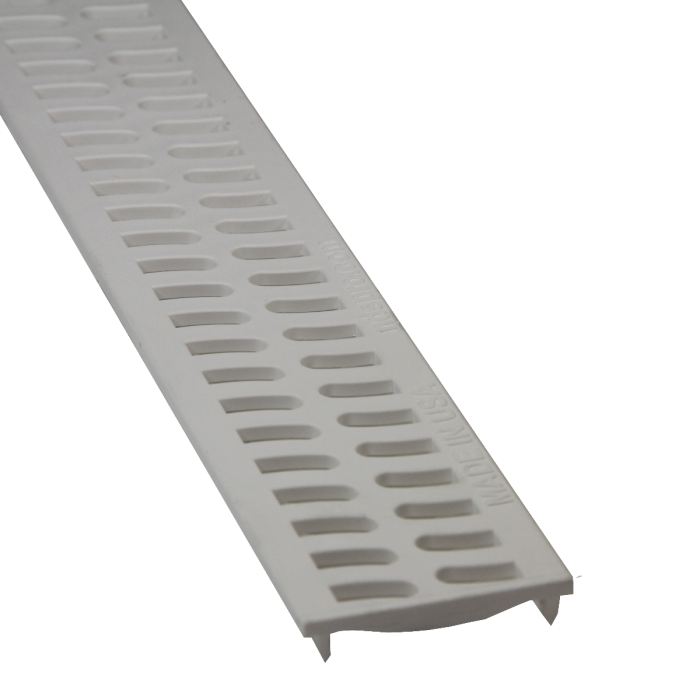

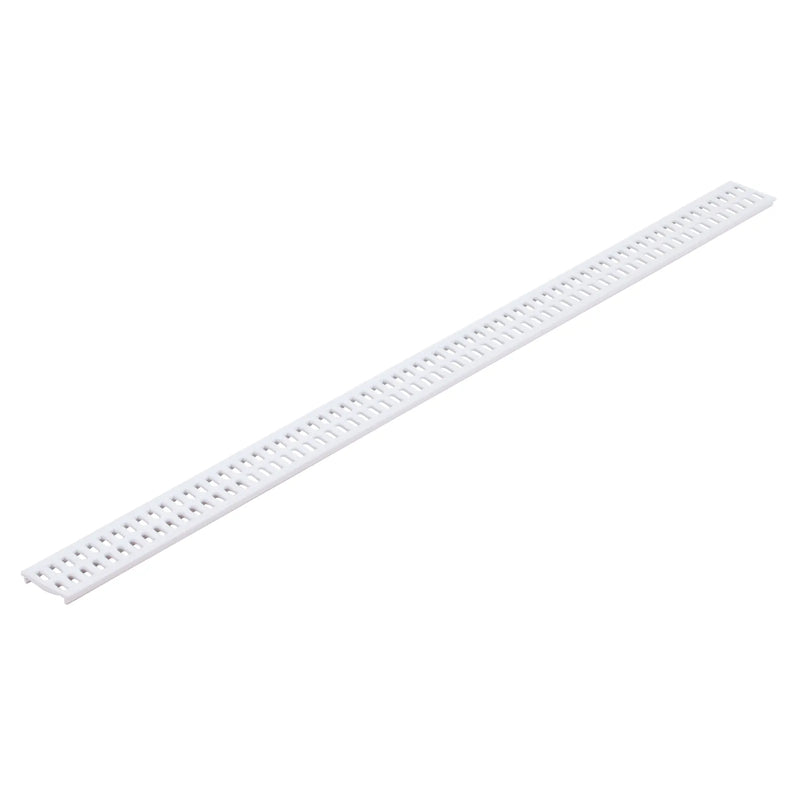

Nds 9241 Slim Channel 3 ft. White Grate

Product Description

The NDS 9241 Slim Channel Grate is designed for use with NDS slim channel drains. It features a snap-in design for easy installation and maintenance. The slotted pattern offers a flow rate of 21 gallons per minute, ensuring efficient water removal for outdoor living areas. Suitable for residential outdoor living areas such as pools, spas, paver patios and slab patios.

• ADA Compliant
• Heel-Proof
• Snap-in grate
• Easy installation and replacement
• Slotted pattern provides an excellent flow rate of 21 gpm per foot

Product Highlights

The NDS 9241 Slim Channel Grate is durable with corrosion-resistant polypropylene construction. Ideal for residential outdoor areas such as pools, spas, and patios.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 9241

Technical Specifications

• Grate Width: 2.25" for NDS Slim Channel
• Grate Thickness: 0.25" with T-Top
• Grate Material / Color / Finish: Plastic/HDPE - White
• Manufacturer: NDS
• System: Slim Channel
• Grate Load Class: Class A
• Grate Pattern: SLOTTED
• Grate Pattern Style: SLOTTED
• Channel Material: Plastic - (PP, HDPE, PE)
• Channel Frame / Edging: Frame - None and Edging - None
• Application: Residential
• Additional Information: Slotted Design
• Color: White
• Flow Rate: 21 gpm
• Height: 0.42 in
• Length: 3 ft
• Material: Polypropylene
• Opening Size: 0.248 in
• Shape: Flat
• Suitable For Use With: Slim Channel Drains
• Surface Area: 7.01 sq-in/ft
• Use With: NDS Slim Channel Drain (#9206)
• ADA Compliant: Yes
• Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
• Open Surface Area: 7.01 sq. in / linear foot
• Gallons Per Minute: 21.44 GPM / linear foot
