Nds 913B square grate with PVC collar (5 in.) replacement 913B

Brand: NDS
SKU: 913B
Availability: In Stock

Ships same day if ordered by 12 pm
$89.47
$89.47
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

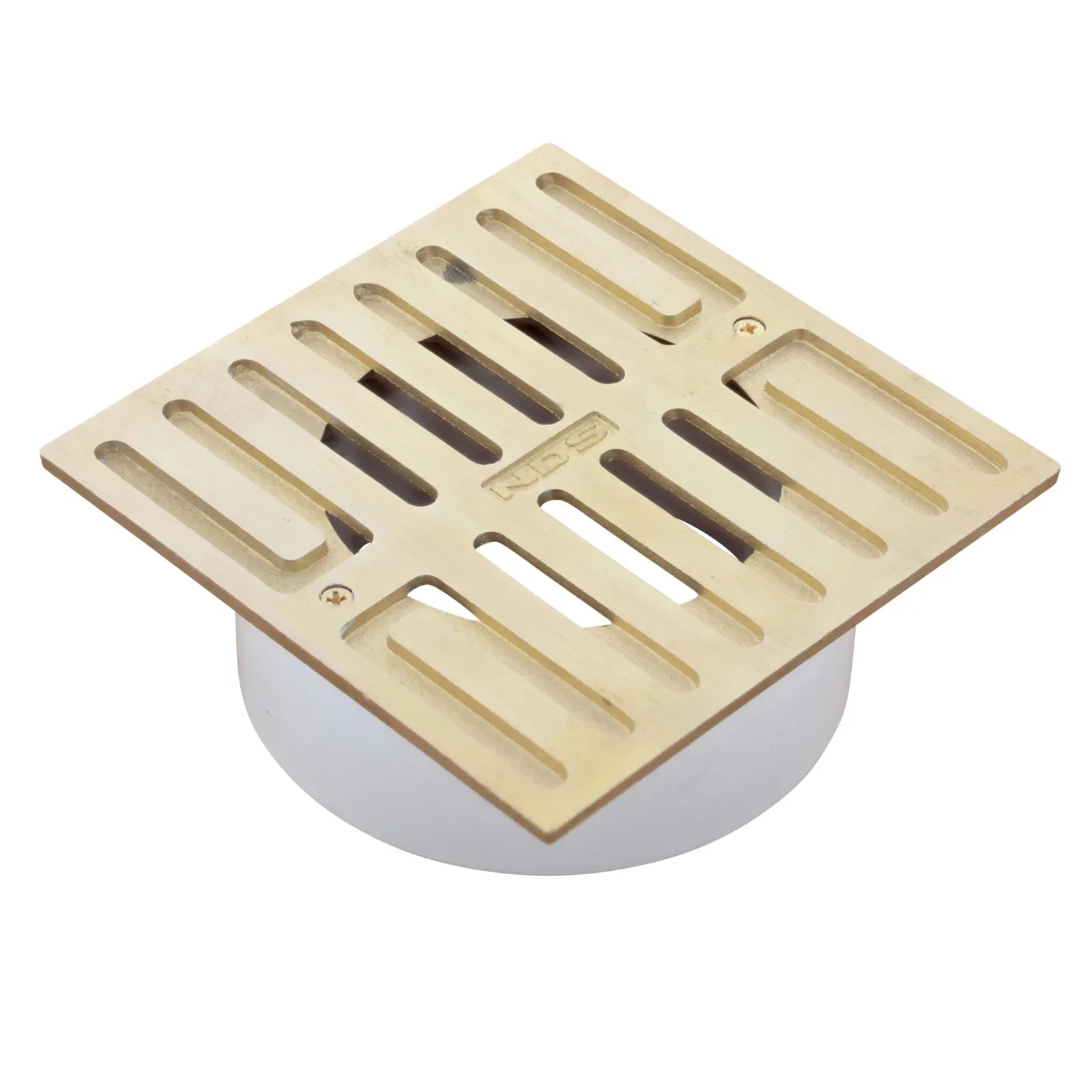

Nds 913B is a 5 in. square brass grate mounted on a PVC collar designed to collect and direct surface water into sewer and drain pipe. The brass grate has 3/8 in. heel-proof slots, a nominal open surface area of 3.00 sq. in., and a flow capacity of 7.65 GPM (at 1/2 in. head). It fits 3 in. and 4 in. sewer and drain fittings and is ADA compliant.

  • Brass grate on PVC collar; PVC collar treated with UV inhibitors; chemical-resistant and rustproof
  • Dimensions: top 4.75 in. x 4.75 in.; height 1.75 in.; thickness 3/16 in.; grate openings 3/8 in.; open surface area 3.00 sq. in.
  • Flow 7.65 GPM (at 1/2 in. head); fits 3 in. sewer and drain pipe, 3 in. triple-wall pipe, and 4 in. sewer and drain fittings; Class D load rating; ADA compliant

Product Highlights

5 in. square brass grate with PVC collar; 7.65 GPM; fits 3 in. and 4 in. pipe

Product Information

Standard Information

  • Brand: NDS
  • Manufacturer Part Number: 913B
Technical Specifications
Brand
Nds
MPN
913B
Category
Interceptor
Material
Brass grate with PVC collar
Collar Treatment
PVC collar treated with UV inhibitors
Size
5 in. square (nominal)
Top Size
4.75 in. x 4.75 in.
Dimensions
Top 4.75 in. x 4.75 in.; Height 1.75 in.; Thickness 3/16 in.
Grate Opening
3/8 in.
Open Surface Area
3.00 sq. in.
Flow Rate
7.65 GPM (at 1/2 in. head)
Compatible Connections
Connects to 3 in. sewer and drain pipe, 3 in. triple-wall pipe, and 4 in. sewer and drain fittings
Mounting
Mounted on PVC collar
Load Rating
Class D
ADA Compliance
ADA compliant
Grate Pattern
Slotted
Corrosion Resistance
Chemical-resistant and rustproof
Weight
1.21 lb
Applications
Small lawns, landscaped areas, patios, walkways, pedestrian traffic
