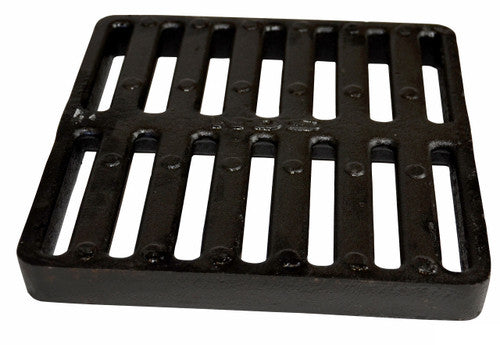

Nds 913 9 inches cast iron grate

Product Description

The NDS 913 9" Cast Iron Grate protects drainage systems by blocking leaves and debris from entering and potentially clogging the pipeline, while allowing excess surface water to flow through. Use with the 9" square catch basin, riser, or low-profile adapter to drain stormwater from driveways, parking lots, and landscaped areas.

• Made to fit 9" catch basins, risers, and low-profile adapters
• Ideal for yard/area drains to collect surface water while minimizing debris entry
• Protects 9" x 9" catch basins

Product Highlights

The NDS 913 cast iron grate is engineered for durability and efficient drainage in various outdoor settings. It effectively blocks debris while allowing water runoff.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 913

Technical Specifications

• Actual dimension: 9" x 9" x 1 1/8"
• Use with: 9" Catch Basin Series
• GPM: 46.77
• Open surface area: 35.70 square inches
• Loads: 176-325 psi
• H20 Rated: Yes
• Recommended for: heavy-duty pneumatic tire forklifts and tractor trailers at speeds less than 20 mph with proper installation
• Material: Ductile iron construction with a black protective finish to resist shipping corrosion and provide long-term durability.
• Dimensions: 9" L x 9" W x 1-1/8" H designed to fit the NDS 9" x 9" catch basin series and compatible risers and adapters.
• Performance: 9/16" grate openings block debris while enabling efficient runoff; open surface area and flow capacity support typical landscape and driveway drainage.
• Compatibility: Works with NDS 9" catch basins, risers, and low-profile adapters for flexible drainage layouts.
• Installation: Simple drop-in replacement or swap; follow NDS installation guidelines and encase in concrete to achieve rated load performance.
• Grate Width: 9.0" x 9.0" for NDS 900 Series
• Grate Height: 1.125"
• Weight: 8.0 lb
• Grate Material / Color / Finish: Ductile/Cast Iron - Raw
• Manufacturer: NDS
• System: 900 Series
• Grate Load Class: Class C
• Application: Residential, Decorative, Sports Complex - Recreational
