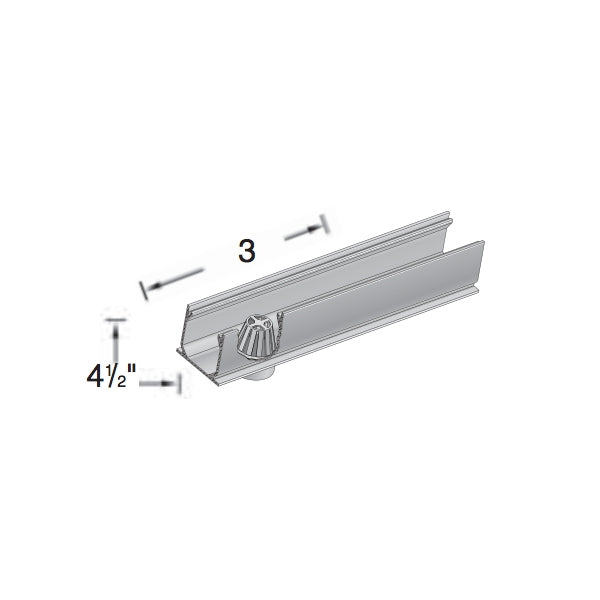

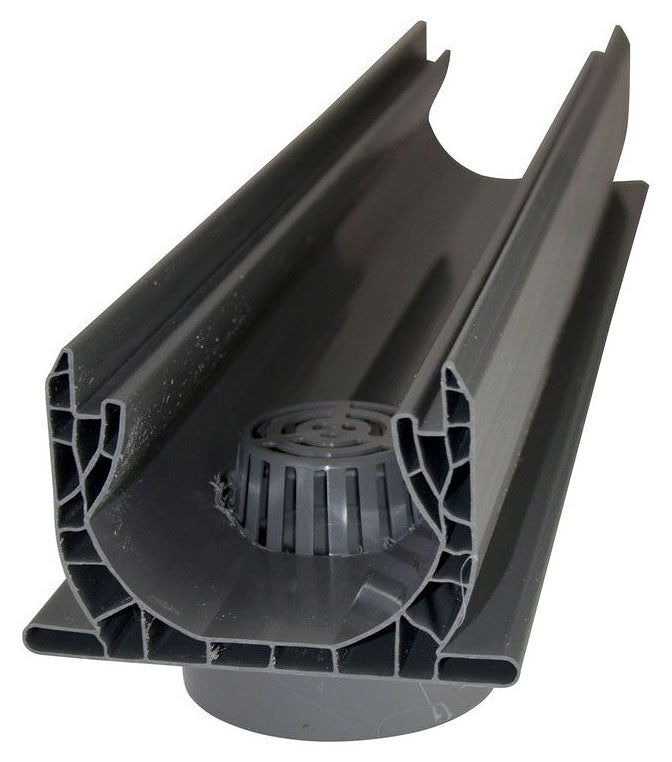

Nds 550 Mini Channel Drain 3 ft with 2 inches Spigot Bottom Outlet

Product Description

The NDS 550 Mini Channel Drain, with bottom outlet, is designed to efficiently remove water from hardscapes. Constructed from UV-stabilized PVC, this 3 ft channel section includes an integrated 2 in. Schedule 40 spigot bottom outlet. Ideal for light-duty applications such as pools, patios, spas, and tennis courts.

• Durable Polyolefin Parts are Lightweight and Easy to Install
• Component Parts Snap Together Easily for a Speedy Installation
• System Component are Chemically Resistant and Rustproof

Product Highlights

Effectively captures and directs light surface runoff away from pools, patios, walkways and other hardscapes.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 550
• Country of Origin: USA

Technical Specifications

• Application: Residential Pool, Concrete, Paver Patios, Spas, Tennis Court
• Inclusions/Features: 2 Inch Schedule 40 Spigot Bottom Outlet
• Load Classification: Light Duty
• Type: Bottom Outlet, Profile
• Part Number: 550
• Channel Width: 3-1/16 in.
• Channel Height: 3-1/8 in.
• Channel Length: 6 ft
• Length: 36"
• Width: 2.75"
• Height: 4-1/2"
• Size: 36"
• Brand: NDS
• Manufacturer Sku: NDS550
• Product Type: NDS Channel
• Material: Poly
• Grate Width: 2.75" for NDS Mini Channel
• Grate Thickness: 0.38" and 0.38" with T-Top
• Manufacturer: NDS
• System: Mini Channel
• Grate Load Class: Class A and Class B
• Grate Pattern: ACANTHUS
• Grate Pattern Style: NATURE
• Channel Material: Plastic - (PP, HDPE, PE) - Gray
• Channel Frame / Edging: Frame - None and Edging - None
