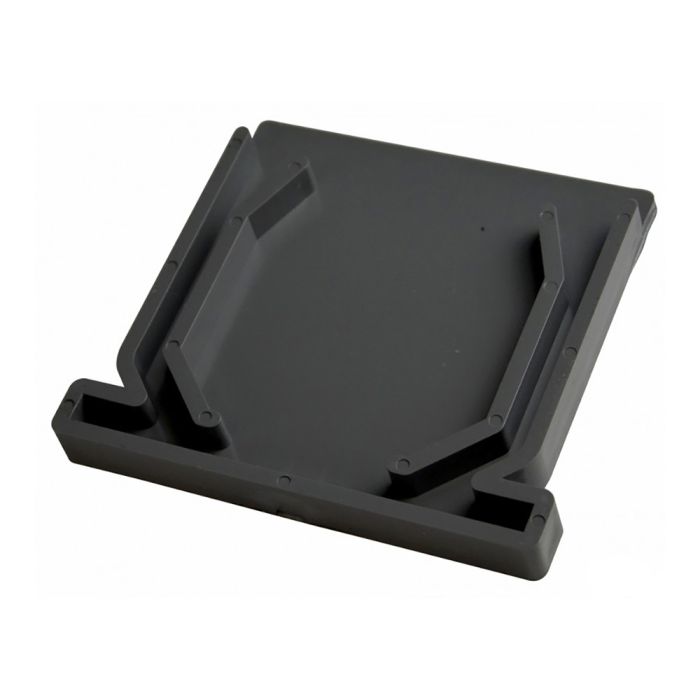

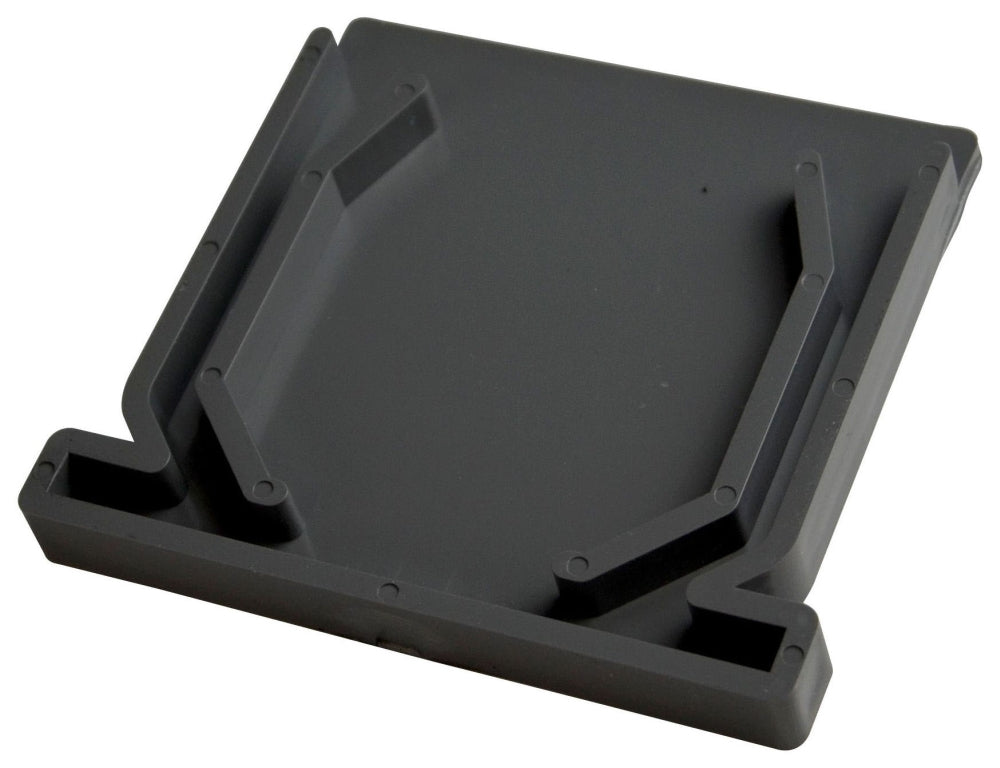

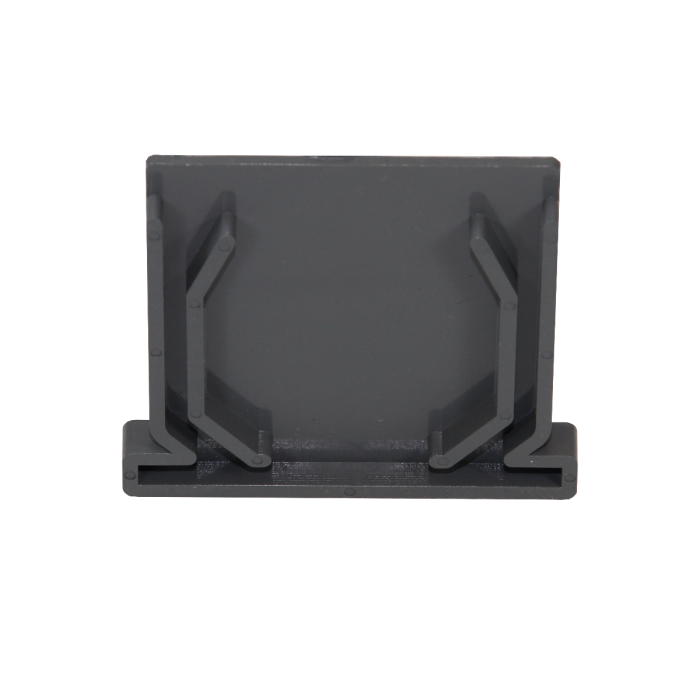

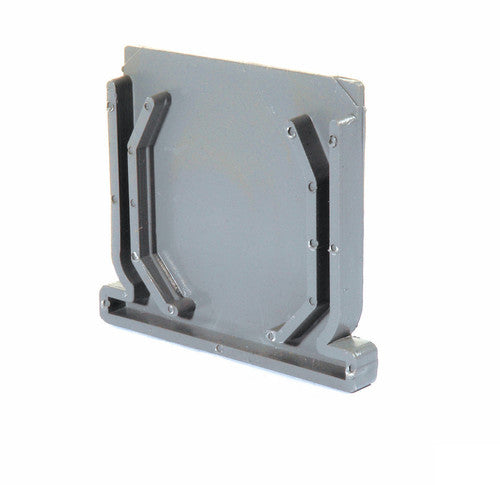

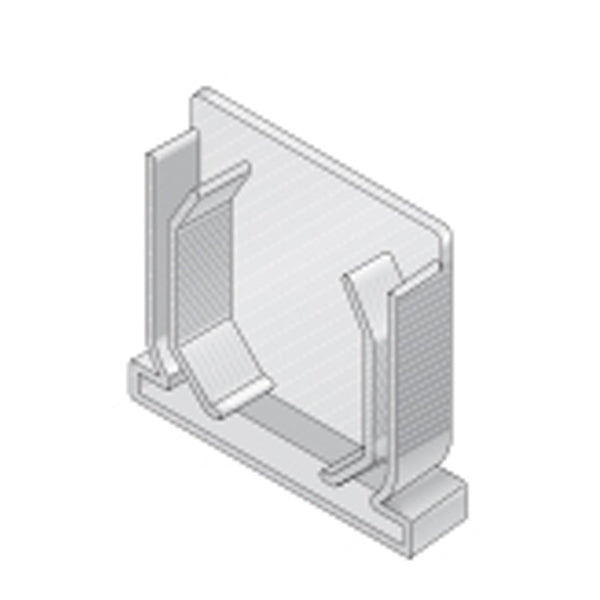

The NDS 547 Mini Channel End Cap, with a 3-inch size, is designed to cap off the Mini Channel at the end of a run. Ideal for residential or non-residential applications anticipating moderate drainage. It is a low-cost alternative to Spee-D Channel, suitable for light-duty use in pools, patios, spas, and tennis courts.
Ideal for residential or non-residential applications anticipating moderate amounts of drainage water.
Low-cost alternative to Spee-D Channel.
Made in USA
Product Highlights
The NDS Mini Channel End Cap is easy to install and provides a reliable solution for directing water flow in light-duty drainage systems.
Product Information
Standard Information
Brand: NDS
Manufacturer Part Number: 547
Country of Origin: USA
Technical Specifications
Brand Name
Mini Channel
CATALOG NUMBER
547
COMMODITY CODE DESCRIPTION LEVEL 3
Drain Components
Color/Finish
Gray
Item
End Cap
PC LSI WEBREADY
WEBREADY
PC OLD DISC CLASS
25PF
PC WEBREADY PRODCLASS
WEBREADY
Product Sub-Type
Drain Accessories
Product Type
Drains and Carriers
Size
3 Inch
TOTAL HITS
0
Used On Item
Channel Drain
Used On Model/Brand
Mini Channel
Fits
3" NDS Mini Channel drains (Model 547)
Material
High Density Polyethylene (HDPE)
Load Rating
Class B Load Rated (61-175 PSI)
Shape
Channel
Connects
directly to channel; can be solvent-welded for a watertight seal
Length
Compact 3.75" length and lightweight design for easy handling
Compatible
with Mini Channel fittings, outlets, elbows, and tees for system customization
Ideal for
pools, patios, driveways, sidewalks, and light vehicular areas
