Nds 543 3ft Mini Channel Grate

Product Description

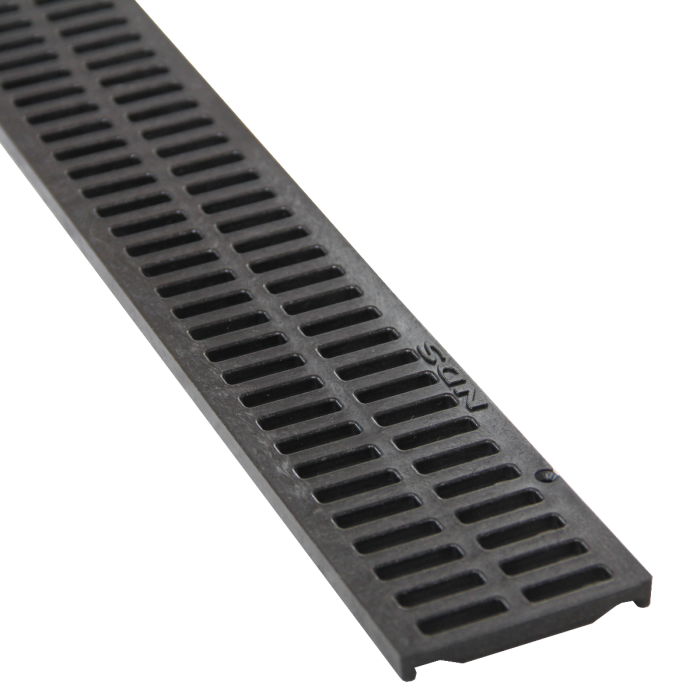

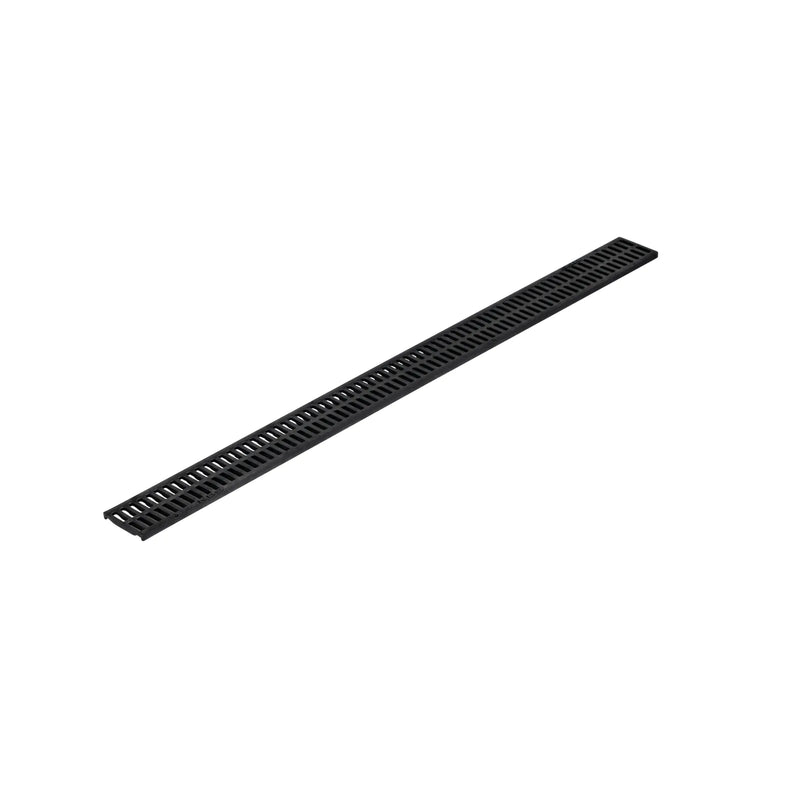

The NDS 543 Mini Channel Grate is a crucial part of the NDS Mini Channel drainage system. Designed to match any hardscape, it collects and removes excess water from outdoor areas, including driveways and patios. It is durable enough for light vehicular traffic.

• Designed to match any hardscape
• Collects and removes excess water from outdoor areas
• Durable enough for light vehicular traffic

Product Highlights

UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. Protect your investment with high-quality, easily configurable drainage.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 543

Technical Specifications

• Use With: NDS Mini Channel Drain (#500)
• Grate Opening: 1/4" x 5/16"
• ADA Compliant: ADA Compliant
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)
• Length: 36"
• Width: 2 3/4"
• Open Surface Area: 9.90 square inches per foot
• Grate Opening Size: 1/4 x 5/16 in
• Height: 1/2 in
• Color: Black
• Fits: #500 Mini Channel Drain
• Requires: 4 #529 screws per grate
• Actual Dimensions: 2.75" x 36"
• GPM: 30.29
• Flow Rate: 30.29 gpm
• Suitable For Use With: Mini Channel Drains
• Grate Width: 2.75" for NDS Mini Channel
• Grate Thickness: 0.38"
• Grate Material / Color / Finish: Plastic/HDPE - Black
• Manufacturer: NDS
• System: Mini Channel
• Grate Load Class: Class A and Class B
• Grate Pattern: ACANTHUS
• Grate Pattern Style: NATURE
• Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray
• Channel Frame / Edging: Frame - None and Edging - None
• Application: Decorative, Residential, and Sports Complex - Recreational
