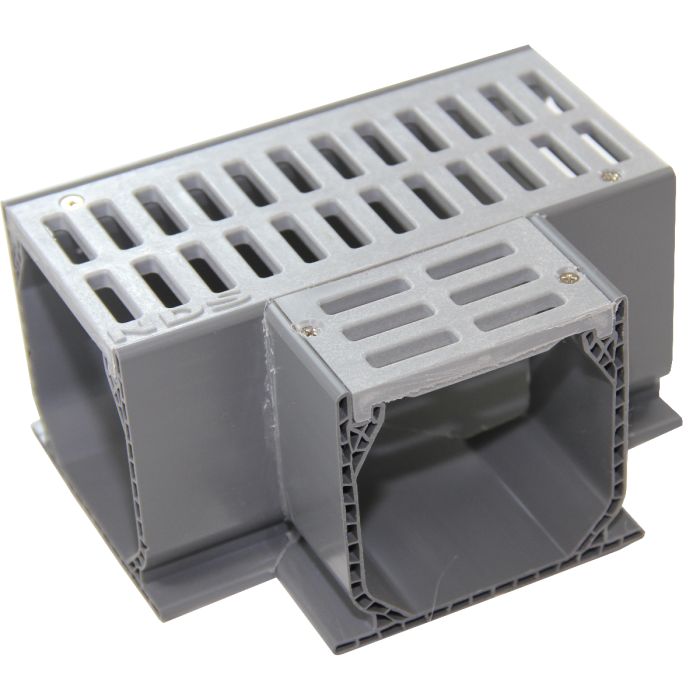

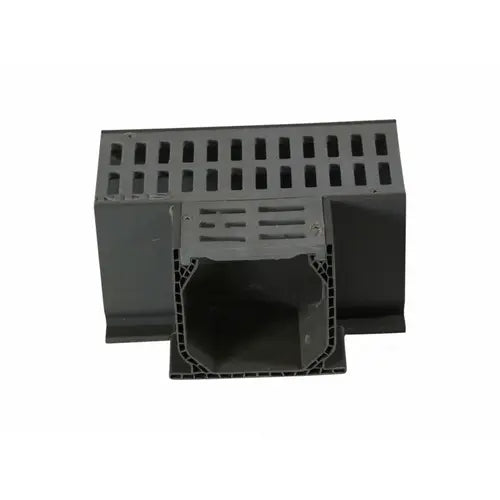

Nds 5370 Mini Channel tee with grate

Product Description

The NDS 5370 Mini Channel TEE expands your Mini Channel drainage system. This tee for the NDS Mini Channel System allows you to create your own unique drainage run. It connects directly to the NDS Mini Channel Drain system to divert surface water away from foundations and hardscapes.

• Expand your Mini Channel drainage system
• Tee for NDS Mini Channel System
• Supplied with pre-cut slotted grate

Product Highlights

Ideal for light-duty perimeter drainage, this fitting pairs with standard 6 ft. PVC Mini Channel sections to manage runoff around pools, patios, walkways and other residential or non-residential areas.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 5370

Technical Specifications

• Grate Width: 2.75" for NDS Mini Channel
• Grate Thickness: 0.38" and 0.38" with T-Top
• Manufacturer: NDS
• System: Mini Channel
• Grate Load Class: Class A and Class B
• Grate Pattern: ACANTHUS
• Grate Pattern Style: NATURE
• Channel Material: Plastic - (PP, HDPE, PE) - Gray
• Channel Frame / Edging: Frame - None and Edging - None
• Application: Decorative, Residential, and Sports Complex - Recreational
• Part Number: 5370
• Width: 4-1/2"
• Length: 6"
• Material: PVC
• Item: Fabricated Tee with Grate
• SubBrand: Mini Channel
