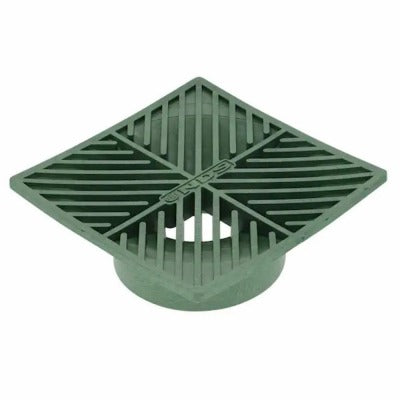

Nds 5 6-inch Square Drainage Grate Green

Product Description

The NDS 5 is a 6-inch square drainage grate in green, designed to capture and redirect excess surface water away from lawns, landscapes, patios, and atriums. The grate sits over a catch basin or drain outlet and channels runoff toward a curb, gutter, or other approved discharge point. It is compatible with 3-inch and 4-inch sewer and drain pipe, 3-inch and 4-inch corrugated pipe, and 3-inch and 4-inch Triple Wall pipe. Plumbers, irrigation contractors, and experienced landscapers typically handle installation in residential and light commercial drainage applications.

This grate is suited for surface drainage installations where standing water or sheet flow must be controlled and redirected. Common applications include large lawn areas, landscaped beds, paved patios, and enclosed atriums where pooling water can cause erosion, flooding, or structural damage. The green color blends with turf and vegetation for a low-profile finish in outdoor settings.

Key Features

• 6-inch square profile fits standard residential catch basin openings
• Green finish designed to blend with lawn and landscape environments
• Compatible with 3-inch and 4-inch sewer and drain, corrugated, and Triple Wall pipe
• Suitable for lawns, landscape beds, patios, and atriums
• Redirects surface runoff to curb, gutter, or approved drainage point

Compatibility

Compatible with 3-inch and 4-inch sewer and drain pipe and fittings, 3-inch and 4-inch corrugated pipe, and 3-inch and 4-inch Triple Wall pipe. Suitable for use in large lawn areas, large landscape areas, patios, and atriums.

Installation Notes

Installation is typically performed by a licensed plumber or qualified irrigation contractor in accordance with local drainage and plumbing codes. Excavate and seat the basin body before setting the grate to ensure a flush, stable surface. Confirm the outlet pipe size matches one of the compatible pipe diameters before assembly. Avoid installing in areas subject to vehicular traffic unless the basin and grate assembly are rated for that load.

Technical Specifications

• Grate Size: 6 inches square
• Color: Green
• Compatible Pipe Sizes: 3 inches and 4 inches
• Compatible Pipe Types: Sewer and drain pipe, corrugated pipe, Triple Wall pipe
• Weight: 4.5 pounds
• Unit of Measure: EA
• Package Quantity: 10

Standard Information

• Brand: NDS
• Manufacturer Part Number: 5
