Product Description

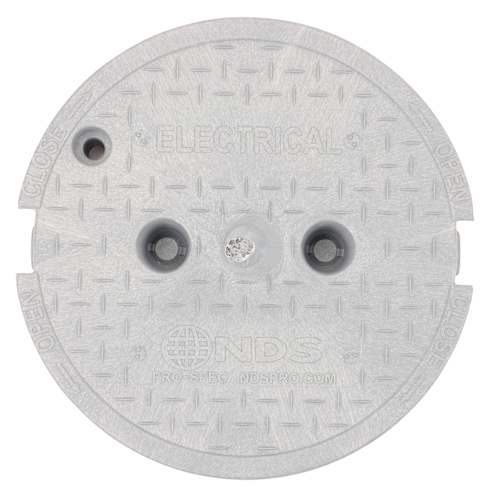

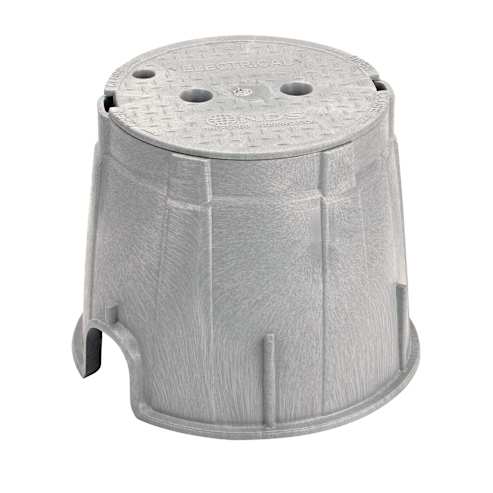

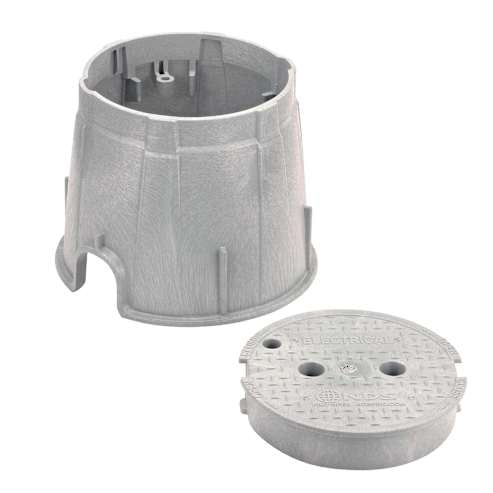

The NDS 312BC ELEC Pro-Spec valve box is made from high-density polyethylene treated with UV inhibitors. It features corrugated sidewalls for added strength and built-in pipe holes to avoid resting on piping. The overlapping bayonet twist-lock cover is labeled ELECTRICAL and includes finger indentations for easy removal.
- Made from high-density polyethylene treated with UV inhibitors
- Corrugated sidewalls for added strength
- Built-in pipe holes to avoid resting on piping
Product Highlights
This NDS valve box protects irrigation system components from the elements, foot traffic, lawn equipment, and potential vandalism.
Product Information
Standard Information
-
Brand: NDS
-
Manufacturer Part Number: 312BC ELEC
-
Country of Origin: USA
Technical Specifications
-
Brand: NDS
-
Actual Dimensions: 10-1/4 in. Dia Top x 12-3/4 in. Dia Bottom x 10 in. H
-
Dimensions: 10 in.
-

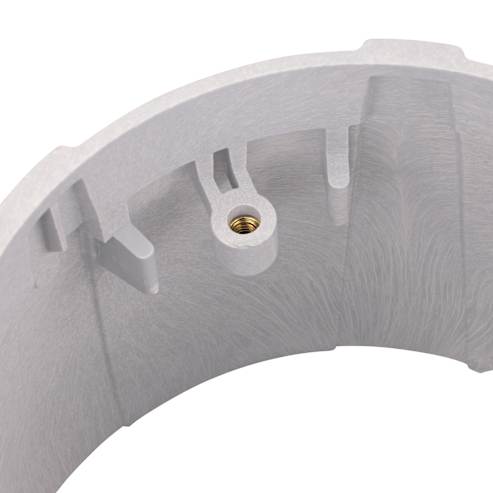

Includes: Overlapping Gray Cover, 3/8 in. - 16 TPI Brass Nut
-
Material: HDPE
-
Valve Box Marking: Electric
-
Part Number: NDB312BCELEC
-
MFG Number: 312BC ELEC
-
UPC: 052063053622
-
Color: Gray
-
Diameter: 10 in.
-
Lid Style: Overlapping
-
Series/Model: Pro-Spec
-
Corrugated sidewalls: Provided added strength while reducing weight; structural reinforcing ribs provide support and strength to protect items housed inside against damage
-
Reinforced covers: Handle heavier loads than Standard Series; overlapping cover prevents dirt and debris from entering the box
-
Overlapping cover: Prevents dirt and grass from settling in between body and cover
-

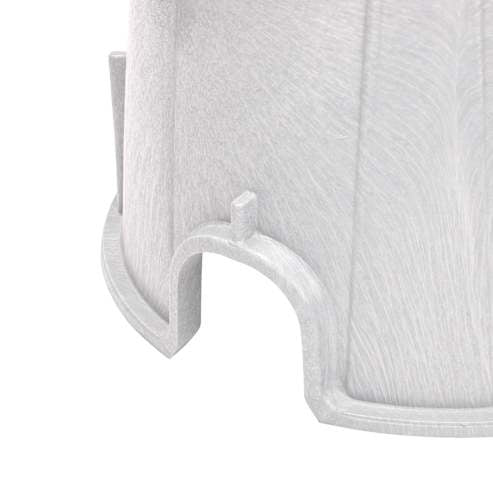

Built-in pipe holes: Allow irrigation piping to pass through the wall of the box so that the box does not rest on the pipe
-
Universal Locking Mechanism (ULM): Select models feature the patented which enables the valve box lid to be secured without requiring a traditional nut; works with a variety of bolts and screws
-
Applications: Protect irrigation system components from the elements, foot traffic, lawncare equipment, and potential vandalism, and keep them out of sight
-
Fits over: Valves, control zone kits, and other irrigation accessories
-
Use to protect: Irrigation system components
-
Materials: Box and cover made of high-density polyethylene (HDPE) treated with UV inhibitors
-
Made in: USA
-
Type: Box & Cover
-
Series: 212
-
Shape: Round
-
Access Type: Electrical
-
Country of Origin: US
-
Manufacturer: NDS
-
3/8 in -16 Brass Nut:
