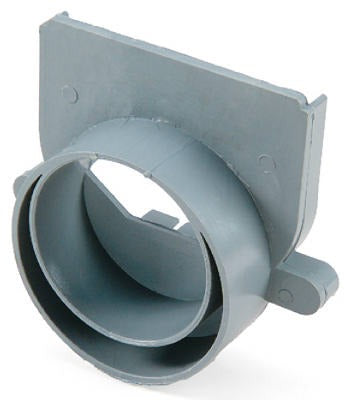

Nds 249 Offset End Outlet 3 Inch 4 Inch Drain Fitting

Product Description

The NDS 249 is a gray offset end outlet fitting designed for use in sewer drain systems where a standard in-line connection is not practical. The offset configuration allows the outlet to exit at a lateral angle rather than straight through, giving installers the flexibility to route pipe in tighter or offset installation scenarios. This fitting connects a 3-inch sewer drain pipe to 4-inch sewer drain fittings, bridging the size transition at the end of a drainage run. It is a gray PVC-style fitting typically installed by licensed plumbers working on residential or light commercial underground drainage systems.

This offset end outlet is suited for applications where the drain pipe transitions from a 3-inch line to a 4-inch fitting at the terminal end of a drainage assembly. The offset geometry is especially useful in trench drain, channel drain, or perimeter drain installations where the outlet must clear an obstruction or meet a specific exit point. Each package contains 10 units, making it practical for larger installations requiring multiple outlets along a drainage run.

Key Features

• Offset outlet geometry provides lateral exit angle for flexible pipe routing
• Connects 3-inch sewer drain pipe to 4-inch sewer drain fittings
• Gray color is standard for sewer and drainage applications
• Sold in packages of 10 units per package quantity
• Lightweight construction at 4 pounds per package

Compatibility

Designed for use with 3-inch sewer drain pipe and 4-inch sewer drain fittings as an offset end outlet in drainage system assemblies.

Installation Notes

Installation of this fitting is typically performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local drainage code requirements. Shut off and isolate the drainage system before making any connections. Ensure proper solvent cement or mechanical joining method is used per the pipe and fitting material specifications. Verify the offset direction and outlet orientation before final assembly, as the offset angle cannot be adjusted after cementing.

Technical Specifications

• Inlet Size: 3 inches
• Outlet Size: 4 inches
• Color: Gray
• Package Quantity: 10 per package
• Package Weight: 4 pounds
• Unit of Measure: EA

Standard Information

• Brand: NDS
• Manufacturer Part Number: 249
