Product Description

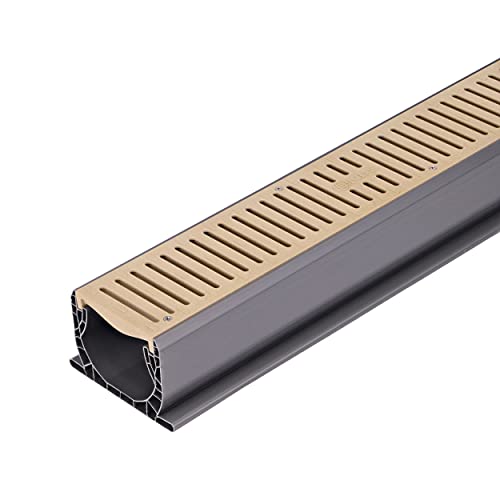

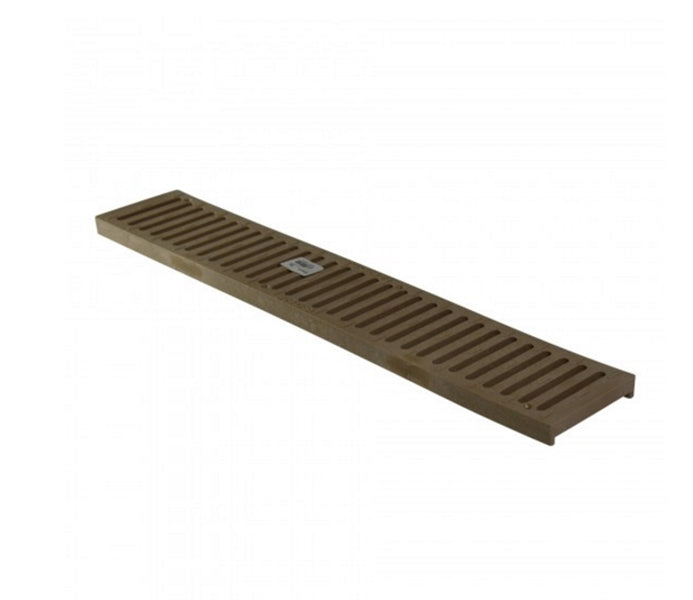

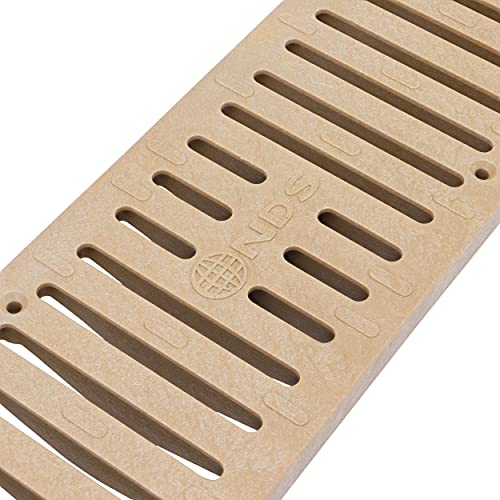

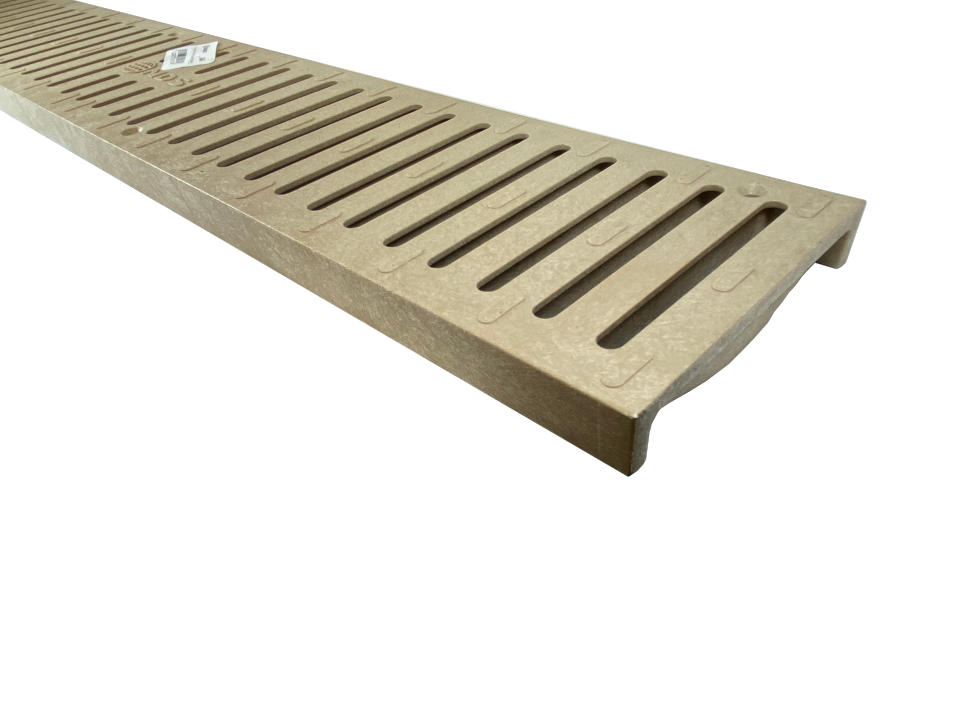

The NDS 244 Spee-D Channel Drain Grate is a 2 foot length x 4-1/8 inch width flat grate made of HDPE. It drains excess surface water while blocking leaves and debris from entering the channel drain. Ideal for driveways, large decks, and commercial areas.
- ADA Compliant
- Made in USA
- Profile Channel Drains have a Unique Patented Flying Buttress Design that Provides Load-Bearing Support from Both Sides as Well as Underneath
Product Highlights
The NDS 244 channel drain grate is suitable for residential and light-commercial drainage.
Product Information
Standard Information
-
Brand: NDS
-
Manufacturer Part Number: 244
-
Country of Origin: USA
Technical Specifications
-
Brand Name: Spee-D
-
CATALOG NUMBER: 244
-
COMMODITY CODE DESCRIPTION LEVEL 3: Drain Components
-
Color/Finish: Sand
-
Item: Grate
-
Material: High-density polyethylene (HDPE) with UV inhibitors
-
PC LSI WEBREADY: WEBREADY
-
PC OLD DISC CLASS: 25PF
-
PC WEBREADY PRODCLASS: WEBREADY
-
Product Sub-Type: Drain Accessories
-
Product Type: Drains and Carriers
-
Size: 2 Foot Length x 4-1/8 Inch Width
-
TOTAL HITS: 0
-
Type: Flat
-
Used On Item: Channel Drain
-
Used On Model/Brand: Spee-D
-
Material Type: Plastic
-
Power Source Type: Manual
-
Actual dimension: 4 1/8" x 24" x 3/4"
-
Open surface area: 19.3 square inches per foot / 25.28 GPM per foot
-
ADA Compliant / Heel Proof: ADA Compliant / Heel Proof
-
Recommended for: medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph
-
Class B Load Rating: 61-175 psi
-
Dimensions: 24" L × 4.13" W × 3/4" H; grate opening approximately 3/8" × 3-1/4"
-
Hydraulic Performance: Open surface area ≈16.8 sq in/ft; roughly 51 GPM per foot
-
Load & Compliance: Class B load rating; ADA-compliant
-
Compatibility: Fits NDS Spee-D channel systems
-
Grate Material: HDPE
-
Grate Opening: Slotted
-
Load Class: B
