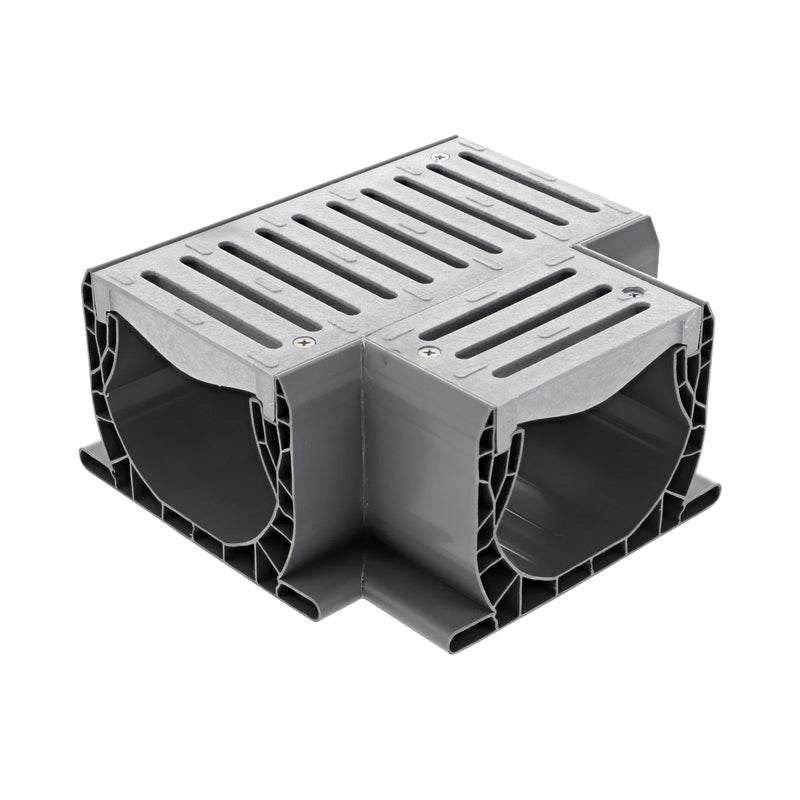

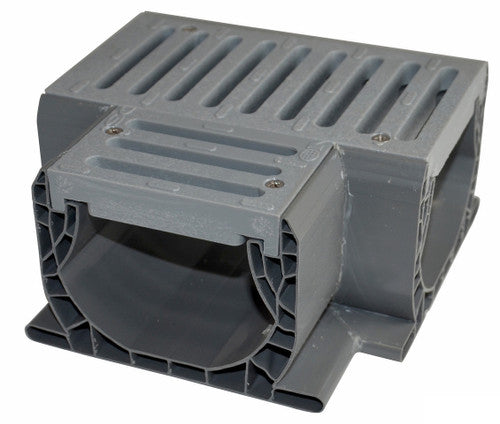

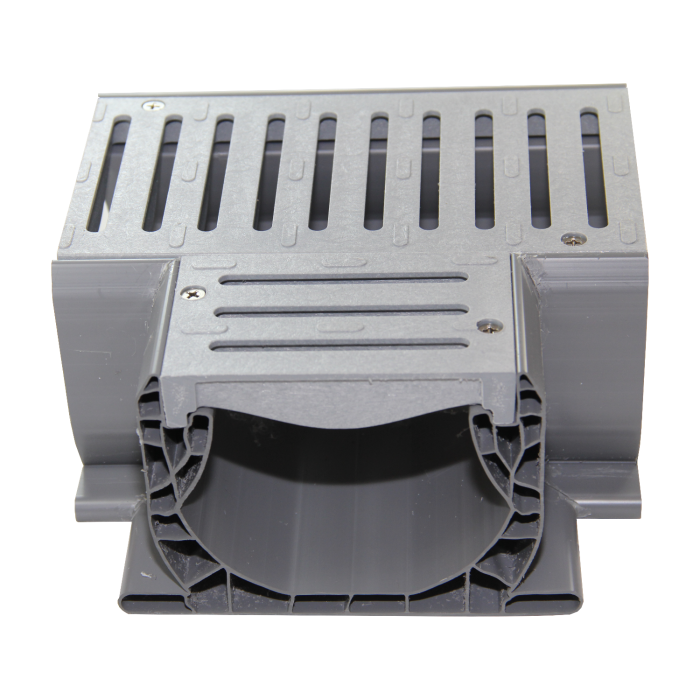

Nds 2371 Spee-D Channel Drain Plastic Tee and Grate

Product Description

The NDS 2371 Spee-D Channel Drain Fabricated Tee With Grate adds a tee intersection to your Spee-D Drain system layout. It efficiently drains moderate flows from driveways, patios, pool areas, and courtyards. Constructed with durable PVC material, it is chemically resistant and rustproof. Create a water-tight connection with solvent-weld PVC glue.

• Add a tee intersection to your Spee-D Drain system layout
• Drains moderate flows from driveway, patio, pool area, courtyard
• Create a water-tight connection with solvent-weld PVC glue

Product Highlights

This tee is ideal for residential pools, plazas, and paved parking lot courts. The snap-in grated top makes access and routine cleaning simple.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 2371
• Country of Origin: USA

Technical Specifications

• ADA Compliant: Yes
• GPM per foot: 25.28
• Open Surface Area: 19.3 square inches per foot
• Material: High Quality PVC
• Features: UV Inhibitors
• Grate Width: 4.13" for NDS Spee-D
• Grate Thickness: 0.75"
• Grate Material / Color / Finish: Plastic/HDPE - Gray
• Manufacturer: NDS
• System: Spee-D
• Grate Load Class: Class B
• Grate Pattern: OBLIO
• Grate Pattern Style: GEOMETRIC
• Channel Material: Plastic - (PP, HDPE, PE)
• Channel Frame / Edging: Frame - None and Edging - None
• Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential
• Compliance: ADA Compliant / Heel Proof
• Recommended for: medium-duty pneumatic tire traffic
• Suitable for: Autos and light trucks less than 20 mph
• Load Rating: Class B Load Rating: 61-175 psi
