Description

Product Description

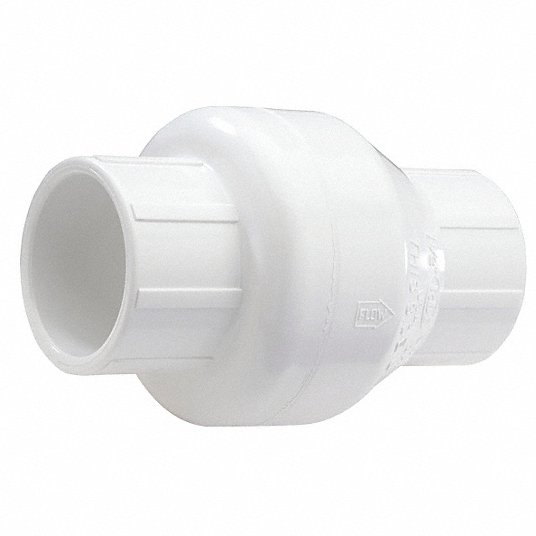

The NDS 1520-05 swing check valve features an inline swing mechanism and a PVC body. This 1/2" valve is designed for single flow and has a cracking pressure of 0.25 psi. Suitable for horizontal or vertical mounting, it uses an EPDM seal and operates between 14°F to 140°F.

  • Features a 1/2" pipe size and IPS Slip x IPS Slip connection type.
  • Constructed with a PVC body material for durability.
  • Designed with an inline swing mechanism.

Product Highlights

The NDS swing check valve is ideal for general purpose applications. It ensures reliable performance with its robust PVC construction and EPDM seal.

Product Information

Standard Information

  • Brand: NDS
  • Manufacturer Part Number: 1520-05
  • Country of Origin: United States
Technical Specifications
Flow
4.46 gpm
Item
Swing Check Valve
Seal
EPDM
Size
1/2"
Width
2 29/32 in
Length
4 19/32 in
Pipe Size
1/2 in
Standards
NSF 61
Max. Temp.
140 Degrees F
Flow Design
Single
Sub-Category
PVC
Body Material
PVC
Max. Pressure
125 psi @ 72 Degrees F
Seat Material
PVC
Overall Height
2 29/32 in
Connection Type
IPS Slip x IPS Slip
Cracking Pressure
0.25 psi
Mounting Orientation
Horizontal, Vertical
Full Flow - Valves
Yes
Max. Water Pressure
150 psi @ 70 Degrees F
Min. Temp.
14 Degrees F
Valve Body Style
Inline
Application - Valves
General Purpose
Material of Construction
PVC
Operating Temperature - Minimum
14 Degrees F
Operating Temperature - Maximum
140 Degrees F
Check Mechanism
Swing
For Media
Water
NSF Certifications for Food and Drinking Water
NSF 61
Connection Size - Side 1
1/2 in
Connection Type - Side 1
IPS
Connection Size - Side 2
1/2 in
Connection Type - Side 2
IPS
Nominal Valve Size
1/2 in
Type
Flapper
Maximum Pressure - Operating
125 psi
Country of Origin
United States
