Nds 1200MTLKIT 12 in. Square Catch Basin Kit (12 in.)

Product Description

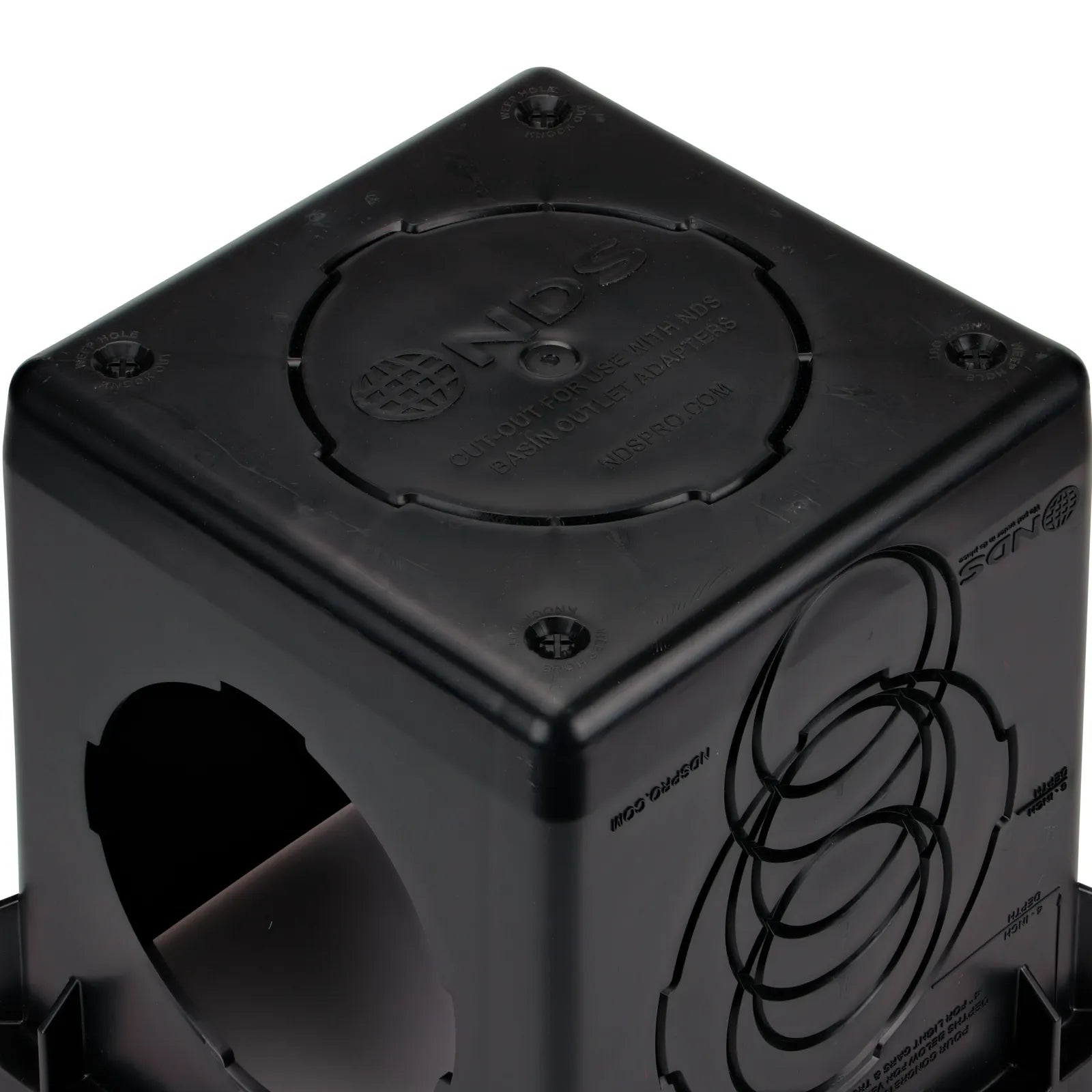

NDS 1200MTLKIT is a 12 in. square catch basin drain kit designed to capture heavy stormwater flows from driveways, parking lots, and landscaped areas. The kit includes a 12 in. catch basin with two keyed side openings, a galvanized steel square grate, two locking outlet adapters and a 6 in. outlet plug. The basin is molded of UV-stabilized polypropylene and features a built-in sump for access and cleaning. It connects to 3 in. and 4 in. drain pipe types.

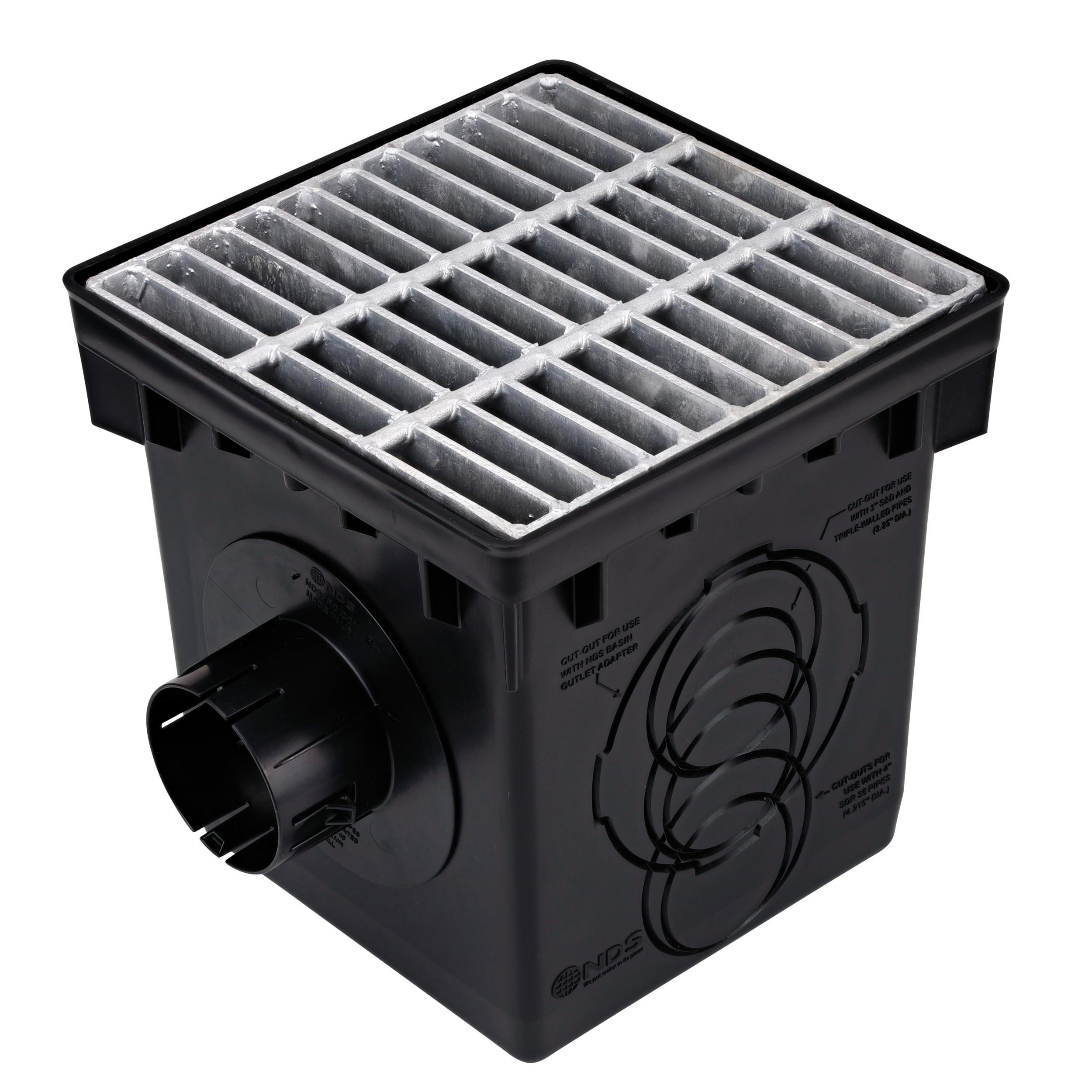

• Includes 12 in. polypropylene basin, galvanized steel square grate, two locking outlet adapters and one 6 in. outlet plug

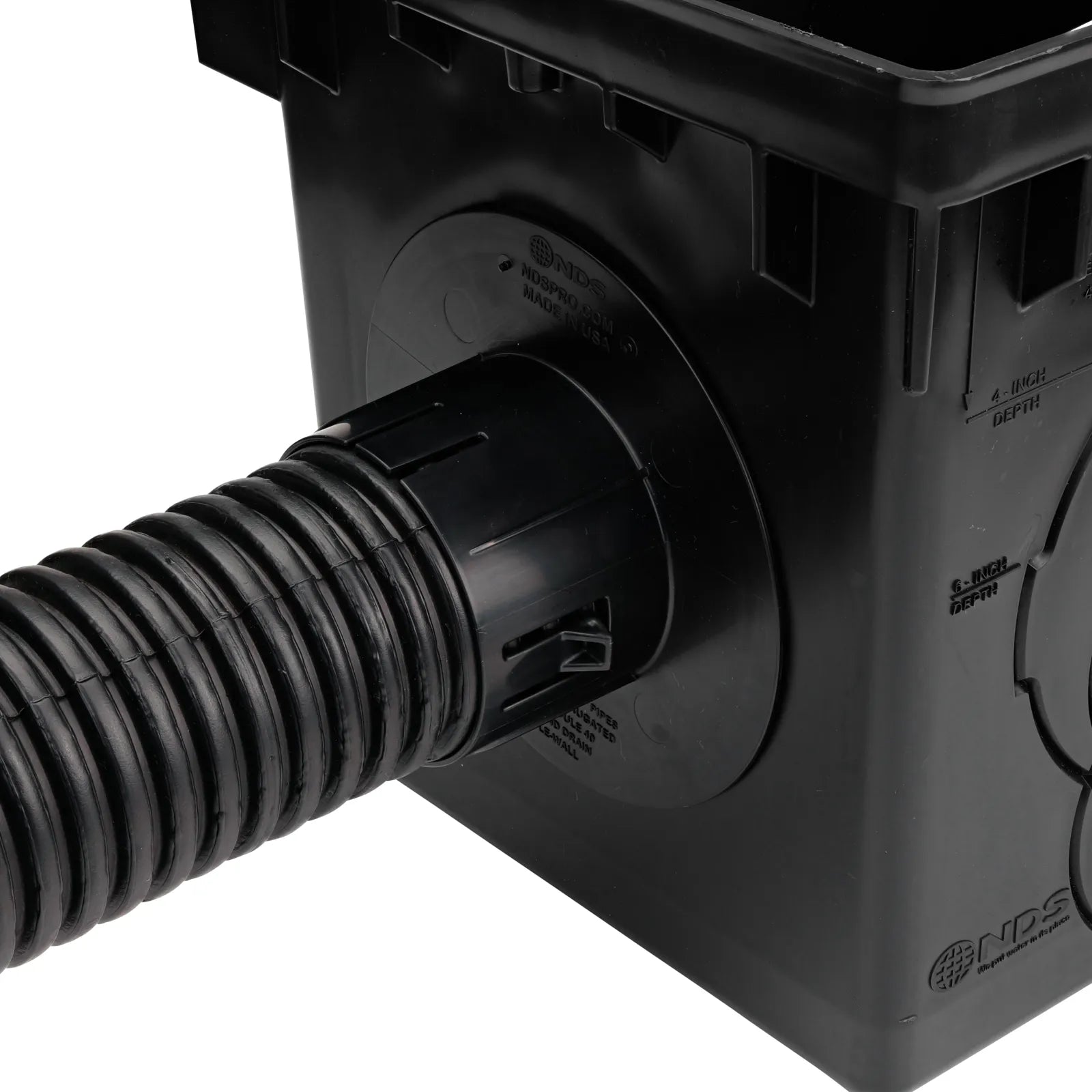

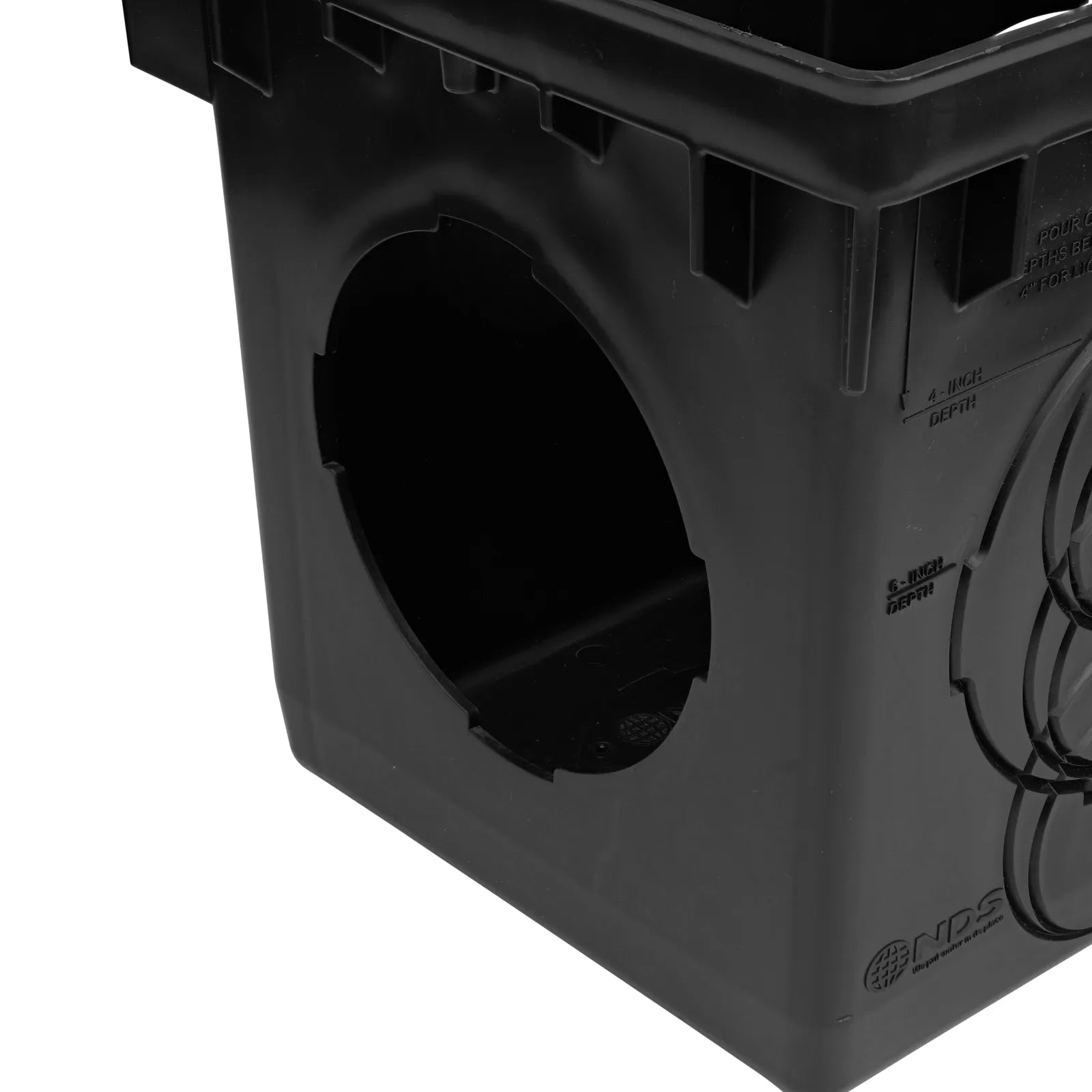

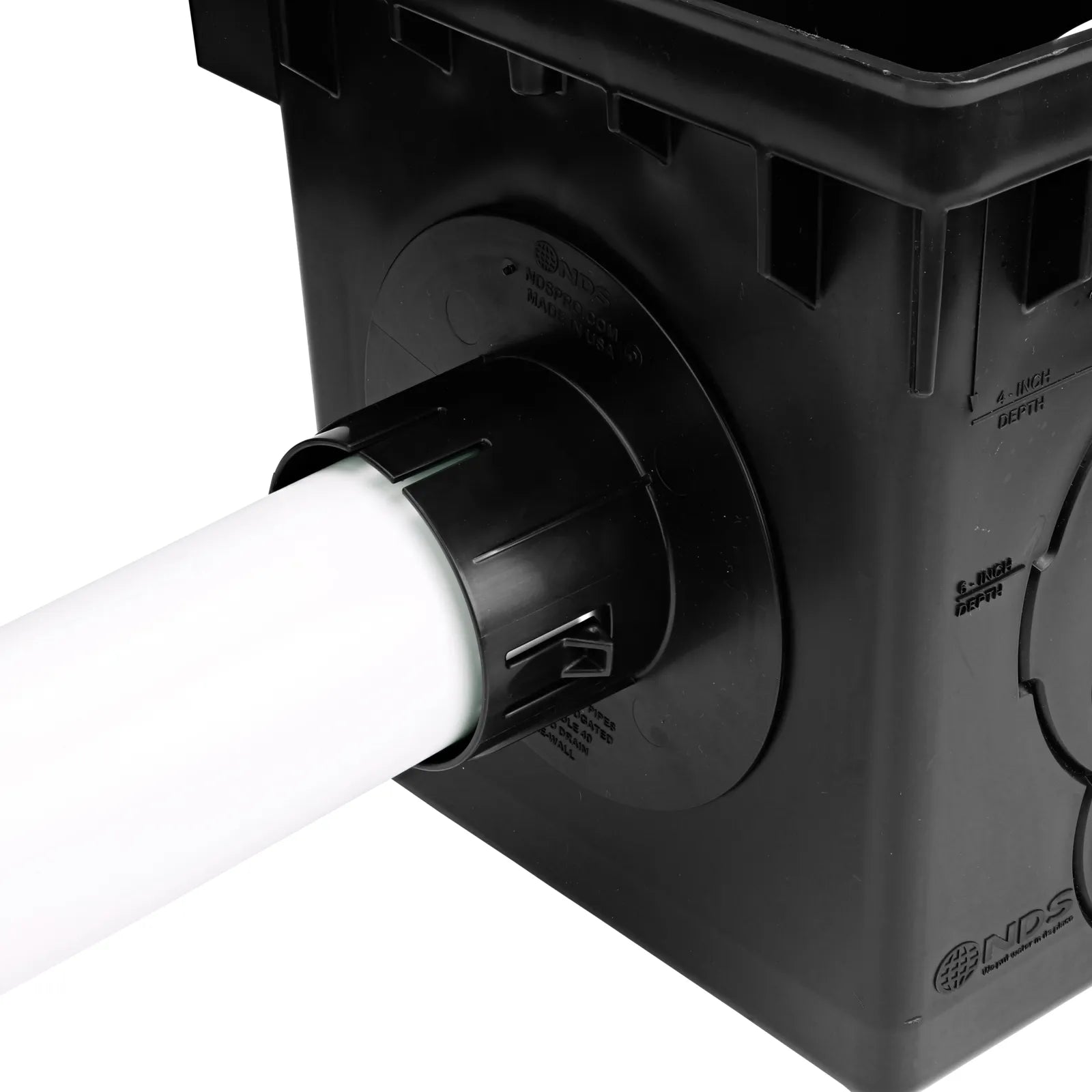

• Two keyed side openings accept locking outlet adapters that snap on for secure connection to 3 in. and 4 in. sewer, corrugated, triple-wall and DWV/Sch. 40 pipe
• Built-in sump for easy access and cleaning; basin material treated with UV inhibitors

Product Highlights

12 in. square catch basin kit with galvanized steel grate, two snap-on locking outlet adapters, 6 in. plug, built-in sump, and compatibility with 3 in. and 4 in. drain pipe types.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 1200MTLKIT

Technical Specifications

• Brand: NDS
• MPN: 1200MTLKIT
• Basin Size: 12 in.
• Basin Material: Polypropylene (PP) with UV inhibitors
• Number of Openings: 2
• Grate Material: Galvanized steel
• Grate Dimensions: 11 5/8 in. x 11 5/8 in. x 1 1/8 in.
• Open Surface Area: 122.30 square inches
• Flow Capacity: 160.21 GPM
• Included Components: 12 in. catch basin drain; 1 square galvanized steel drain grate; 2 locking outlet adapters; 1 outlet plug
• Compatible Pipe Sizes: Connects to 3 in. and 4 in. sewer/drain, single-wall corrugated, triple-wall, and DWV/Sch. 40 pipes
• Outlet Adapter Type: Locking outlet adapters (snap-on fit, no tape or glue required)
• Outlet Plug Size: 6 in.
• Built-in Sump: Yes (easy to access and clean)
• Width: 12-3/8 in.
• Height: 12-15/16 in.
• Weight: 15.1 lb
• UPC: 052063001777
• H20 Rated: Yes
• Load Rating: 176-325 psi (when encased in concrete)
• ADA Compliant: Yes
• Recommended Traffic: Heavy-duty pneumatic tire forklifts and tractor trailers at speeds less than 20 mph (with proper installation)
