Nds 1011-12 1-1/4 inches pvc ips spring check valve s by s 6-3/16 inches length

Product Description

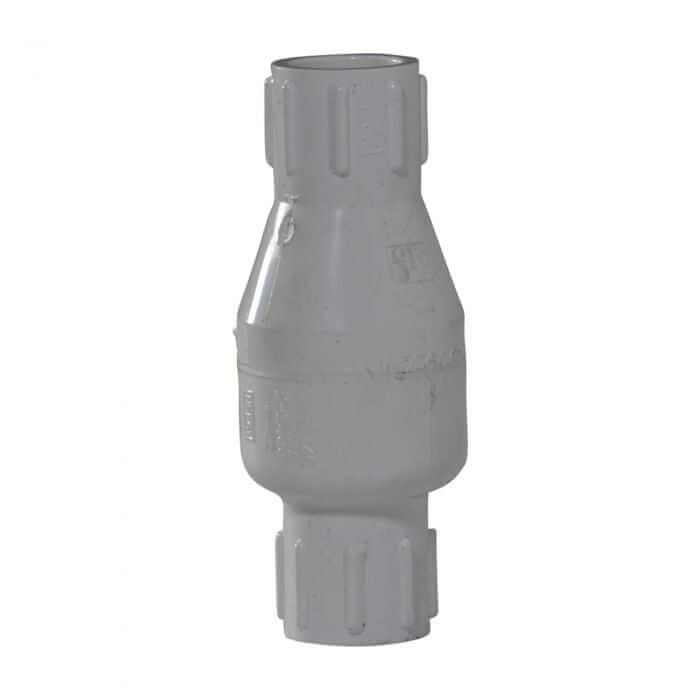

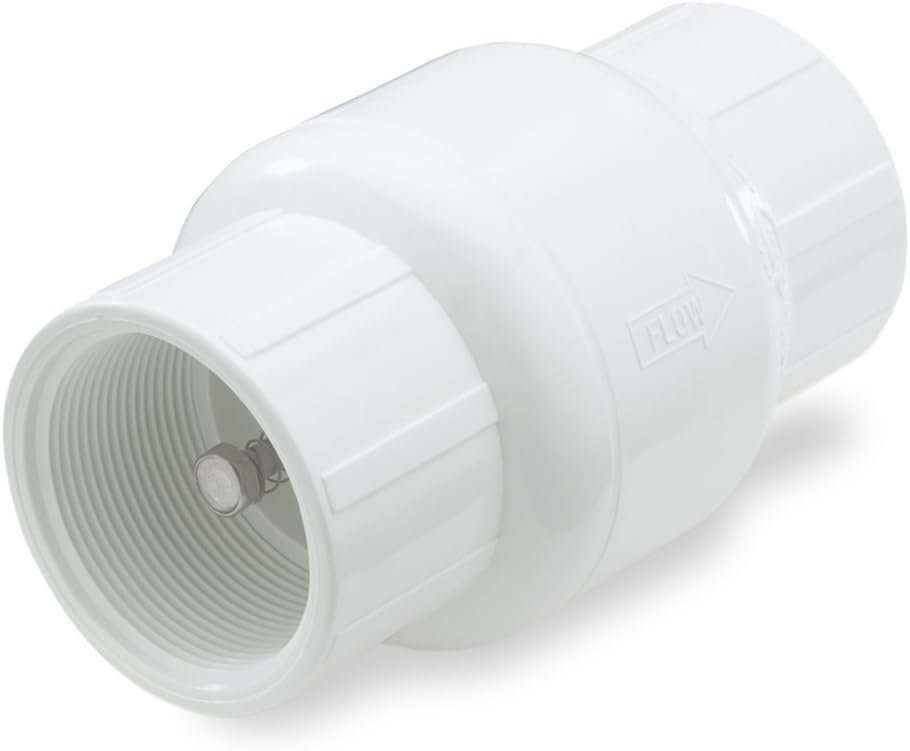

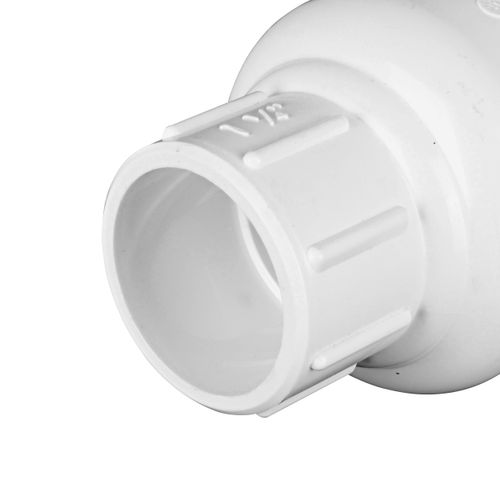

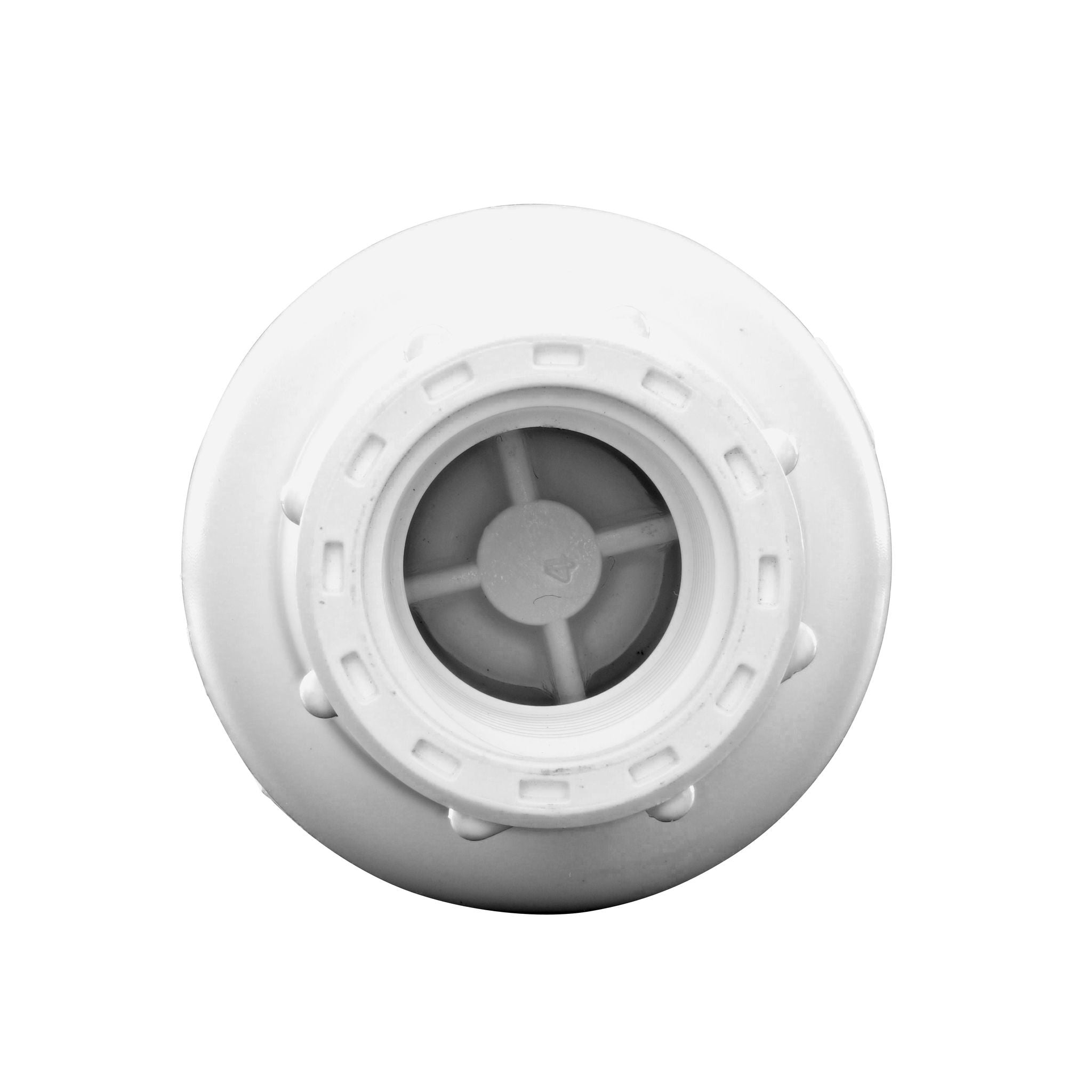

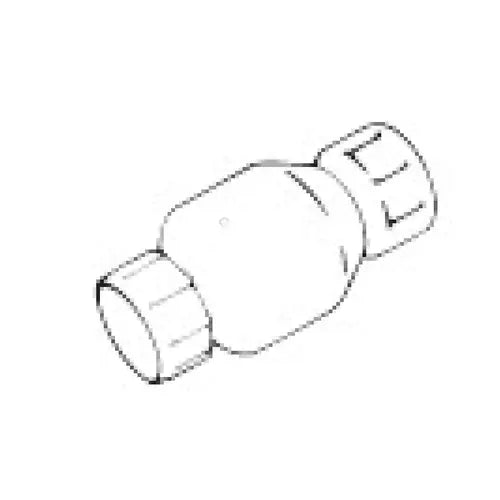

The NDS 1011-12 is a 1-1/4" PVC Ips Spring Check Valve S by S with a 6-3/16" length. Designed to prevent backflow and maintain prime in water systems. It complies with all applicable ASTM & ANSI standards. The 1/2 lb. spring ensures a positive seal without back pressure.

• Made of Plastic
• Complies with all applicable ASTM & ANSI standards
• Rated @200 PSI Static Pressure @ 72 F

Product Highlights

This spring check valve is ideal for preventing backflow in spas, swimming pools, industrial, and irrigation systems.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: 1011-12
• Country of Origin: USA

Technical Specifications

• Material: Plastic
• Exterior Finish: Pvc
• Specification Met: Ansi
• Size [Features]: 1-1/4" x 1-1/4"
• Approvals [Features]: NSF61, NSF372
• Connection Type: Socket x Socket
• Pressure Rating: 200 psi
• Connection Method: Socket
• Open Pressure (PSI) [Features]: 0.58
• Connector Type: Slip
• Thread Size: 1 1/4
• Nominal Size: 1-1/4
• Trim Material: Stainless Steel
• Body Material: PVC
• Softgoods Material: EPDM Rubber
• Temperature Rating: 72
• Standards Met: NSF 61, NSF 372
• Connection: Socket x Socket Connection
