Ndl Industries W4095 Copper Reducing Tee Cxcxc

Product Description

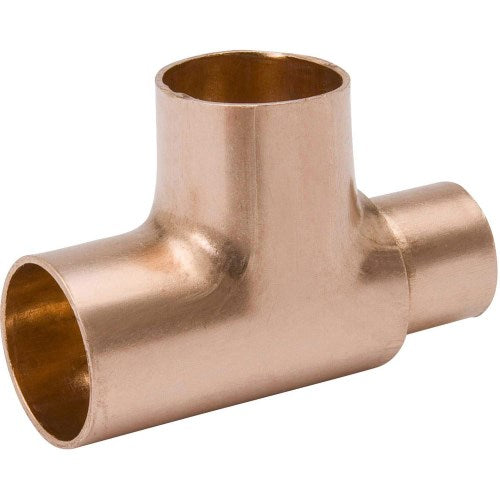

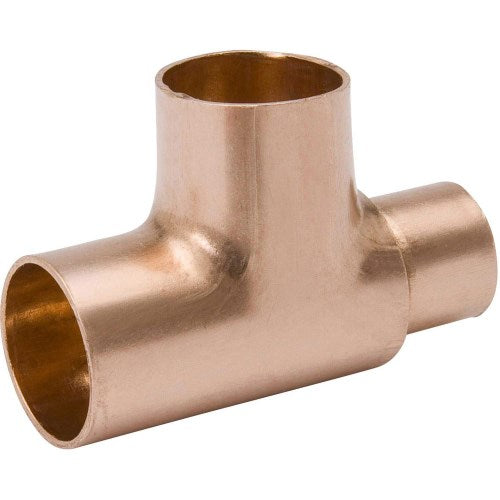

The NDL INDUSTRIES W4095 is a copper reducing tee designed for sweat-connection plumbing and refrigeration piping systems. It joins three copper lines in a tee configuration with a reduced branch outlet, allowing a change in line size at the branch without additional fittings. The run connections measure 1-5/8 inches on both ends, and the branch connection measures 1-1/8 inches. All three connections are solder-cup (C x C x C) ends. Licensed plumbers and HVAC refrigeration technicians install this fitting in both new construction and retrofit work.

This reducing tee is suited for residential and light commercial applications where a copper sweat piping system requires a branch takeoff at a smaller diameter. Typical uses include refrigerant distribution piping, domestic hot and cold water supply lines, and hydronic heating loops. The all-copper construction is compatible with standard brazing and soldering procedures used in refrigeration and plumbing trades.

Key Features

• Reducing tee configuration allows a branch connection at a smaller pipe size than the run
• Run connections: 1-5/8 inches x 1-5/8 inches; branch connection: 1-1/8 inches
• C x C x C solder-cup ends for standard sweat or braze joining
• Copper construction for compatibility with refrigerant, water, and hydronic fluid service

Compatibility

Designed as an OEM-style copper sweat fitting for use with 1-5/8 inch and 1-1/8 inch OD copper tubing in plumbing or refrigeration piping systems.

Installation Notes

Installation is performed by a licensed plumber or EPA-certified HVAC refrigeration technician. Shut off and recover or isolate the refrigerant or fluid circuit before cutting into the line. Clean and flux all solder-cup surfaces thoroughly before applying heat; follow applicable IPC or IFGC code requirements for brazing materials when used in refrigerant service. Avoid overheating the fitting, as excess heat can damage adjacent components or compromise the joint.

Technical Specifications

• Fitting Type: Reducing Tee
• Connection Type: C x C x C (Solder Cup)
• Run Connection Size: 1-5/8 inches x 1-5/8 inches
• Branch Connection Size: 1-1/8 inches
• Material: Copper

Standard Information

• Brand: NDL INDUSTRIES
• Manufacturer Part Number: W4095
